2 channel car video recorder with CE/FCC/ROSH certification

Specifications

1. car video recorder
2. 2 channels motion detect
3. 2*32GB SD card memory
4. video up to 720*480/30fps
5. ce/fcc

Name: car video recorder

Main function:

1. Adopt Dual-core CPU, 2 channels motion detect, A/V record simutaneously

2. Support 2 SD card both up to 32GB, memory is stop when full or loop record

3. Support record once power on, prerecord & scheduled record

4. Video up to 720*480/30fps, clips duration:5min, 10 min or 20 min

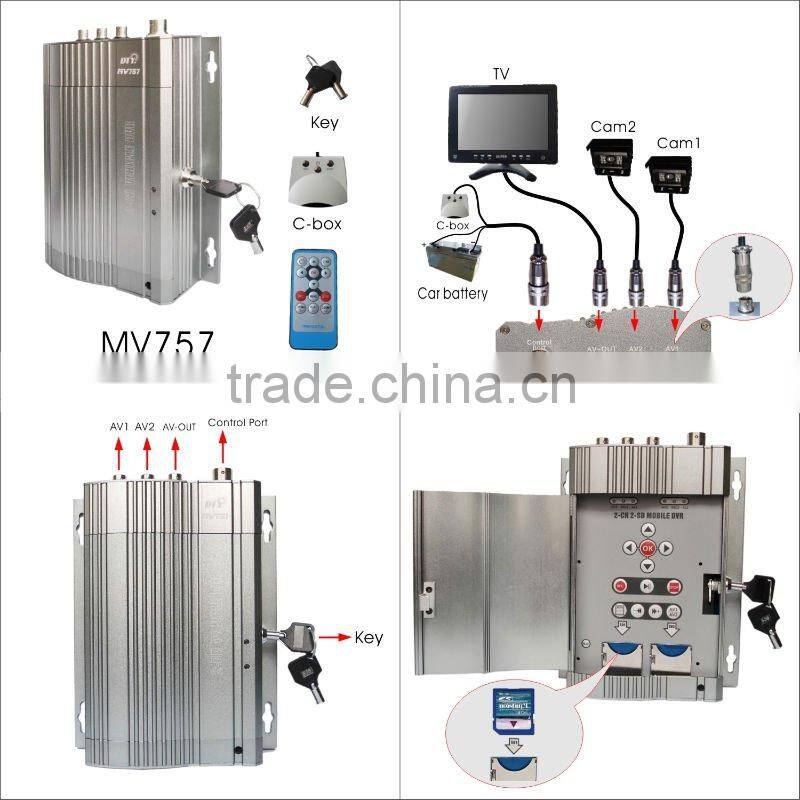

5. Can connect and power 2 CCD/CMOS cameras directly

6. C-box help driver operate DVR when DVR is placed in a concealed position

7. SD card and buttons are protected behind locked cove.



Parameters:

Products item No.	MV757
Working Voltage	DC12V-24V(suggest to use vehicle power adaptor)
Working Current	270mA (only mainframe)
Working Temprature	–10°C~+50°C
Power output	DV12V,1000mA
Working temperature	0 C~+50 C
Memory capacity	CH1 32GB SD card;CH2 32GB SD card
Video format	ASF
Resolution	D1/VGA/QVGA(Optional)
Frame rate	5FPS/10FPS/15FPS/30FPS(Optional)
Clip length	5min/10min/20min
Boot Record	ON/OFF
Video qualtiy	H/M/L
Pre.Record	5S/10S/OFF
Motion detection	ON/OFF
Compression format	MPEG-4
File save mode	Stop when full or loop record
Language	Chinese/English/portugues
Dimension	138mmX170mmX45mm
Net weight	1.1Kg
Other	Control box/IR remote

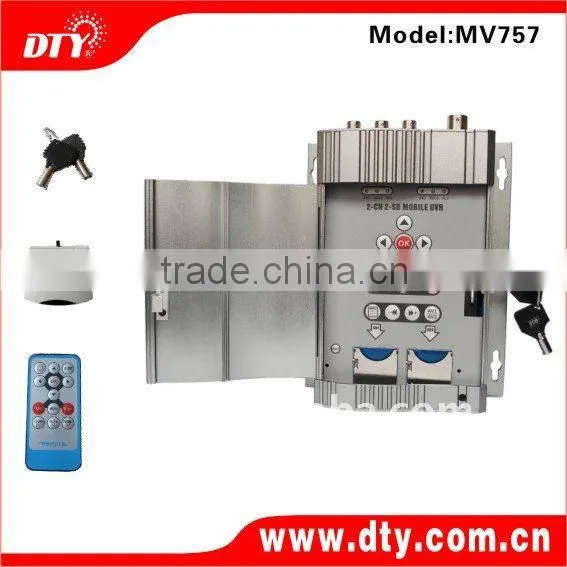

Packing List:

1. One DVR

2. One Power Cable

3. One Control Box

4. One AV Cable

5. Two AVP Cable

6. One Remote Control

7. One manual

8. Two key
