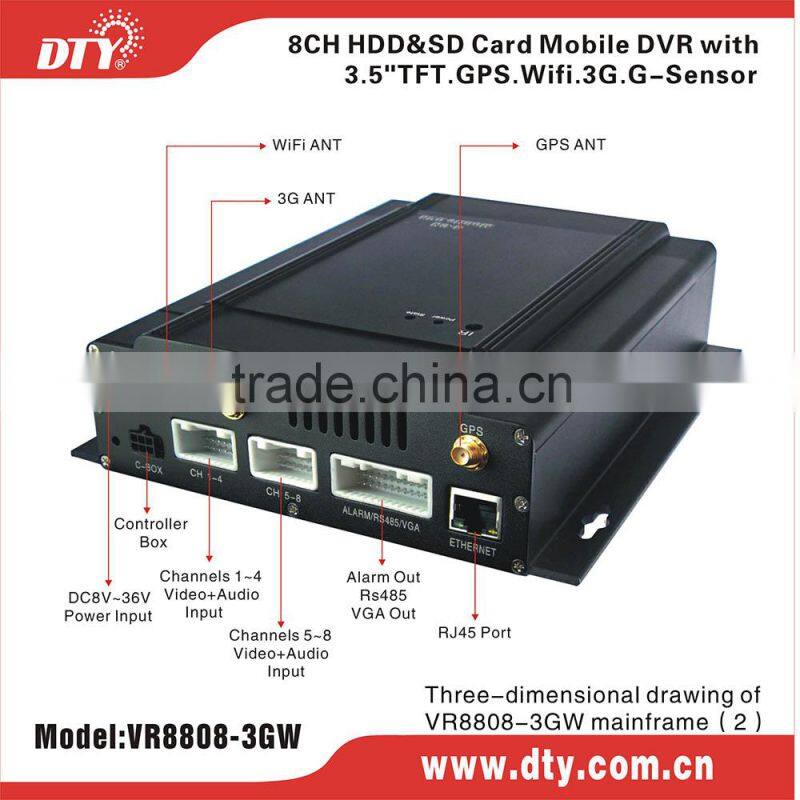

VR8808-3GW 8 Channel Remote Access Mobile Dvr Client Software Monitoring

Model

Function

VR8808N

Basic Model----8CH Full D1 Real Time Recorder

VR8808

VR8808N+3.5"TFT

VR8808G

VR8808N+3.5"TFT,+GPS

VR8808-3G

VR8808N+3.5"TFT,+GPS,+3G

VR8808-3GW

VR8808N+3.5"FTF,+GPS,+3G,+WIFI

Optional Function

+G-Sensor, Can Choose functions by yourself

Item Name

work power

DC8V-DC36V

work temperature

-10C to +50C

work humidity

15%-18%

supported

memory

1. hard disk up up to 2TB

2. SD card up to 64GB

*compressionformat

*video format

*record mode

*video resolution

H.264

H.264/AVI

motion detect /manual detect /schedule detect

D1/HD1/CIF/QCIF for each channel

*frame rate

*record signal

* TV standard

* file overwrite

1-25fps (PAL) or 1-30fps (NTSC) for each channel

8channel video &audio inputs

PAL or NTSC

optional

*compatiblecamera

*alarm in /out

*USB port

*VGA output

common CMOS and CCD camera

8 channel input / channel output

USB 2.0*2

supported

*mouse /IR mouse

*menu language

*dimension

* weight

supported

multiple language option

180mm( L )*50mm( W )*194mm ( H )

2.0kg

3G

supported

GPS/WIFI

Product  feature

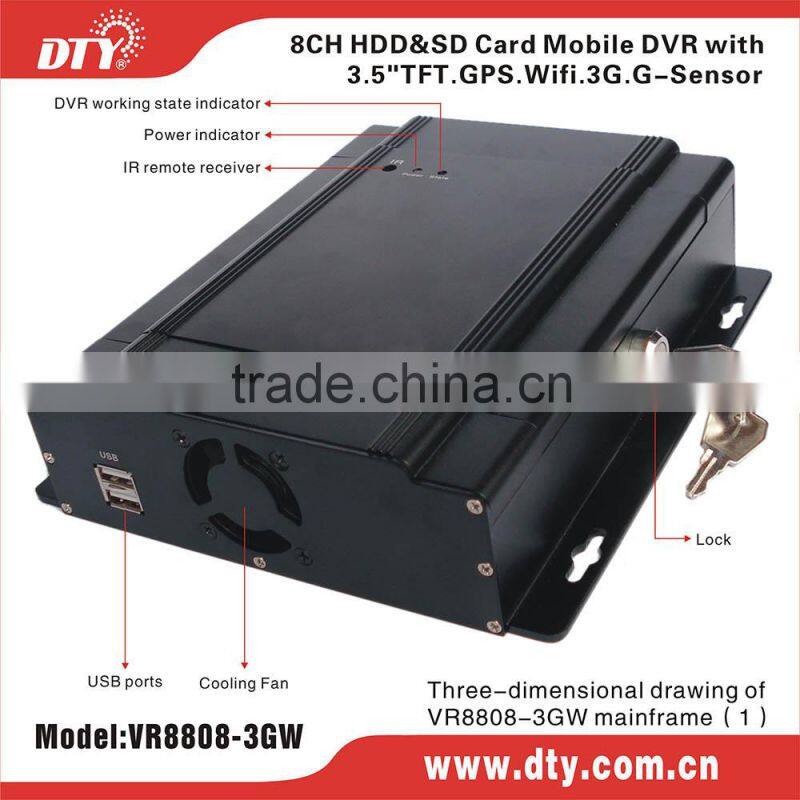

1. Unique design with lock to protect from illegal accessing;

2. H.264 main profile Video compression format;

3. Can work with power supply ranging from DC8V to DC36V;

4. Supports Manual Record, Motion Detect and scheduled Record;

5. Video resolution: D1/HD1/CIF/QCIF selectable for each channel; frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;

6. Supports 8 channels "Video & Audio" recording and playback simultaneously;

7. Supports 4 "alarm input" 1 "alarm output";

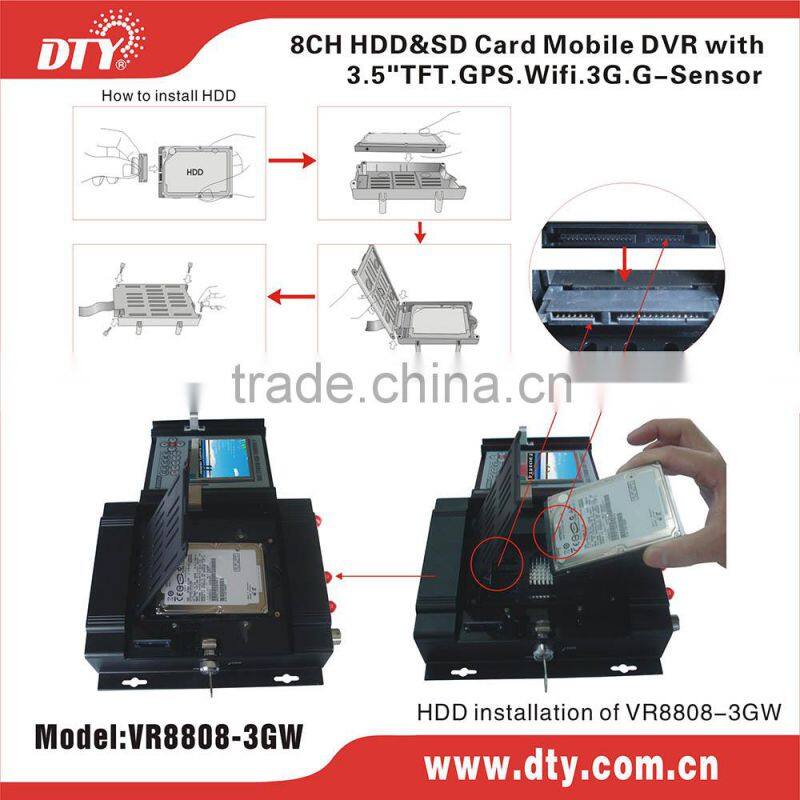

8. Video clips can be saved onto either SD card or HDD;

9.Supports SD card up to 64GB and hard disk up to 2TB;

10. Video file can be backed up in format H.264 or AVI;

11. Supports VGA high definition video/audio output;

12. Supports Mouse & IR remote control for easy operation;

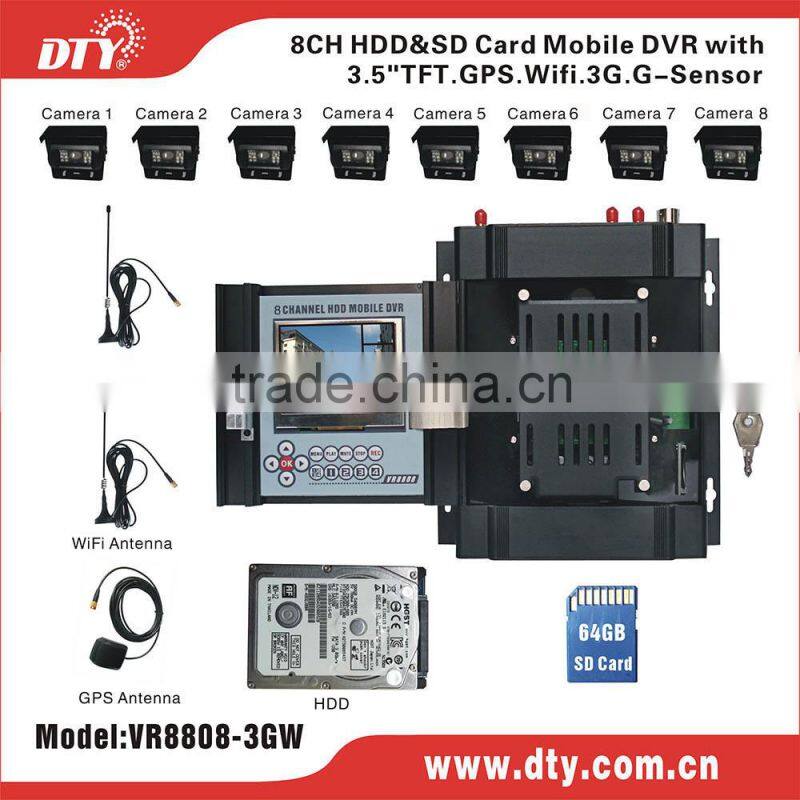

13. Can work with 8 cameras simultaneously;

14. With GPS function, records video with GPS data and shows the location when playing the recorded video;

15. Supports real-time remote monitoring via 3G network and wifi;

16. Multiple language options, covers almost all main languages all over the world.
