Product Details
Place of Origin: | Guangdong, China | Brand Name: | DTY / OEM | Model Number: | W720/W720R |
Product Description

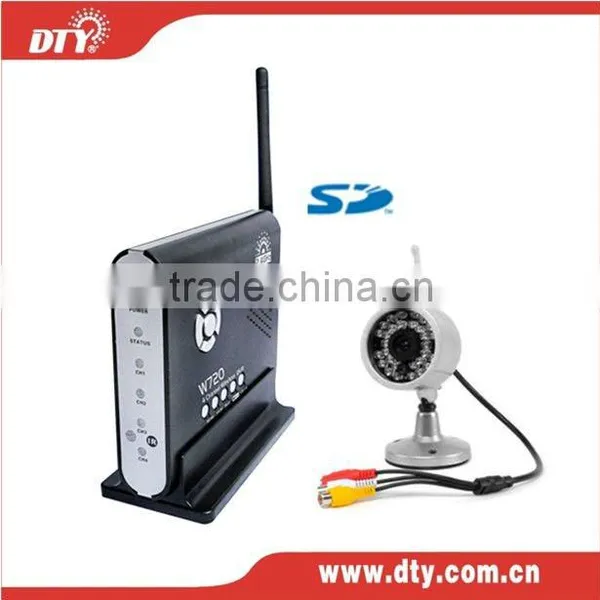

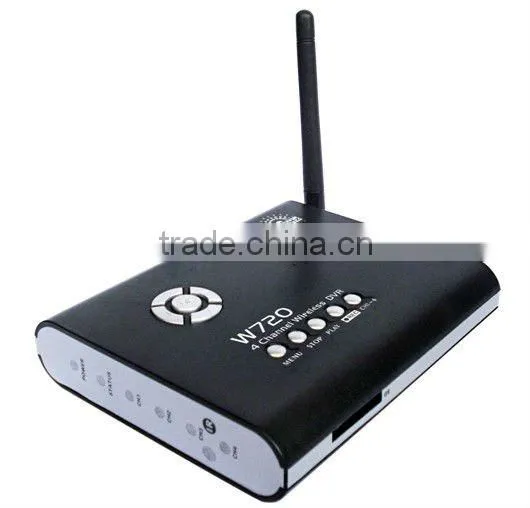

2.4GHZ Wireless DVR Kit -W720 New
Features
This 2.4GHz wireless DVR Kit is packed with advanced features that are normally only seen on very professional CCTV DVRs such as Scheduled Record, Motion Detection withPre-Record and a Maximum recording Frame-Rate of 30FPS. W720 supports full D1resolution recording, and high capacity SD card up to 32GB. It works well with either wired CCTV camera or 2.4GHz wireless cameras, supports with both PAL andNTSC TV Standards, and is an ideal security surveillance solution for your car,your shop, your home, your office, your garden, and many more.
- 4 Wireless Channels, 1 Wired Channel Input - Up to 4 Wireless 2.4GHzcameras can be used with this Mini DVR and 1 CCTV camera can be directlyplugged in via the AV-In plug on the unit. It can also power 1 wired cameradirectly!
- Automatic Wireless Channel Switching - You can set the DVR toautomatically switch between the 4 wireless channels while recording.Alternatively (and the most common set up) you can set the channel manually torecord 1 camera.
- 3 Recording Modes - Manual Record, Motion Detection and scheduled Record. This givesyou the ultimate flexibility in setup.
- Audio & Video Recording Simultaneously - Able to record 1 channelvideo & audio simultaneously.
- Adjustable Pre-Record Feature - 5 or 10 second pre-record options make sureyou never miss a moment!
- Boot Recording - Allows instant recording from power up in an emergency.
- High Resolution D1 Recording - 720*480@30FPS for amazing quality!
- 32GB SD Card Supported - With automatic overwrite function.
- Footage Date/Time Stamping - Recorded footage and pictures can have thedate and time displayed on them.
- Fine Tunable Motion Sensing - The motion detection record mode can be finetuned by use of the "Zoning" Feature and sensitivity parameter.
- NTSC and PAL Compatible - Works with both UK and US TV standards.
- Easy Menu System - Easy to setup, operate and maintain.
- Multiple Language Options - English, Portuguese and Chinese optional.
Technical Specifications
a. DVR
Work Power | DC 12V, 400mA |
Work Temperature | -10C to +50C |
Work Humidity | 15%-80% |
Maximum Memory | 32 GB |
Compression Format | MPEG4 |
Video Format | ASF |
Record mode | Motion detect/ Manual Record/ Scheduled Record |
Video clip Length | Manual record: 5min/ 10min/ 20min |
Motion Detection | 20 seconds |
Boot Record | Yes/no |
Pre Event Record | 5seconds/10seconds/off |
Record quality | 3 rating adjustable |
Video Resolution | 720*480/640*480/320*240 |
Frame Rate | 5FPS/10FPS/15FPS/30FPS |
Video Input | 1 wired and 4 wireless channels |
Record signal | 1 channel video & audio |
Video Output | 1 channel video & audio |
TV Standard | PAL and NTSC |
File Overwrite | Optional |
Compatible camera | Common CMOS & CCD camera |
Dimensions | 130*107*26mm |
Menu Language | English/Portuguese/Chinese |
Validity Pixel | PAL: 628(H) x 582(V) / NTSC: 510(H) x 492(V) |
Image Device | 1/3" OmnVision CMOS |
Horizontal Definition | 380TV Lines |
Angular Field of View | 45 degree (f=6mm) |
Minimum Illumination | 0 Lux |
Scanning Frequency(H) | 15.625KHz (PAL)/ 15.734KHz (NTSC) |
Scanning Frequency(V) | 50Hz (PAL)/ 60Hz (NTSC) |
Power Adapter | DC12V/500mA |
Dimension | 57mm(diameter),68mm(length) |
Weight | 180g |
- Indoor surveillance for villa, home, school, department, store, supermarket, etc.
- Vehicle surveillance for bus, taxi, private car, school bus, etc.
