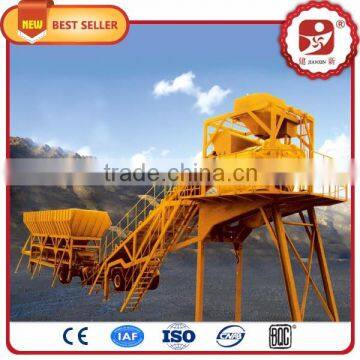

25-100 stere capacity mobile cement concrete mixing plant
YHZS35 Mobile concrete mixing plant concrete mixing station is material storage materials, weighing, conveying, mixing, unloading and automatic control system as a whole to focus on concrete production equipment a trailer unit, it fixed all automatic mixing station course of action, operation, maintenance and repair are identical, along with mobile and flexible, quick and easy disassembly, easy to store management and other unique features, the construction project is moving public railways, bridges, ports, utilities and other Best GRF machine type. The biggest bright spot, is easy to install, easy to move, pull away, a stop that is used, and stirred excellent performance, accurate and stable measurement system.
Advantage
1. Compact design, fast installation and easy handling.
2. Mixer linings are cast steel wear resistant Mn alloyed.
3. Low maintenance cost but high work efficient.
4. 7/24 Online services for all Jianxin’s products.
5. Conformity with CE (Europe), GOST-R (Russia) standards.
No. |
Item |
Unit |
Performance Parameters |
1 |
Production capacity |
m 3 / h |
35 |
2 |
Total power (not including screw conveyor) |
k W |
60 |
3 |
Gross weight |
T |
20 |
4 |
Maximum aggregate size |
mm |
60 |
5 |
Aggregate weighing accuracy |
% |
± 2 |
6 |
Aggregate weighing range |
k g |
0 ~ 2400 |
7 |
Powder weighing accuracy |
% |
± 1 |
8 |
Powder weighing range |
k g |
0 ~ 500 |
9 |
Water weighing accuracy |
% |
± 1 |
10 |
Water weighing range |
k g |
0-250 |
11 |
Additives weighing accuracy |
% |
± 1 |
12 |
Supply pressure |
MPa |
0.6 |
13 |
Area |
m 2 |
30 × 2.2 |
14 |
Speed trailer |
km / h |
15 |
15 |
Control the formation of |
|
Controls / Manual |
We have the following services:
1. installation, debugging, operators trainning;
2. maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete plants;
D. If needed, we will send engineers to your site to solve your problems.
3. providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4. lifetime spare parts support.
