Product Details
| Place of Origin: | Guangdong, China | Brand Name: | DTY | Model Number: | H40-3GW |
Product Description
embeded linux 4ch 4g wifi h.264 mobile dvr with gps tracker
Overview

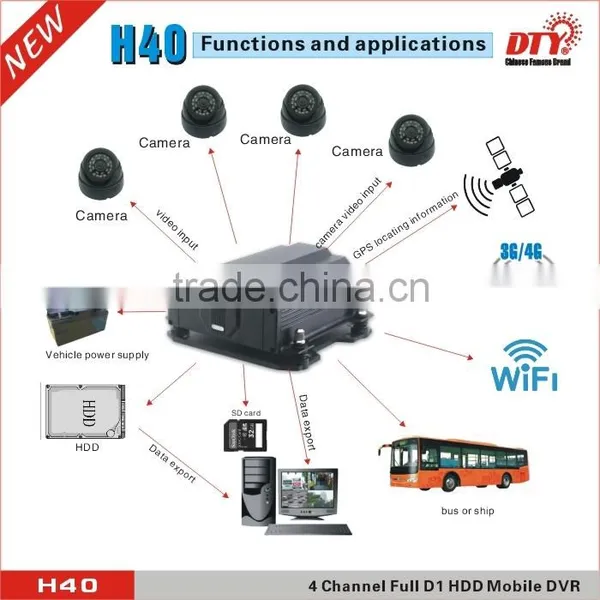

H40 vehicle dvr with ethernet port is a professional,rugged,solid state DVR designed for in-vehicle recording. H40 records up to 4 channel video and audio location data prom built-in GPS(optional). It supports dual SD cards up to 256GB and one HDD up to 4TB for memory storage. And it also supports extensible function such as GPS,WIFI,3G,4G, ect.. H40 series can work with all CCD/CMOS cameras, and can power 4 cameras directly. It is a new in-vehicle recording system that you can rely on.
Application
H40 Full D1 Mobile DVR main apply for taxi, bus ,school bus, private car, police car, truck, special passage car, ship, in-public place.
Features
(1) H.264 main profile Video compression format.
(2) Can work with power supply ranging from DC8V to DC36V.
(3) Supports Manual Record, Alarm record and Scheduled Record.
(4) Video resolution: D1/HD1/CIF/QCIF selectable for each channel. Frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel.
(5) Supports 4 channel full D1 recording and playback simultaneously.
(6) Supports two SD Card each up to 128GB, or 2.5’’ SATA II 4TB (Max) HDD, cycle recording.
(7) Supports 6 alarm input and 2 alarm output.
(8) With power-off delay to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs.
(9) Support DC12V, 3A power out, can power 4 cameras directly.
(10) Equiped with external HDD interface,can connect an external HDD.
(11) Support 2 PTZ control interface.
(12) Support GPS,Wifi,3G/4G.
(13) Certificate: CE,FCC,RoHS.
Specification and Technical Parameter | |||
Model | H40 series | ||
CPU | Hisilicon | ||
Basic Functions | REC,PLAYBACK,ALARM,VGA,USB,IR,SD,TV—OUT,etc. | ||
Optional Functions | GPS | Wi-Fi | 3G/4G |
Power Supply | Car battery(For mobile monitoring)/Power adapter(For other applications) | ||
Power input | DC12V~DC36V(Standard power input:DC12V OR DC24V,ultimate power input:DC8V~DC38V) | ||
Working Current | 250~380±10mA(the reference voltage is:DC24V) | ||
Power output | DC12V/3A(Provide power for cameras,with built in re-settable fuses.) | ||
Working temperature | -10℃~+50℃(ultimate working temperature:-20℃~+60℃) | ||
Video Technology | H.264(Data encryption,need to use the playback software to play the videos) | ||
Storage interface | Standard SATA II HDD interface, SD / SDHC Card | ||
Storage Capacity | 2.5’’ SATA II 4TB HDD,two 128GB SD/SDHC Card(suggest to use the SD Card with the speed over Class10) | ||
Storage mode | Stop when ful l or cycle recording | ||
Camera | Any CCD or CMOS | ||
Video Standard | PAL system or NTSC system | ||
Video Input | Standard:input frequency:Vp-p=1.0V,input impedance:75Ω | ||
Resolution | 4ch full D1full real time synchronized recording,also support playback and upload in the process of recording. | ||
Total frame rate | PAL(1~100FPS optional)and NTSC(1~120FPS optional) | ||
Video quality | Main stream/Extra Stream mufti-grade adjustable | ||
Output signal | CVBS(4ch video + 4ch audio,but only support 1ch audio output at a same time) | ||
Ethernet Port | One 10M/100M Ethernet port (Rj45) | ||
Alarm input | 6ch independent alarm input port( with isolating function) | ||
Alarm output | 2ch independent relay alarm output(4ch model has two red alarm indicators) | ||
USB Standard | 2 USB 2.0 port(support USB back up and system upgrade) | ||
3G/4G | Support 4CH D1 real time video and audio transmission, including GPS info. | ||
Indicator light | PWR indicator,RUN indicator ,REC indicator | ||
Delay power offtime | Default 1 minute(can be customized ) | ||
GPS Technology | Support the standard GPS protocol(NMEA-0183) set by NMEA | ||
Other Technology | RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position | ||
Environment requirement | Protect against dust,damp and wet. | ||
Waterproofness | Non-watertight | ||
Application | Suitable for all kinds of vehicles and fixed locations | ||
Mainframe Size | 152(Length)*147(Width)*56(Height)mm | ||
Mainframe Weight | About 560g | ||
