8 channel full d1 3g hdd bus truck car taxi dvr with gps tracker

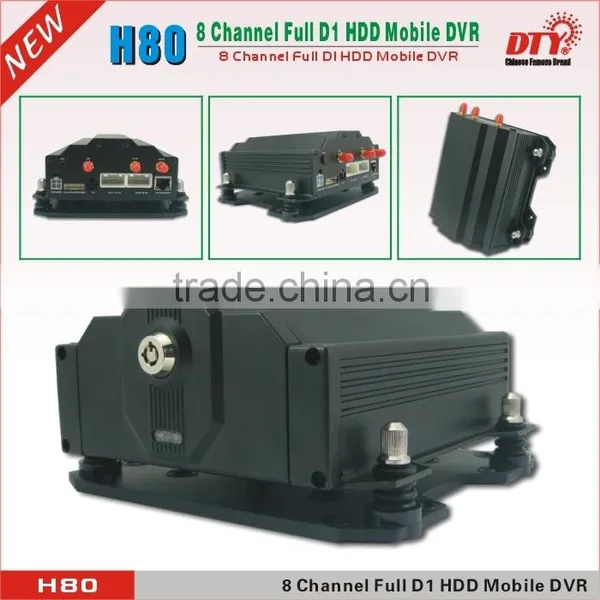

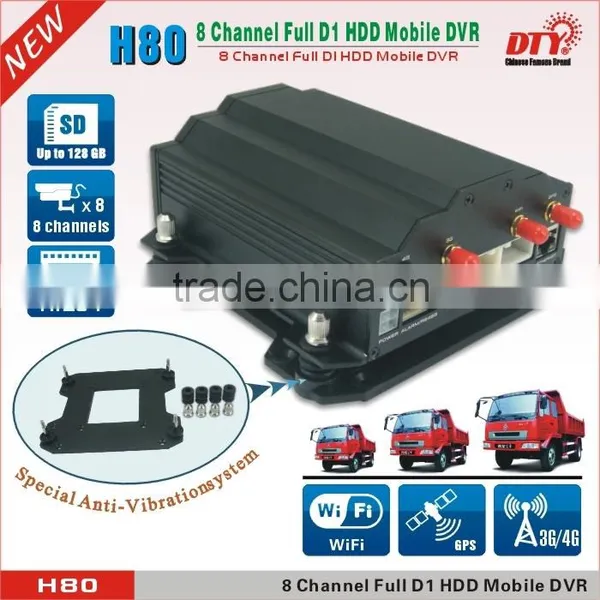

H80 is a professional, rugged, solid state DVR designed for in-vehicle recording. H80 records up to 8 channels Video and Audio, location data from built-in GPS (optional), supports up to dual SD cards up to 256GB for memory storage, Supports extensible functions including GPS, Wi-Fi, 3G, 4G, Supports to connect external SATA HDD via the HDD extensible cable. H80 can work with all CCD/CMOS cameras, and can power 8 cameras directly, it is a new in-vehicle recording system that you can rely on.
01. H.264 main profile Video compression format;
02. Can work with power supply ranging from DC8V to DC36V;
03. Supports Manual Record, Alarm record,and scheduled Record;
04. Video resolution: D1/HD1/CIF/QCIF select-able for each channel; frame rate: 1-25fps(PAL) or 1-30fps (NTSC) for each Channel;
05. Supports 8 channels "Video & Audio" recording and playback simultaneously;
06. Supports 6 channels "alarm input" and 2 channel "alarm output";
07. Video clips can be saved onto dual SD cards both up to 128GB;
08. Video file can be backed up in H.264 or AVI format; and can be played back with specialized player on PC
09. With "Power-off delay" function to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs;
10. Support DC12V, 6A power out, can power 8 cameras directly.

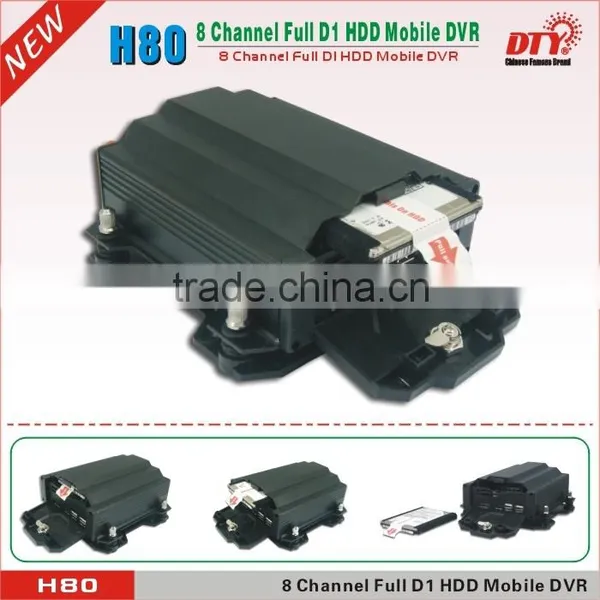

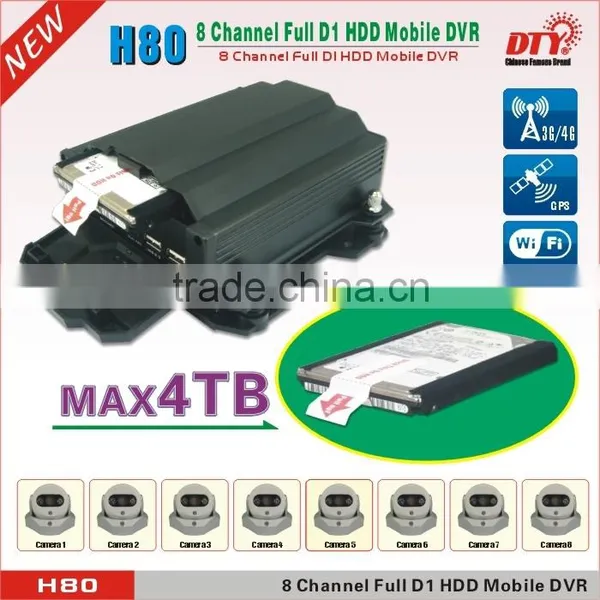

11. Equiped with built-in HDD slot,can insert HDD up to 4TB.
12. Support 2 PTZ control interface(only for 4ch model)
| Specifications: | ||||||
| Model | H80 | |||||
| CPU | Hi silicon | |||||
| Basic Functions | REC,PLAYBACK,ALARM,VGA,USB,IR,HDD,SD,TV-OUT ,etc. | |||||
| Optional Functions | GPS | Wi-Fi | 3G/4G | |||
| Power Supply | Car battery(For mobile monitoring)/Power adapter(For other applications) | |||||
| Power | DC12V~DC36V(Standard power input:DC12V OR DC24V,ultimate power input:DC8V~DC38V) | |||||
| input | ||||||
| Working Current | 250~380±10 mA (the reference voltage is: DC24V) | |||||
| Power | 4CH | DC12V/3A | (Provide power for cameras,with built in re-settable fuses.) | |||
| output | 8CH | DC12V/6A | ||||
| Working temperature | - 10℃~ + 50℃ (ultimate working temperature: - 20℃~ + 60℃) | |||||
| Video Technology | H.264(Data encryption,need to use the playback software to play the videos) | |||||
| Storage interface | SATA Standard HDD interface, SD/SDHC Card | |||||
| Storage | 256GB SD/SDHC Card(two 128GB SD Card, suggest to use the SD Card | |||||
| Capacity | @ Class10 or above), support to connect external 2.5" SATA 4TB HDD | |||||
| Storage mode | Stop when full or cycle recording | |||||
| Camera | Any CCD or CMOS | |||||
| Video Standard | PAL system or NTSC system | |||||
| Video Input | Standard:input frequency:Vp-p=1.0V,input impedance:75Ω | |||||
| Resolution | 4ch full D1 or 8ch full D1 ull real time synchronized recording, also support playback and upload in the process of recording. | |||||
| Total Frame rate | 4CH | PAL(1~100FPS optional)and NTSC(1~120FPS optional) | ||||
| 8CH | PAL(1~200FPS optional)and NTSC(1~240FPS optional) | |||||
| Video quality | Main stream/Extra Stream mufti-grade adjustable | |||||
| Output signal | 4CH | CVBS (4ch video + 4ch audio,only support 1ch audio output at a same time) | ||||
| 8CH | CVBS(8ch video + 8ch audio only support 1ch audio output at a same time) | |||||
| Ethernet Port | One 10M/100M Ethernet port (RJ45), Support 1ch IPC input in special circumstances | |||||
| Alarm input | 6ch independent alarm input port( with isolating function) | |||||
| Alarm output | 2ch independent relay alarm output(4ch model has two red alarm indicators) | |||||
| USB Standard | 2 USB 2.0 port(support USB mouse/keyboard operation) | |||||
| Delay power off | Delay duration :1minutes (default), we can OEM the delay duration. | |||||
| 3G/4G | Support 8CH D1 real time video and audio transmission, including GPS info. | |||||
| Other Technology | RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position | |||||

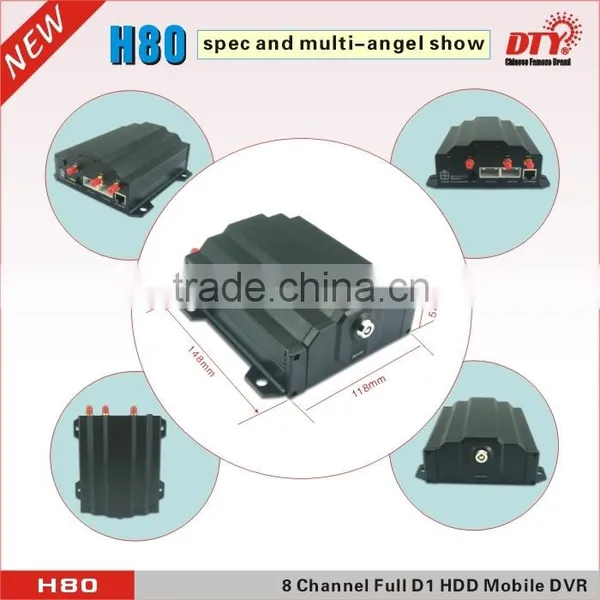

| Mainframe Size | 143(Length)*118(Width)*55.5(Height)mm | |||||
| Mainframe Weight | About 500g | |||||
