Product Details
| Place of Origin: | Guangdong, China | Brand Name: | DTY | Model Number: | S204-3GW |
Product Description

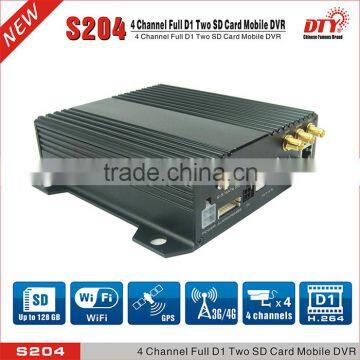

4CH full D1 WIFI 3G Car DVR with GPS tracker CMS free software
S204 bus cctv gps system is a professional, rugged, solid state DVR desined for in-vehicle recording.S204 records up to 4 channel video and audio location data from built-in GPS(optional). It supports dual SD cards up to 256GB for monery storage. And it also supports optional fuction such as GPS, WIFI, 3G, 4G, G-sensor, ect. S204 series can work with all CCD/CMOS cameras, and can power 4 cameras directly. It is a new in-vehicle recording system that you can rely on.
Application
Taxi, bus, school bus, private car, police car, truck, special passage car, ship, in-public place.
Shipping
We have strong cooperation with DHL, UPS, FEDEX, EMS, TNT.
You can also choose your own shipping forwarder.
Features
(1) H.264 Video compression format.
(2) Supports Manual Record, Alarm record and Scheduled Record.
(3) Video resolution: D1/HD1/CIF/QCIF selectable for each channel.
(4) Frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel.
(5) Supports 4 channels full D1 recording and playback simultaneously.
(6) Supports two SD cards, each SD Card up to 128GB, cycle recording.
(7) Supports 6 alarm input and 2 alarm output.
(8) Power-off delay to guarantee the DVR would shut down normally to keep recorded files safe when an emergency occurs.
(9) Support DC12V, 3A power out, can power 4 cameras directly.
(10) Equiped with external HDD interface,can connect an external HDD.
(11) Support 2 PTZ control interface.
(12) Support GPS,Wifi,3G/4G
(13) Certificate:CE, FCC, RoHS.
Models
Model | Descriptions | ||||
S204 | Basic model(basic functions such as REC,PLAYBACK,ALARM,VGA,USB,IR,HDD,SD,TV-OUT,etc.) | ||||
S204G | Basic model + GPS | ||||
S204W | Basic model + WIFI | ||||
S204-3G | Basic model + 3G | ||||
S204-4G | Basic model + 4G | ||||
S204-GW | Basic model + GPS + WIFI | ||||
S204-3GW | Basic model + GPS + WIFI + 3G | ||||
S204-4GW | Basic model + GPS + WIFI + 4G | ||||
Power Supply | Car battery(For mobile monitoring)/Power adapter(For other applications) | |||||
Power input | DC12V~DC36V(Standard power input:DC12V~DC24V, ultimate power input: DC8V~DC38V) | |||||
Power output | DC12V/3A | Provide power for cameras,with built in re-settable fuses. | ||||
Working Current | 250~380 ±10 mA (the reference voltage is:DC24V) | |||||
Working temperature | - 10℃~ + 50℃(ultimate working temperature: - 20℃~ + 60℃) | |||||
Storage interface | Standard SATA II HDD interface, SD / SDHC Card | |||||
Storage Capacity | 2.5’’ SATA II 4TB HDD,2*128GB SD/SDHC Card(suggest to use the SD Card with the speed over Class10) | |||||
Storage mode | stop when full or cycle recording | |||||
Camera | CCD/CMOS | |||||
Video Technology | H.264(Data encryption, need to use the playback software to play the videos) | |||||
Video Standard | PAL system or NTSC system | |||||
Video input | Input standard: input frequency: Vp-p=1.0V,input impedance: 75Ù | |||||
Resolution | 4ch D1 full real time recording, also support the playback function while recording. | |||||
Total frame rate | PAL(1~100FPS optional)and NTSC(1~120FPS optional) | |||||
Video quality | Main stream/Extra Stream mufti-grade adjustable | |||||
Output signal | CVBS(4ch video + 4ch audio,but only support 1ch audio output at a same time) | |||||
Ethernet Port | One 10M/100M Ethernet port (RJ45) | |||||
Alarm input | 6ch independent alarm input port (with isolating function) | |||||
Alarm output | 2ch independent alarm output port.(4 ch DVR has two red indicator light display alarm output state.) | |||||
USB Standard | 2 USB 2.0 port(support USB back up and system upgrade) | |||||
Delay power off | Delay duration :1minutes (default), we can OEM the delay duration. | |||||
3G/4G | Support 4CH D1 real time video and audio transmission, including GPS info. | |||||
Other technology | RS485(for PIZ connection), 2.4G WIFI , GPS(NMEA-0183) Timing and position | |||||
DVR dimension | 146(Length)*138(Width)*40(Height)mm | |||||
mainframe weight | Around 500g | |||||
1.Any inquiries will be replied within 24hours
2.OEM available:
1)Customized logo or color box
2)Any your idea on camera, we can help you to design and put it into production
3.After-sale service:
1) All products will have been strictly Quality checked in workshop before packing
2) All products will be well packed before shipping.
3) All our products have 1 year warranty, and we are sure our products will be free from maintenance
within warranty period in general.
4.Payment:
You can pay for the order via: T/T,Western Union/MoneyGram,paypal
