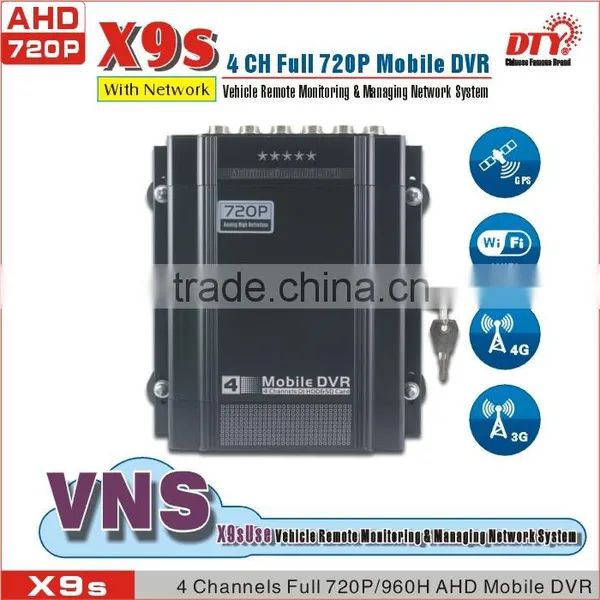

car camera AHD dvr 4 Channel,4TB HDD Ahd Mdvr , Car Dvr For Bus And Taxi with PC/IOS/Android software, X9s

FOB Price

USD $133 - $270 / Piece

1 Piece(Min.Order)

Supply Ability 4000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

DTY

Model Number:

X9s series

Product Description

car camera AHD dvr 4 Channel,4TB HDD Ahd Mdvr , Car Dvr For Bus And Taxi with PC/IOS/Android software,X9s

Product Description

Model: X9s

Overview

The X9s is a professional, rugged, solid state DVR designed for in-vehicle recording. X9s DVR adopts H.264 compression format, records up to 4 channels video and audio at the same time, supports hard disk up to 4TB as well as SD Card up to 128GB for saving video clips. The video resolution is up to 720P each channel, and the frame rate is up to 30fps (PAL).

X9s Series Guide

Model	Function
X9s	Basic Model----4CH Full AHD Real Time Recorder
X9s-G	X9s+GPS+ RJ45
X9s-GW	X9s+GPS+WIFI+ RJ45
X9s-3G	X9s+GPS+3G+ RJ45
X9s-4G	X9s+GPS+4G+ RJ45
X9s-3GW	X9s+GPS+3G+ WIFI+RJ45
X9s-4GW	X9s+GPS+4G+ WIFI+RJ45

Features

1.The hardcore adopts ARM11 (main frequency 600 MHZ) professional high-performance processor, equipped with 2 gbit (256 MB) high-speed DDR3 RAM;
2.Supports 4CH AHD (Analog High Definition)720P video recording, downward compatibility 960H,D1, VGA,HD1 and CIF video recording;
3.Adopts h.264MP (Main Profile Level5.0) video compression technology,which will save two-
third storage capacity;
4.Supports GPS and automatically update date/time.Can use Google map to track the moving path when playback videoes or remotely monitor on PC;
5.Supports RJ45/2.4G WIFI/ 3G / 4G, will provide matching network server platform to realize the remote centralized monitoring management.
6.Supports a 2.5 inch SATA standard 4TB large-capacity hard disk and a 128GB SD/SDHC/SDXC CARD;
7.Supports power off delay after ACC+ is disconnect, the power off delay time
will be optional according to the range: 0~999(minute)
8.Supports CVBS and VGA output at the same time, will be easily for user to monitor on large LCD screen .
9.Supports 4CH alarm input and 1CH alarm output ;
10.Supports RS485 communication,support multiple PTZ device to access;
11.Supports operate system and configurate parameter by using USB mouse ;
12.Supports boot record, timing record, cyclic covering;
13.Supports user-defined channel name and device ID/plate number to make use,maintenance and management more easier ;
14.Provide camera power supply with PPTC protect and adopts fan convection cooling system design at the same time to guarantee the stability of system operation.

Technical parameters :

X9s Specification and Technical Parameter
Model No.	X9s-GW	Equip with basic function + GPS + RJ45 + WIFI
	X9s-3G	Equip with basic function + GPS + RJ45 + 3G
	X9s-4G	Equip with basic function + GPS + RJ45 + 4G(7 modes full Netcom)
	X9s-3GW	Equip with basic function + GPS + RJ45 + WIFI + 3G
	X9s-4GW	Equip with basic function + GPS + RJ45 + WIFI + 4G(7 modes full Netcom)
Power supply mode	Vehicle battery(mobile monitoring platform)/power adapter(other monitoring platform)
Input	DC12V~DC36V(typical input voltage: DC12V / DC24V, limited input voltage: DC10V~38V)
Working current	Product model No.	Corresponding current when reference voltage is DC24V
	X9s-GW	450 ±10 mA
	X9s-3G	480 ±10 mA
	X9s-4G	500 ±10 mA
	X9s-3GW	520 ±10 mA
	X9s-4GW	540 ±10 mA
Output	DC12V/3A(supply power to cameras video input devices, built-in PPTC protection function)
Working temperature	- 10℃~ + 50℃ (limited working temperature: - 20℃~ + 60℃)
cameras	AHD_M HD standard 720P (1280720)/100 mega pixels or 960P (1280960)/130 mega pixels / AHD _L standard 960H (960540)/normal D1(720576/normal VGA (640*480))
Video standard	PAL/NTSC (all channels have to use same standard cameras signal input)
Video input	Input standard: input amplitude Vp-p=1.0V, input impedance 75Ω
resolution	720P /960H /D1 /Half D1 /CIF
Video frame rate	PAL(1~100FPS optional)and NTSC(1~120FPS optional)
video quality	Multi-grade adjustable
Video compression	H.264
Storage mode	Boot record, schedule record, cycle cover
Video clip	3 minutes/5 minutes /10 minutes /15 minutes /30 minutes /45 minutes /60 minutes /90 minutes /120v
Storage interface	SATA HDD interface,SD card and USB device(U disk/USB mobile HDD etc)
Storage capacity	2.5” SATA 4TB HDD/SDD,128GB SD/SDHC/SDXC(advise to use Class10 and above SD card)
Output signal	CVBS composite audio video signal (4 channel video + 4 channel audio)/VGA
Network interface	1 x 10M/100M Ethernet interface(RJ45)
Alarm input	4 channel isolated alarm input interface (with isolation function)
Alarm output	1 channel isolated relay input interface (with isolation function)
USB standard	2xUSB 2.0 standard interface(support USB mouse,USB backup and system upgrade)
IR receive	1 IR receive terminal(next to USB interface, belong to reversed IR remote control interface)
Indicator	PWR indicator,RUN indicator,REC indicator,GPS indicator,3G/4G indicator
Delay power off	Delay power off, cooperation with ACC+ control wire, can set the time: 0 ~ 999 minutes
GPS technology	Support NMEA-0183 GPS protocol
WIFI	2.4G 150Mbps IEEE 802.11 b/g/n WIFI
3G	WCDMA,CDMA2000 and TD-SCDMA
4G	FDD-LTE and TDD-LTE
Other	RS485(PTZ),RS232(reserved)
Other design	Built-in SD card, built-in SIM card, built-in HDD, built-in clock battery and support users change design, cooling fan convection design, aviation connection design, ACC+ control wire design
Mainframe side	210(L)180(W)50(H)mm
Mainframe weight	Approx 980g

Product show :

How to install HDD

How to mount DVR

Packaging & Shipping

Packing List

We have strong cooperation with DHL, UPS, FEDEX, EMS, TNT

You also can choose your own shipping forwarder

Our Services

1.Any inquiries will be replied within 24hours
2.Professional manuafacurer for almost 18 years.
3.OEM available:
1)Customized logo or color box
2)Any your idea on dvr, we can help you to design and put it into production
4.High quality, fashion design, reasonable&competitive price, fast lead time
5.After-sale service:
1) All products will have been strictly Quality checked in workshop before packing
2) All products will be well packed before shipping.
3) All our products have 1 year warranty, and we are sure our products will be free from maintenance
within warranty period in general.
6.Fast delivery:
7.Payment:
You can pay for the order via: T/T,Western Union/MoneyGram,paypal
