Specifications
1.Supports VGA&CVBS signal2.4 channel realtime recording dvr
3.h.264 compression format
4.Supports hard disk up to 4TB
DTY VR8800G rugged h.264 gps function d1internal lcd overwrite 4 channel usb 2.0 dvr

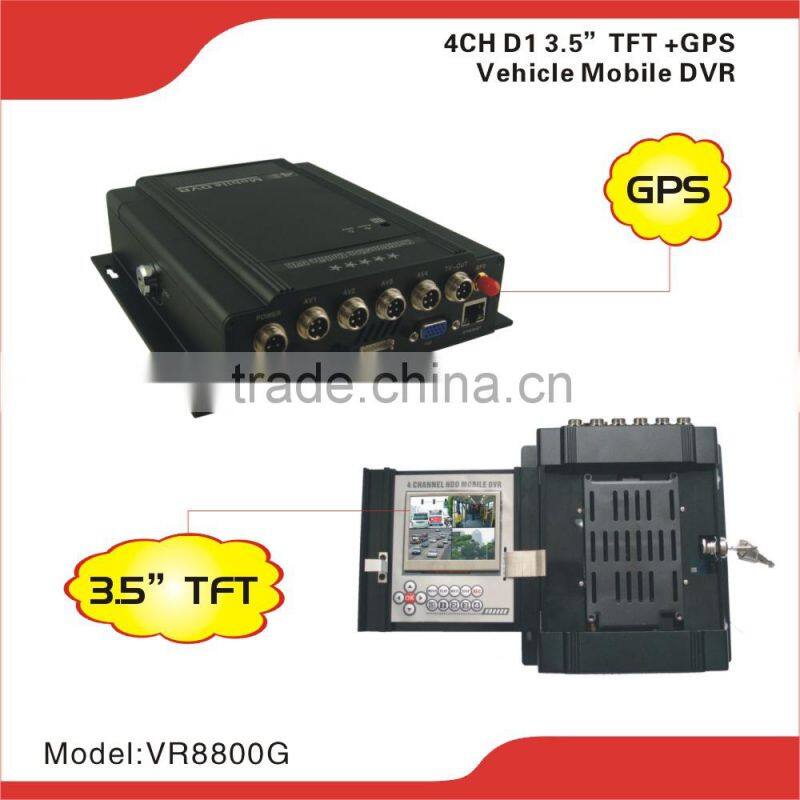

Model:VR8800G(VR8800N+3.5"TFT+GPS)
Overview
The VR8800G is a professional, rugged, solid state DVR designed for in-vehicle recording. VR8800G DVR adopts H.264 compression format, records up to 4 channels video and audio at the same time, supports hard disk up to 4TB as well as SD Card up to 64GB for saving video clips. The video resolution is up to D1 each channel, and the frame rate is up to 30fps (PAL). VR8800G works with all CCD/CMOS cameras; it is a new in-vehicle recording system that you can rely on.
VR8800 Series Guide
Model |
Function |
VR8800N |
Basic Model----4CH Full D1 Real Time Recorder |
VR8800 |
VR8800N+3.5"TFT |
VR8800G |
VR8800N+3.5"TFT+GPS |
VR8800-3G |
VR8800N+3.5"TFT,+GPS,+3G |
VR8800W |
VR8800N+3.5"TFT,+WIFI |

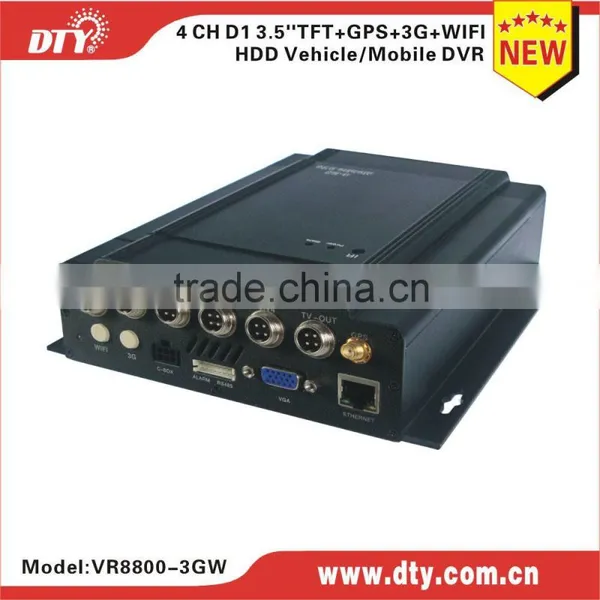

VR8800-3GW |
VR8800N+3.5"TFT,+GPS,+3G+WIFI |
Technical Parameters
Model VR8800G
Working Voltage DC 12-36 V (DC 14-36 V when connected with cameras)
Maximum Current ≤2.5 A
Output Voltage (for camera) DC12 V
Power Supply Car battery
Maximum Memory Capacity 4TB & 64GB SD card
Compression File Format H.264
Record Switch Continuous record or motion detect
Record mode Motion detect, scheduled record and boot record
Record Quality D1 per channel
Resolution D1 (PAL 720*576, NTSC 720*480)
Frame Rate PAL (1~100fps) NTSC (1~120fps)
Record AV in signal 4 CH video+4 CH audio
File Store Mode Overwrite when full or stop when full
Alarm Input/Output 4 alarm input & 2 alarm output
Internet Interface One 10M/100M RJ45
HDD Interface One 2.5″SATA HDD interface
Compatible camera Common CMOS & CCD
Dimension 210mm*180mm*50mm
Net weight 950G
Features
1. Metal design, with cooling fan to avoid overheating;
2. Immediately gets into “Preview Mode” once turned on;
3. Supports Manual Record & Motion Detect & Boot Record;
4. Supports Scheduled Record, records according to a full 24 hours schedule;
5. Video resolution up to D1/channel(NTSC 720*480/30FPS; PAL 720*576/25FPS);
6. Records 4CH video & 4CH audio at the same time;
7. Supports web real-time remote monitoring;
8. Both supports 2.5” Sata HDD up to 4TB and 64GB SD card;
9. With shell lock, user password to keep the data safe;
10. Data can be easily backed up to your PC via the USB2.0 port;
11. With Date/Time and ID stamped on the screen;
12. Easy installation; easy operation and free maintenance;
13. With IR remote control, will help operate the device easily;
14. Can be connected with 4 cameras, and are able to power the 4 cameras directly;
15. Can connect mouse to operate the menu;
16. Can connect USB to back up files.
17.Users can get the data of longitude,latitude and speed from recorded video files in storage devices,and learn the driving route of the vehicle on Google map through professional player interface.

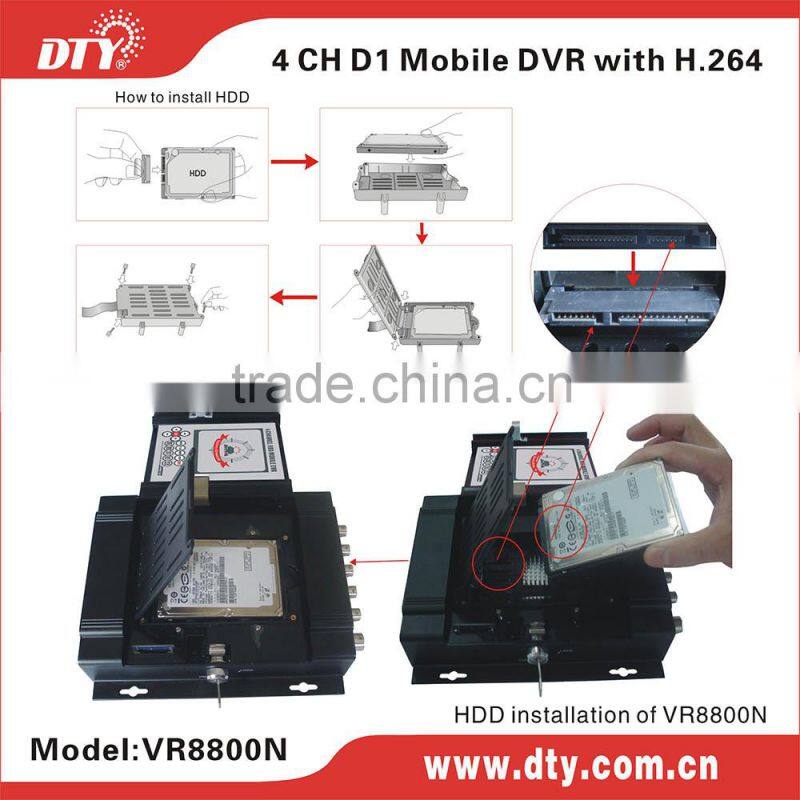

How to install HDD

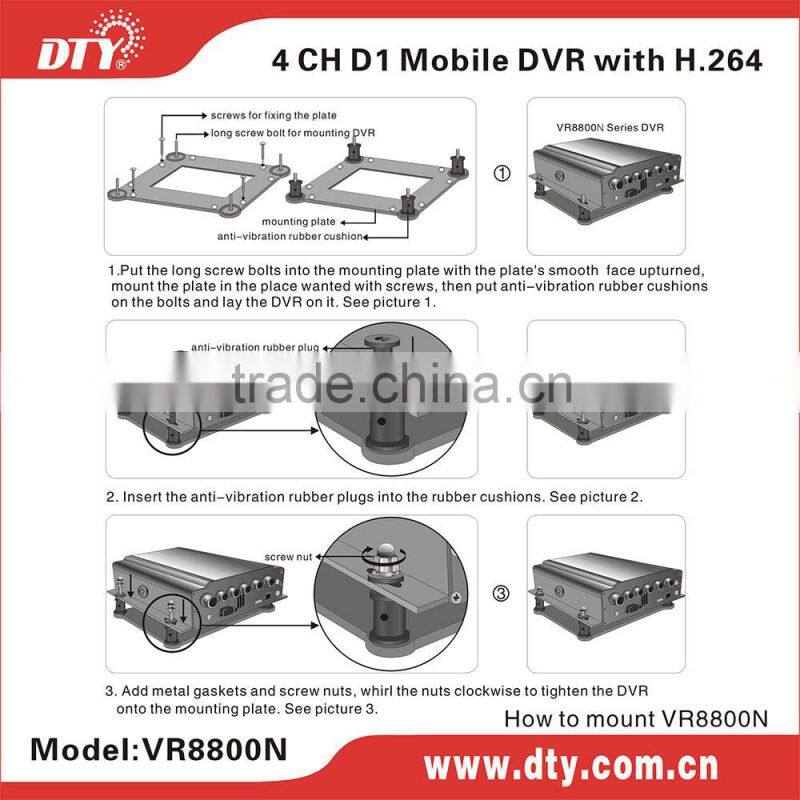

How to mount DVR

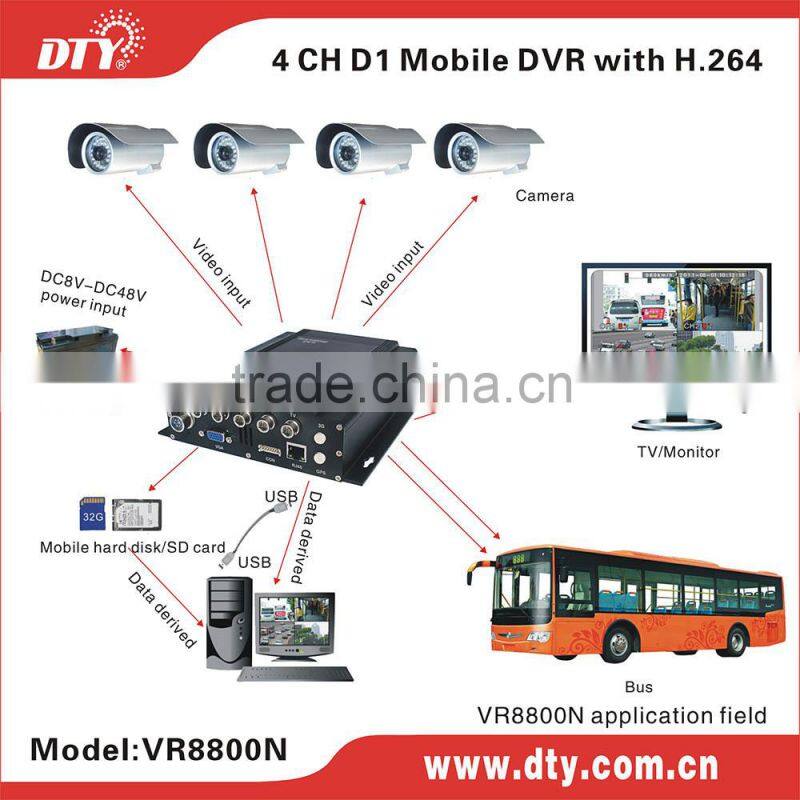

Application Field

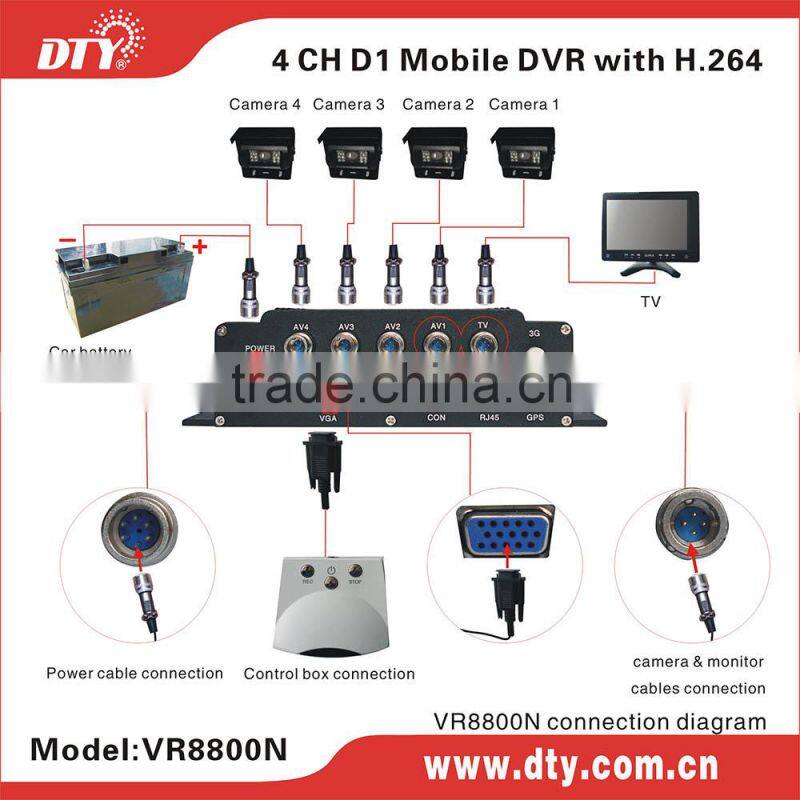

Connection Diagram

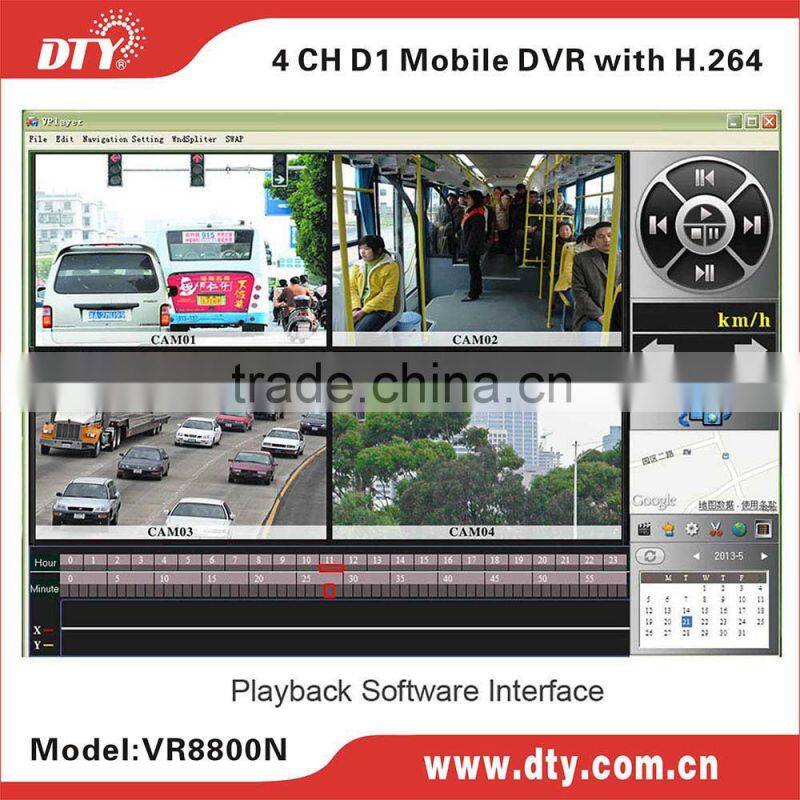

Video Playback Software

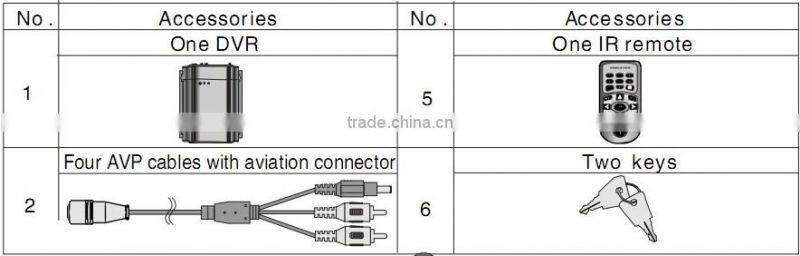

Packing List

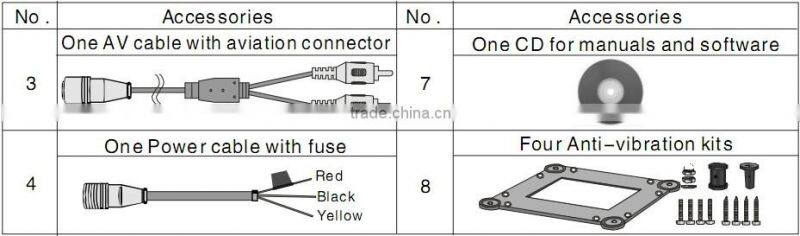

Basic Accessories

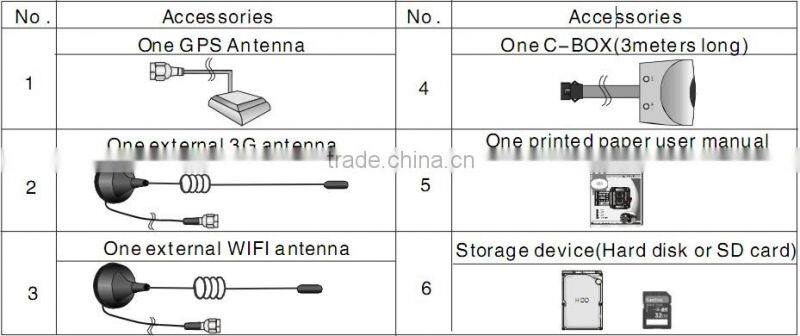

Optional Accessories
