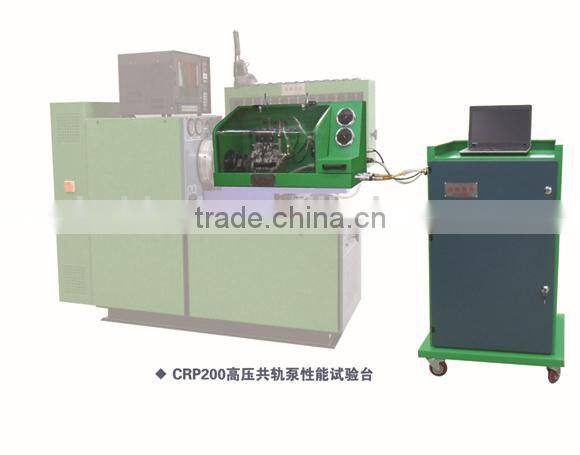

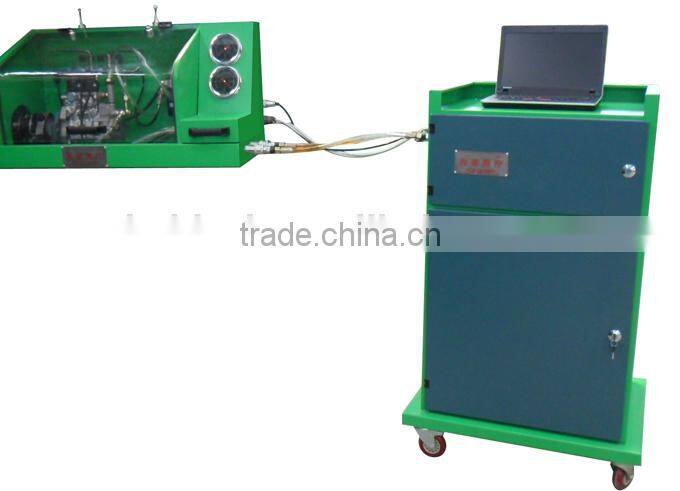

CRP200 High Pressure Common Rail Pump Performance Test Bench
Description:
CRP200 performance of high pressure common rail pump test bench can be installed in the fuel injection pump test bench,for domestic and foreign brands of high pressure common rail pump performance testing.
Functions:
1 Equipped with rapid detection Common rail pump operating software and standard database ,and the computer automatic testing
2 Sealing test for Common rail pump
3 Various rotational speeds of the plunger pump efficiency of oil test.The condition of rail pressure builds, stability and flow size
4 Under different rotation speed self-priming pump oil absorption capacity, oil pressure and oil flow rate test
5 Performance tests for various pump fuel metering valve, of output oil control valve (M-PROP/ZME, PCV, DRV)
6 The discriminant and testing of the camshaft phase sensor
Technical parameters:
| Main motor | 3 KW |
| Electricity | 380V/50Hz, 3 phase or 220V/60 Hz, 3 phase |
| Main tank | 40L |
| Accuracy of the test oil filtration | 3μ |
| Electric heater | 1KW |
| Refrigeration unit | 2P |
| Net Weight | 120kg |
3. More Products for You to Choose
Company Show
1.About us
Taian HD Power Testing Control Equipment Co.,Ltd is a professional enterprise of design,manufacture and production of internal combustion engine testing equipment.Scientific research and development, manufacturing, sales of accessories, and strive to build China's first brand of engine testing equipment.
2. Why Choose Us
- Top technology of mould r&d, manufacturing, die steel, heat treatment
- Experienced professional engineers
- Advanced equipment
3. Certifications
