Specifications
Place of Origin Shandong, China (Mainland)Brand Name: HD
Model Number :CRI200K
Color:optional
Power:4KW
CRI200K
Products introduction:

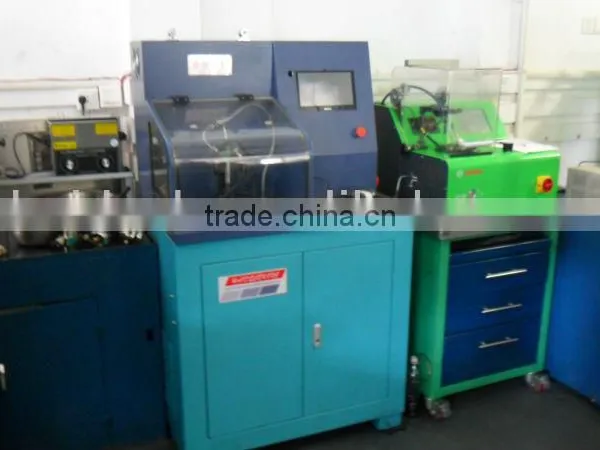

CRI200K is a highly effective quick common rail injector performance testing equipment. The product is able to detect the performance of each brand of common rail injector,such as Bosch, Denso, Delphi, Siemens, Xinfeng etc.
The system independent research and development, data can be updated at any time to upgrade, the operation is simple, convenient and quick.
The precise fuel temperature control system, high-precision flow, pressure sensor, high strength protective door, safe and reliable.
It entirely in strict accordance with the Bosch EPS200 test step to detect.
Functions:
Equipped with rapid detection common rail injector operating software and standard database ,and the computer automatic testing.
For injector testing include:
1 common rail injector flushing
2 detection of common rail injector solenoid valve performance
3 detection of common rail injector sealing
4 detection of common rail injector working condition of the injection quantity
5 detection of common rail injector working condition of oil return value
6 contrast standard data obtained results directly
7 set up under the pressure and the pulse width of the spray atomization and perspective
Can be automatically follow measuring
Accurate temperature control system of the fuel, high precision flow, pressure sensor
Fast, reliable injector mounted fixture and adapters
High-strength transparent protective cover, with open cover shutdown function, work safety and reliability.
Technical parameters:
Main motor:4KW
Electricity: 380V, 50Hz, 3 phase or 220V, 60 Hz, 3 phase
Working pressure: 0-1850bar
Main tank: 40L
Electric heater: 1KW
Physical size(MM): 880*650*1480
Net Weight:280kg
