2.5" LCD waterproof real time portable DVR--V8
Brief Introduction
V8 is a new generation Mini Digital Video Recorder,adopt MPEG-4 video compression technology. video resolution can reach 640X480, frame rate can be 30FPS,is a true realtime,high resolution,low power consume,easy going,mini Digital Video Recorder.OV580 is specially designed for V8,the li-ion battery is the same as NOKIA 6C,V8 support upto 32Gb SD card,record file stored in SD card and can be playback on TV/Monitor/cell phone,can be stored in computer
Function
1. Water proof mainframe includes camera. MIC and Video Recorder three part;
2. Enter into”preview(ready to record)” state once turn on;
3. One key can realize start record/stop record/playback;
4. Two options for video resolution:640X480/30FPS or 320X240/15FPS;
5. Support upto 32GB sd card;
6. Memory is “auto stop when full” or “loop record”;
7. Video footage with DATE/TIME stamp, record file stored on SD card won’t lose when power failure;
8. V8 power OV580C directly( current can not be bigger than100mA);
9. OV580C is a waterproof camera resolution is 480TVL,low power comsume,can work fine with DC5V;
10. Li-ion battery is the same one as NOKIA BL-6C;
11.Can connect to computer through USB cable to download or upload data;
12. Support NTSC/PAL TV system signal.
13. Can switch between TFT and external mornitor/TV;
14.with simple manual,just plug and play,no software installation need;
15. the latest version software can be download from our website
16. optional 433MHZ/315MHZ wireless lanc to remote V8.
Parameters
| Item No. | V8 |
| Working Voltage | DC5V |
| Working Current(camera included) | ≤300mA |
| Working temperature | 0 °C~+55°C |
| Output Voltage(for camera) | DC3.3V/DC12V(optional) |
| Power supply | rechargable li-ion battery(1200mAh) |
| Li-ion battery duration | about 3~5 hours |
| SD card capacity | upto 32GB |
| Video compression format | MPEG-4 |
| Video resolution | 640X480/320X240 |
| Record rate | 30fps/15fps |
| video footage size | upto 48 hours at 320X240/15fps |
| record signal | one channel audio and video |
| Memory optional | auto stop when full or loop record |
| TFT LCD resolution | 720*480 HIGH RESOLUTION LCD |
| USB cable connector | USB2.0 |
| compatible camera | common CMOS and CCD camera |
| Mainframe size | 98mm*64mm*21.5mm |
| Mainframe Weight | 100g(battery included) |
| Cotrol mode | optional 433H/315M waterproof wireless lanc |

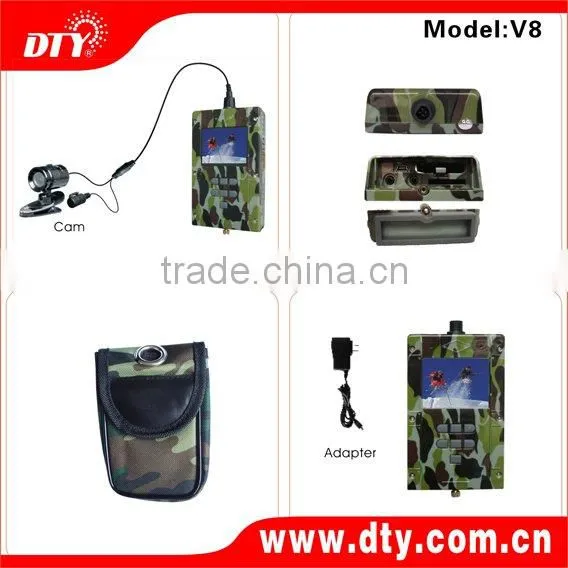

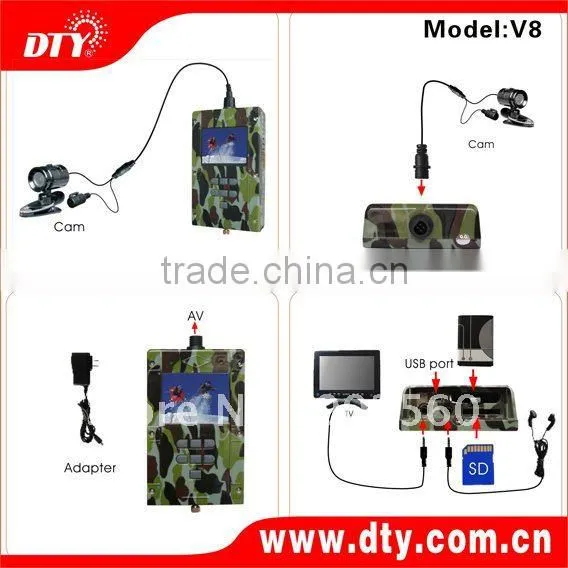

Packing List
one V8 waterproof Video Recorder mainframe;
One OV580C waterproof camera;
one USB cable;one storage case;
two special 1200mAh li-ion batteries;
one user manual;
one video outputcable.
Package
Mainframe spec.:Lenght:98mm;Width:64mm;deep:21.5mm;Weight:180g
