Specifications
Main motor:15KWWorking pressure: 0-1850bar
Speed range: 0---4000rpm
Physical size(MM): 1820*850*1500
Net Weight: 1100kg

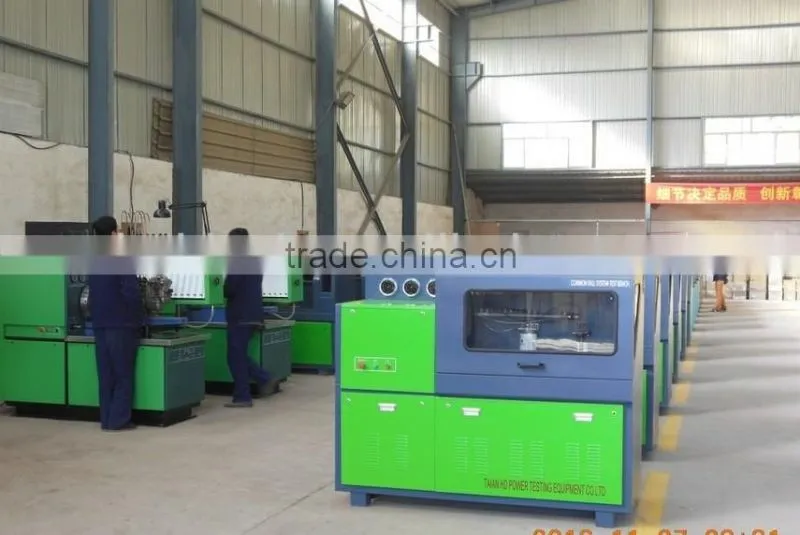

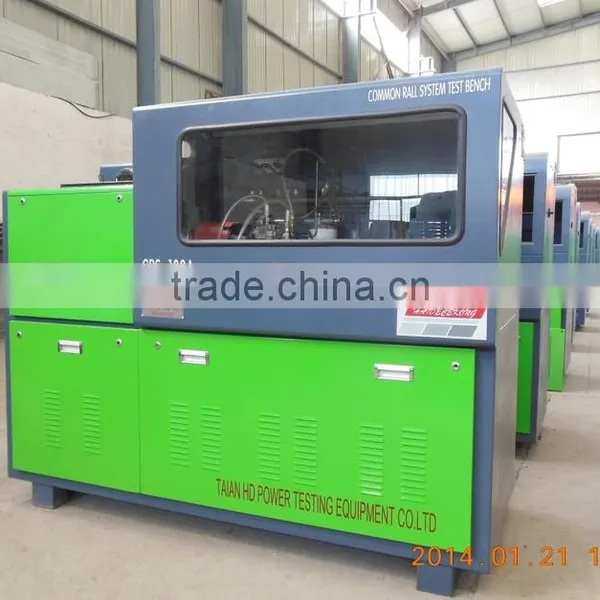

CRS100 High Pressure Common Rail Comprehensive Performance Test Bench
Product Description: CRS100 Series High Pressure Common Rail comprehensive performance test bench is a multi-functional high-end testing equipment.The product can independently complete the high pressure common rail fuel injection system components of the individual and comprehensive performance testing. Widely used in high pressure common rail fuel injection system of product development and contains Bosch, Denso, Delphi, Siemens, Xinfeng and other brands of common rail products repair service.
Functions:
Equipped with rapid detection fuel injector pump and injector operating software and standard database ,and the computer automatic testing
For common rail pump test including:
(1) sealing test
(2) various rotational speeds of the plunger pump efficiency of oil test.The condition of rail pressure builds, stability and flow size
(3) under different rotation speed self-priming pump oil absorption capacity, oil pressure and oil flow rate test
(4) Performance tests for various pump fuel metering valve, of output oil control valve (M-PROP/ZME, PCV, DRV)
(5) The discriminant and testing of the camshaft phase sensor
For injector testing include:
1 common rail injector flushing
2 detection of common rail injector solenoid valve performance
3 detection of common rail injector sealing
4 detection of common rail injector working condition of the injection quantity
5 detection of common rail injector working condition of oil return value
6 contrast standard data obtained results directly
7 set up under the pressure and the pulse width of the spray atomization and perspective
•Can be automatically follow measuring
• Having an independent injector Test unit
• Oil forced lubrication system (option)
• Accurate temperature control system of the fuel, high precision flow, pressure sensor
• High strength protective door, work safety and reliability
Technical parameters:
Main motor:15KW
Electricity: 380V, 50Hz, 3 phase or 220V, 60 Hz, 3 phase
Working pressure: 0-1850bar
Speed range: 0---4000rpm
Fuel pump: 1.1KW,10L/min
Main tank: 60L
Electric heater: 2KW
Refrigeration unit: 2P
Physical size(MM): 1820*850*1500
Net Weight: 1100kg
