Specifications
1. High Quality2. Competitive price
3. Good Service
4. Low noise, long life
5. High Precision
Shandong KM Bearing Co.,Ltd. is a manufacturer of ball bearings

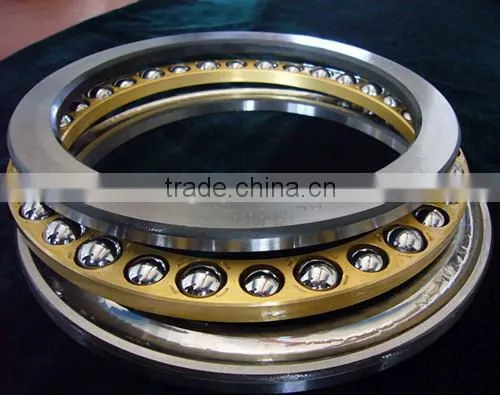

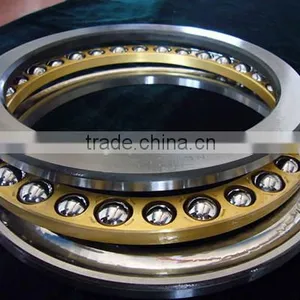

Thrust ball bearings consist of two precision washers (rings) and a ball complement spaced by retainer. They can besupplied with or without radius ball grooves in the rings. Thrust ball bearings are used under purely axial loads, and its speed is limited.
According to the capability it falls into Single Direction Thrust Ball Bearings and Double Direction Thrust Ball Bearings,
our thrust ball bearings are the particular type of the Single Direction Thrust Ball Bearings.
Thrust ball bearings are divided into single and double direction designs .The single direction bearings can only be used to carry axial load in one direction and limit the axial load in one direction and limit the axial displacement in single direction .
The doulbe direction bearings can be used to carry axial loads in both directions and limit the axial displacements in both directions .
Neither can carry radial loads .
This type of bearings suitable for applications where the rotational speed is lower .
In order to prevent detrimental movement centrifugal force during bearing in high speed the requisite minimum axial load should be applied .
Description Of thrust bearing
Bearings of series 511, 512, 513 and 514 have a flat housing locating washer. They do not permit angular misalignment or skewing between the shaft and housing.
| d | D | T | |
| mm | mm | mm | |
| 51200 | 10 | 26 | 11 |
| 51201 | 12 | 28 | 11 |
| 51202 | 15 | 32 | 12 |
| 51203 | 17 | 35 | 12 |
| 51204 | 20 | 40 | 14 |
| 51205 | 25 | 47 | 15 |
| 51206 | 30 | 52 | 16 |
| 51207 | 35 | 62 | 18 |
| 51208 | 40 | 68 | 19 |
| 51209 | 45 | 73 | 20 |
| 51210 | 50 | 78 | 22 |
| 51211 | 55 | 90 | 25 |
| 51212 | 60 | 95 | 26 |
| 51213 | 65 | 100 | 27 |
| 51214 | 70 | 105 | 27 |
| 51215 | 75 | 110 | 27 |
| 51216 | 80 | 115 | 28 |
| 51217 | 85 | 125 | 31 |
| 51218 | 90 | 135 | 35 |
| 51220 |
Our factory advantage :
1.we guarantee that all our products can meet your requirements.
2.stable customers.
3.direct manufacturer,much lower prices.
4.OEM factory,can produce almost all famous brands
5.long-term stock and rapid delivery.
Our product:
1,Ball bearings: (1)Deep groove ball bearings
(2)Thrust ball bearings
(3)Aligning ball bearings
(4)Angular contact ball bearings
2,Roller bearings: (1)Spherical roller bearings
(2)Thrust roller bearings
(3)Cylindrical roller bearings
(4)Tapered roller bearings
Delivery :
1).If quantity is not very big,we will send you by UPS,DHL,FEDEX,OR EMS. Tracking number will be advised after delivery,
2).If order is big,we will advise you use Air Freight or Sea Freight
3).The balance payment should be paid before delivery to you.
Packing:
1). If no special request,we will use normal packing, 1 bag for each product
2).If need special packing or carding, please list them in your E-mail.We would
like to make the customer wanted packing
3).we will use tray to protect products ,in order to avoid any damage in the delivery
4). OEM service is available
Payment Term :
Payment terms |
30% T/T In Advance, 70% T/T Against The Copy Of B/L 100% L/C At Sight as requested |
Why Us:
1) Reply you inquiry in 24 working hours
2) Experienced staffs answer all your questions in fluent English
3) Customized design is available. OEM are welcomed.
4) Exclusive and unique solutioncan be provided to our customer by our well-trained and professional engineers and staffs.
