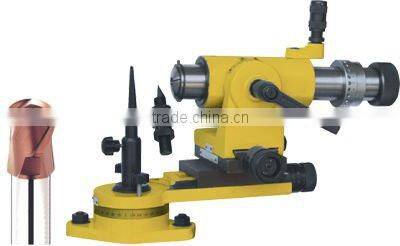

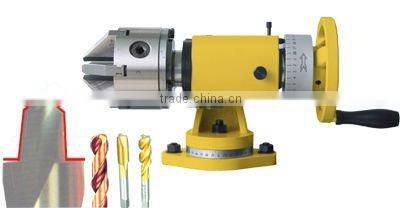

750W Universal Tool Grinding Machine MR-600
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
550W Universal Lathe Tool Grinder MR-M3
-
2800RPM Universal Cutter and Tool Grinding Machine MR-600
-
Worktable Diameter 300mm Universal Tool Sharpener MR-600F
-
Worktable Diameter 300mm Universal Cutter and Tool Grinder MR-600
-
Dimension 70*63*63cm Universal Cutter And Tool Grinder MR-600F
-
Dimension 70*63*63cm Universal Cutter and Tool Grinder MR-600
Product Details
| Condition | New | Type | Universal | |
| CNC or Not | Normal | Place of Origin | Zhejiang, China | |
| Brand Name | MRIRI CHINA MACHINE | Model Number | MR-600 | |
| Voltage | 220V | Power(W) | 380W | |
| Dimension(L*W*H) | 70*63*63 | Weight | 168kg | |
| Certification | CE |
Product Description
The working table uses the dovetail guide rail, good rigidity, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
1. Standard accessory can grind slot miller, face and side cutters, lathe tool, hobbing cutter, reamer bit etc.
2. Choosing 50E accessory can grind MO-type 4# coning spiral milling cutter, ball cutter, R-shape lathe tool,etc.
3. Choosing 50K accessory can grind MO-type 4# coning or diameter 3-32mm drill bit, screw tap, etc.
4. Choosing 50D accessory can grind MO-type 4# coning spiral milling cutter, etc.
5. Choosing 50J thimble, 50B toolbox and so on.
Model: | MR-600 |
About worktable Diameter: | 300mm |
About worktable travelin schedule: | 150mm |
Worktable area: | 130×520mm |
Rotating Angle of Wheel head: | 360° |
Grinding wheel size: | 125×50×32mm |
Power/Speed: | 2800 RPM |
Motor: | 3/4HP 220V/380V |
Dimension: | 700×630×630mm |
Weight: | 175kg/160kg |
Standard Equipment: | 50C,50H can grind slot miller,face and side cutter,lathe tool ,hobbing cutter,reamer bit etc. |
Option Equipment: | 50E grind spiral milling cutter ball end mill,R type lathe tool,graver and other taper milling cutter. 50K can grind drill bit ,screw tap,side mill,round bar and so on. 50D can grind end mill ,side mill and so on. 50B tablebox 50J thimble |
THE ACCESSORIES:
| |
|
|
|
50E Spiral mill·ball cutter grinder | 50K Drill bit·screw tap grinder | 50D End-milling cutter grinder | 50J Thimble | 50B Toolbox |
