Home > Tools & Hardware > Abrasive & Grinding > Grinder > Dimension is 35*23*24cm Hss End Mill Re-sharpener MR-X3B

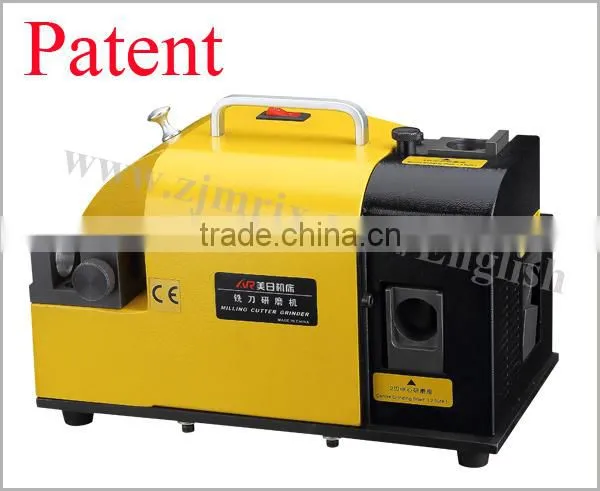

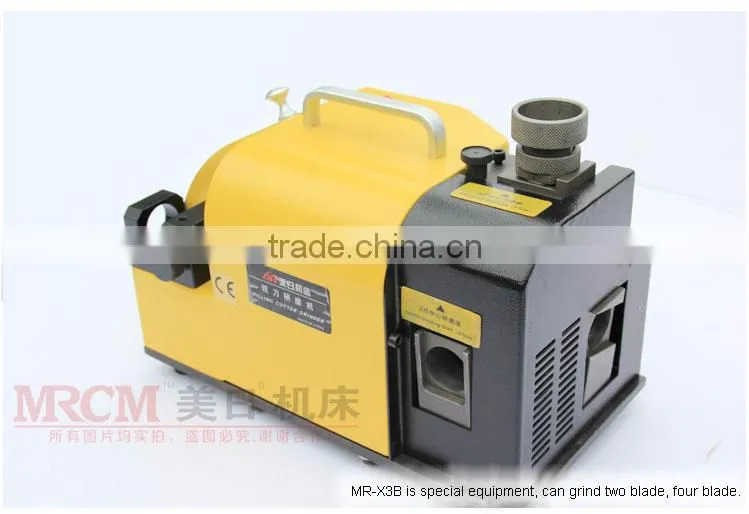

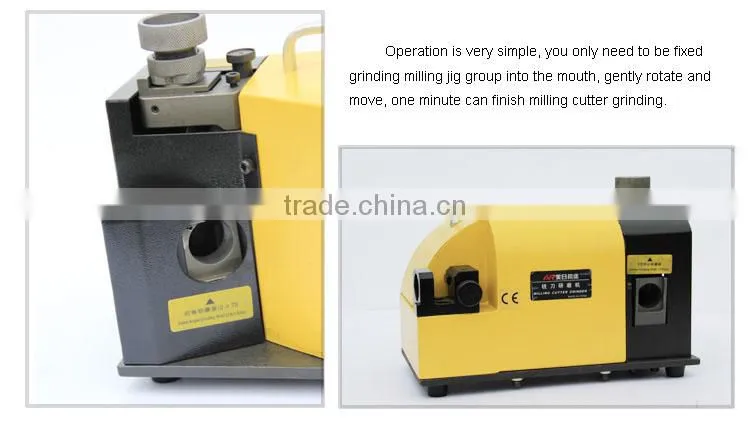

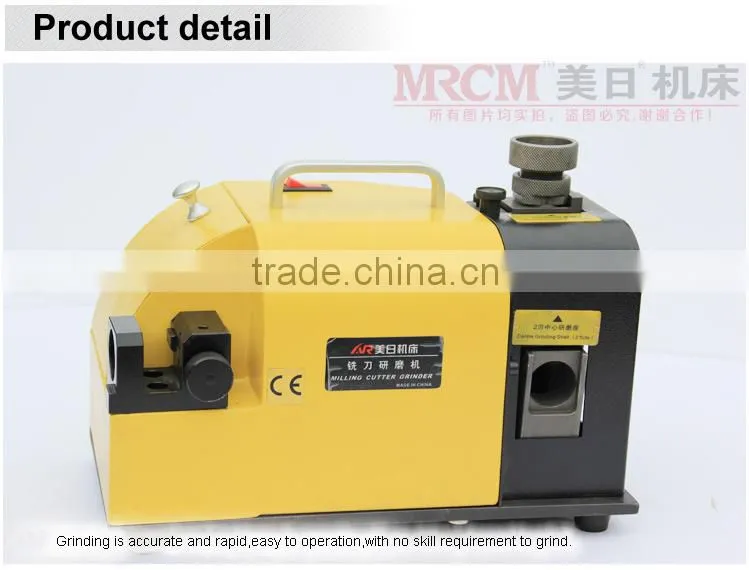

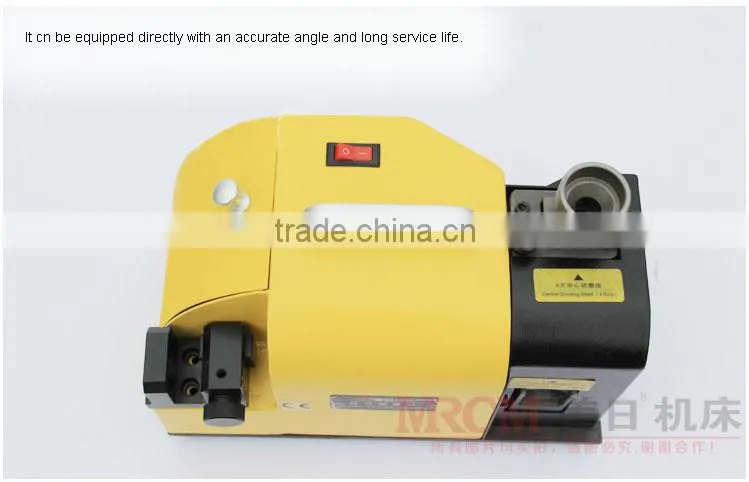

Dimension is 35*23*24cm Hss End Mill Re-sharpener MR-X3B
US$ 650 - 780
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MEIRI CHINA MACHINE
Model Number:
MR-X3B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Weight is 20kg Precision Complex Drill & Mill Grinder MR-F4US$ 872 - 1,145MOQ: 1 Set -
Weight is 25.6kg Carbide End Mill Re-sharpener MR-X10NegotiableMOQ: 1 Set
-
Weight is 40kg Carbide Spiral End Mill Grinder MR-X7US$ 1,544 - 1,873MOQ: 1 Set
-
Wight is 50kg Complex Grinder of Mill & Drill MR-F6US$ 1,428 - 1,873MOQ: 1 Set
-
Weight is 28kg End Mill Grinder MR-X5US$ 914 - 1,145MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
MEIRI CHINA MACHINE
Model Number
MR-X3B
Power Source
Electricity
Type
Angle Grinder
Variable Speed
No
Rated Input Power
180W
Disc Diameter
125mm
Rated Voltage
220V
No-Load Speed
5300RPM
Frequency
50HZ
Disc(Wheel) Type
Grinding Disc
Weight
14kg
1. It can grind straight shank vertical milling cutter (2-flute, 4-flute), which can be drilling, milling and cutting synchronously. Avoiding drilling again, save time, labor, and energy.
2. Grinding a milling cutter with one minute; grinding accuracy up to 0.02mm.

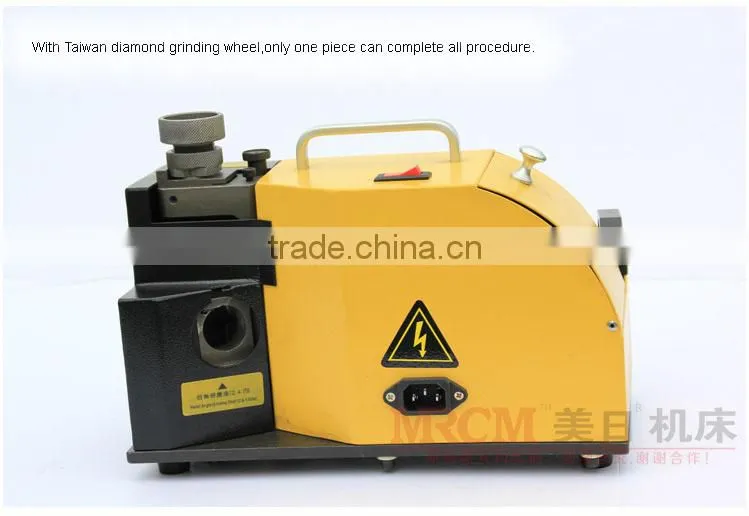

3. With diamond grinding wheel, can be used for a lone time without dressing.
Please browse our website to watch the operation video.
Model |
MR-X3B |
Diameter |
Φ4-Φ14 |
Power |
220V/180W |
Speed |
5300rpm |
Weight |
14kg |

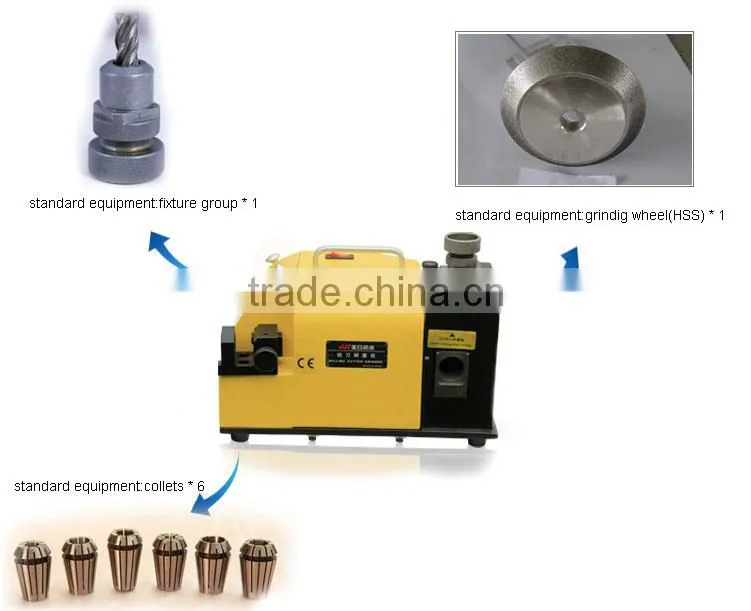

Standard Equipment |
One piece grinding wheel :CBN (for HSS)×1 |
five collets: Φ6,Φ8,Φ10,Φ12,Φ14 | |
|
One collet chuck: 2,4 flutes ×1 piece;
| |
Optional Equipment |
grinding wheel SD (for Carbide)×1:grind Φ6-Φ14 grinding wheel(CBN or SDC)×1:grind the Φ4 ER20(Φ4) collet ×1 |
