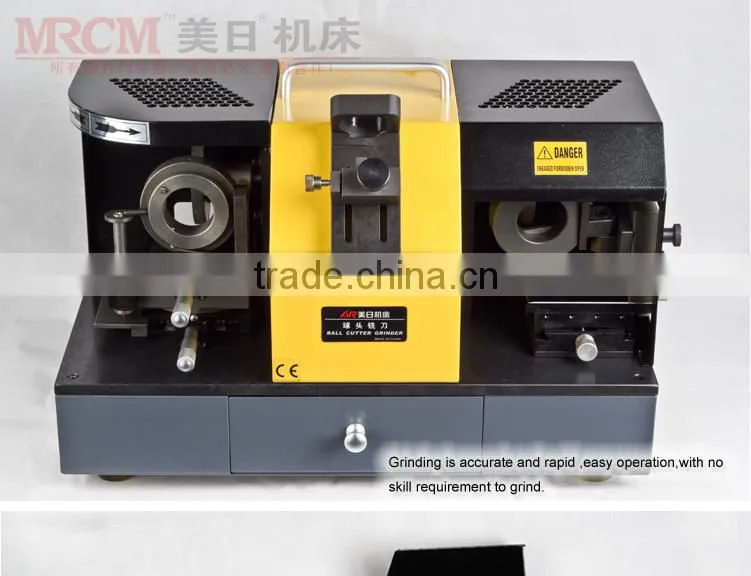

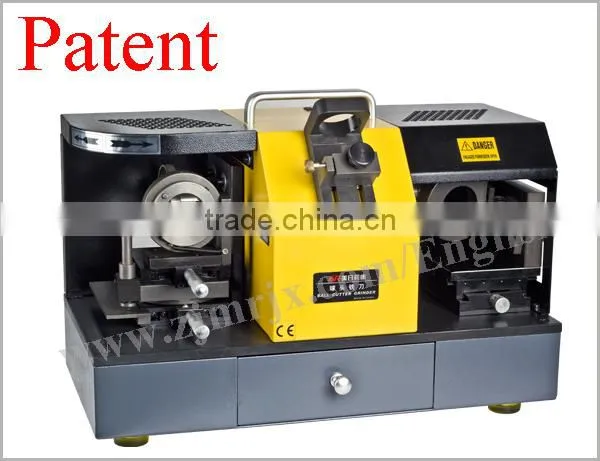

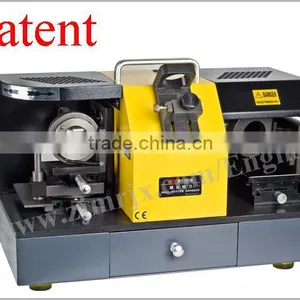

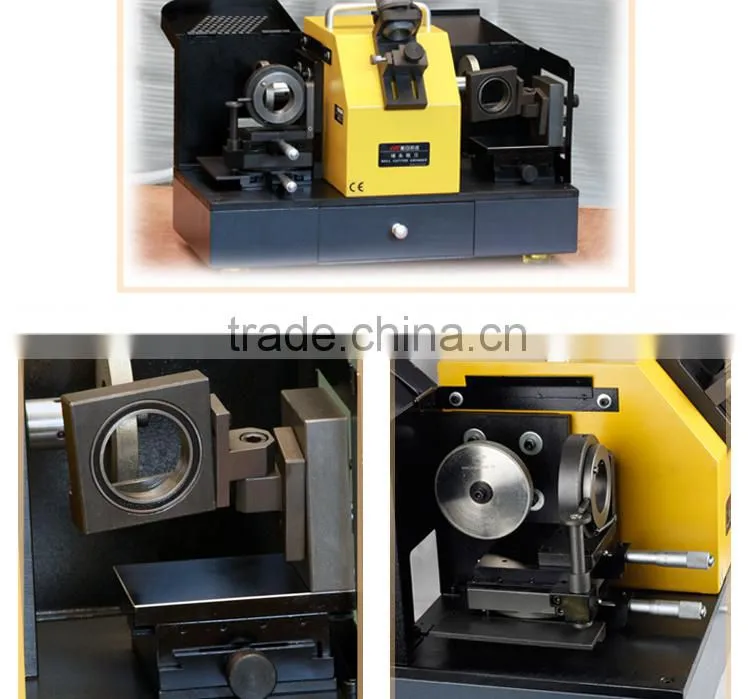

Yellow & Black Ball End Mill Grinder MR-X8

Name: Yellow & Black Ball End Mill Grinder MR-X8
Brand: MEIRI MACHINE TOOL
SKU: 112201131
Availability: InStock

US$ 1,155 - 1,873 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

MEIRI MACHINE TOOL

Model Number:

MR-X8

Taizhou Meiri Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name MEIRI MACHINE TOOL

Model Number MR-X8

Power Source Electricity

Type Angle Grinder

Variable Speed No

Rated Input Power 250W

Disc Diameter Other

Rated Voltage 220V

No-Load Speed 4000rpm

Disc(Wheel) Type Grinding Disc

Dimensions 60*29*37cm

Weight 36.5kg

Patent No.: 2011 3036 4323.6

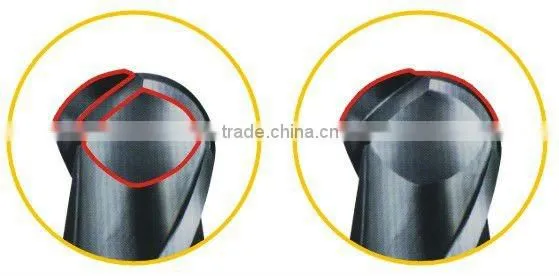

1. It is specialied for the ball end mill.

2.Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.

3.With Taiwan diamond grinding wheel, which can be secondary re-used, with accurate angle and long service life.

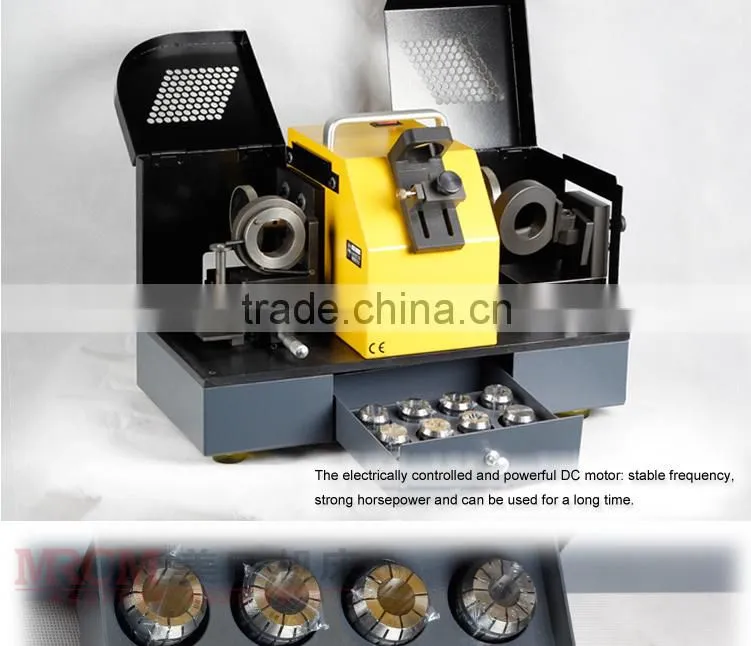

4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.

Model:	MR-X8
Grinding range:	Φ6-Φ20
Motor:	220V/(250W)
Speed:	4000rpm
Grinding wheel:	CBN or SDC
Dimension:	532937cm
Weight:	37kg

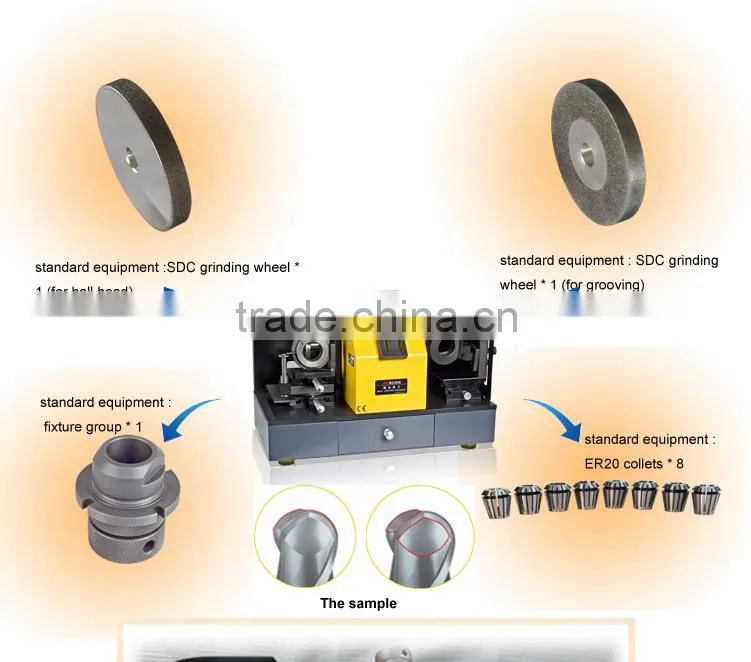

Standard Equipment:	Two piece grinding wheels ,CBN (for HSS) : Gringding the ‘R’ angle ×1 piece; Grinding the lip relief angle ×1 piece

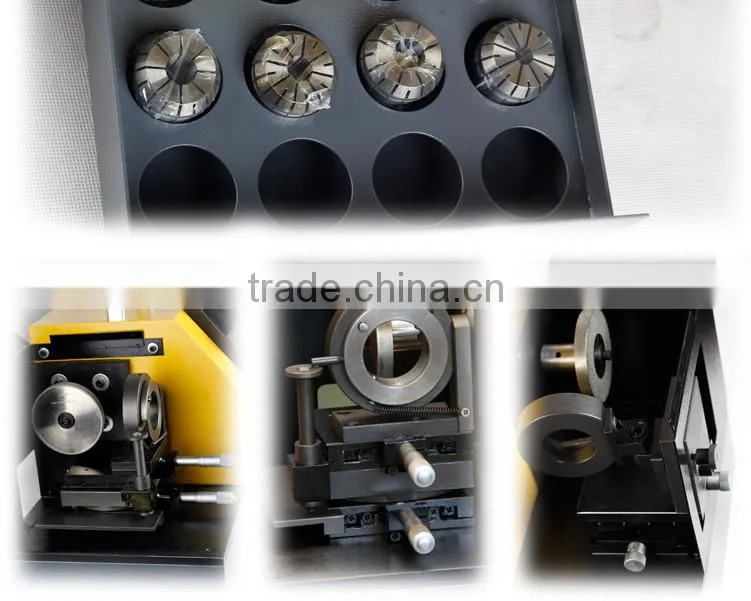

	Eight collets: Φ6,Φ8,Φ10,Φ12,Φ14 ,Φ16,Φ18,Φ20
	Collet chuck ×1
Option Equipment:	Two piece grinding wheels : SD (for Carbide) Gringding the ‘R’ angle ×1 piece; Grinding the lip relief angle ×1 piece
