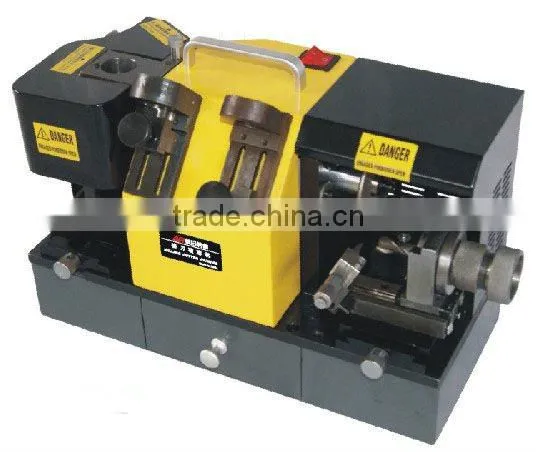

Portable End Mill Re-sharpening Machine MR-X6

Name: Portable End Mill Re-sharpening Machine MR-X6
Brand: MEIRI MACHINE TOOL
SKU: 112200533
Availability: InStock

US$ 1,155 - 1,309 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

MEIRI MACHINE TOOL

Model Number:

MR-X6

Taizhou Meiri Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name MEIRI MACHINE TOOL

Model Number MR-X6

Power Source Electricity

Type Angle Grinder

Variable Speed No

Rated Input Power 180W

Disc Diameter 125mm

Rated Voltage 220V

No-Load Speed 5300RPM

Frequency 50HZ

Disc(Wheel) Type Grinding Disc

Dimensions 40*24*30cm

Weight 21kg

1. Portable idiot end mill Re-sharpening, can grind 2-flute, 3-flute, 4-flute, 6-flute end mill and can grind peripheral cutting edge.

2. Grinding is accurate and rapid, easy operation with no skill to grind.

3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.

4. It can be equipped directly with an accurate angle and long service life.

Model:	MR-X6
Mill diameter:	Φ4-Φ14
Point angle:	0°-5°
Motor:	220V/180W
Speed:	5300rpm
Dimension:	41×25×30cm
Weight:	22kg
Standard Equipment:	Face grinding wheel :CBN (for HSS)
	Side grinding wheel: CBN (for HSS)
	Six collets: Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
	Three collet chucks: 2,4 flutes ×1 piece; 3,6 flutes×1 piece; grinding the side of end mill×1 piece
Optional Equipment:	Face grinding wheel :SD (for carbide)
Optional Equipment:	Side grinding wheel: SD (for carbide)
