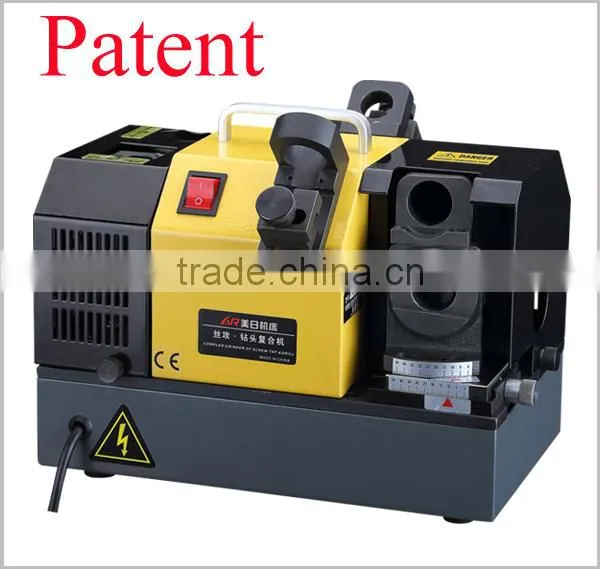

Carbide Complex Re-sharpener Of Tap & Drill MR-A4

Model:

Screw tap

Drill

Range:

M5-M20mm

Φ2.1-Φ14mm

Point angle:

5°~30°

100°~135°

Power:

220V/180W

Motor:

5300rpm

Dimension:

36×30×28cm

Weight:

20kg

Standard Equipment:

Drill side grinding wheel :CBN (for HSS) ×1 piece

Tap side grinding wheel :CBN (for HSS) × 1 piece

Twelve collets: Φ3,Φ4,Φ5,6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14

one collet chuck for drill(Φ2-Φ14)

two collet chuck for screw tap :

3 flutes×1 piece

4 flutes ×1 piece

Option Equipment:

Drill side grinding wheels :SD (for Carbide)

Tap side grinding wheel:  SD (for Carbide)

collets(for drill): Φ2,Φ2.5,Φ3.5,Φ4.5,Φ5.5,Φ14,Φ15

collet chuck(for drill):Φ15
