Surface Milling Type Chamfer MR-R800B

Surface Milling Type Chamfer MR-R800B thumbnail-1
Surface Milling Type Chamfer MR-R800B photo-1
US$ 609 - 727 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MEIRI CHINA MACHINE
Model Number:
MR-R800B
Contact Supplier Request Quote Chat Now
Taizhou Meiri Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name MEIRI CHINA MACHINE
Model Number MR-R800B
Power Source Electricity
Type Bench Grinder
Variable Speed No
Rated Input Power 750W
Disc Diameter 125mm
Rated Voltage 380V
No-Load Speed 8500/12000RPM
Frequency 50HZ
Disc(Wheel) Type Cutting Disc
Dimensions 51*42*60cm
Weight 73kg

Surface Milling Type Chamfer MR-R800BSurface Milling Type Chamfer MR-R800B

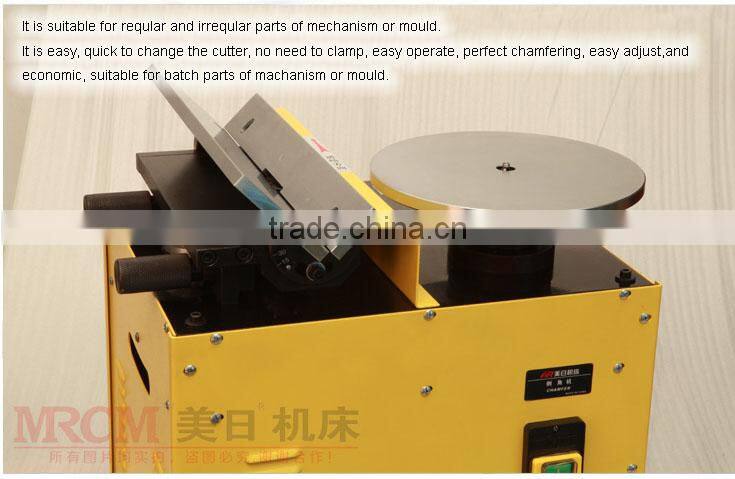

1. It is easy, quick to change the cutter, no need to clamp, easy operate, perfect chamfering, easy adjust,and economic, suitable for batch parts of machanism or mould.

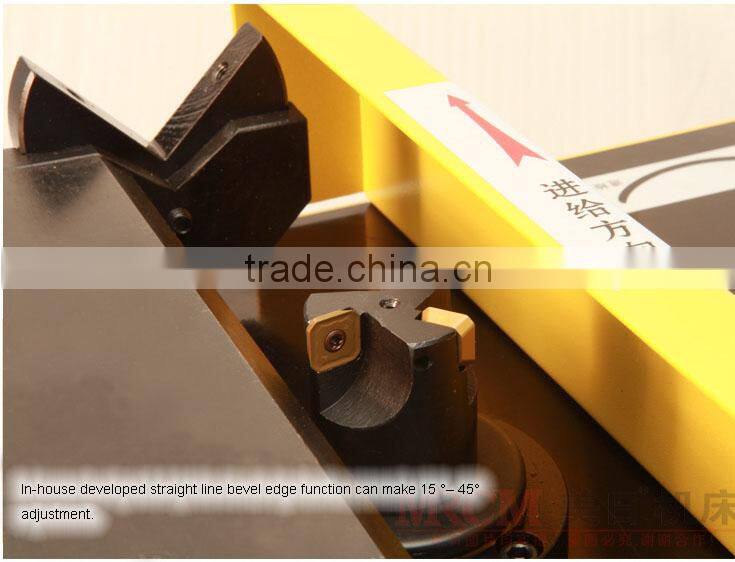

2. In-house developed straight line bevel edge function can make 15 °– 45° adjustment.

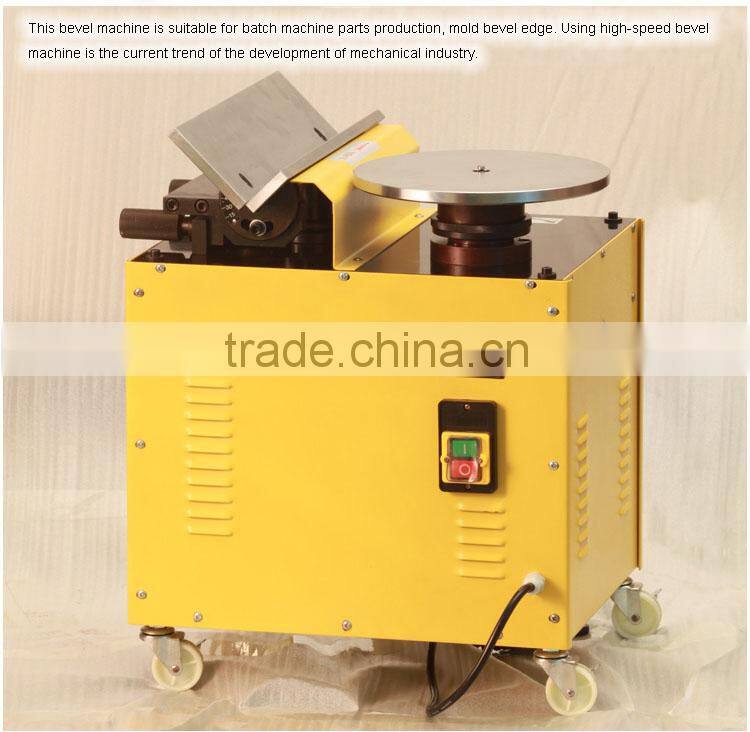

3. Need no attire clamping, simplicity of operation, neat bevel edge, easy adjustment greatly enhance operation efficiency. This bevel machine is suitable for batch machine parts production, mold bevel edge. Using high-speed bevel machine is the current trend of the development of mechanical industry.

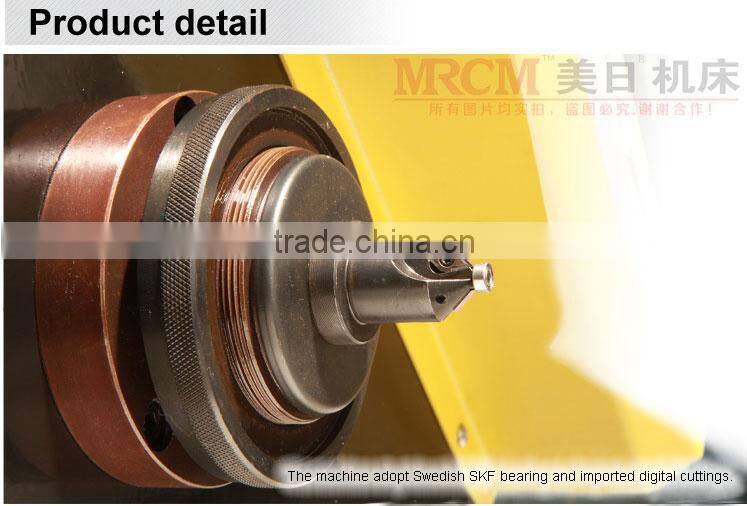

4. The machine adopt Swedish SKF bearing and imported digital cuttings.



Surface Milling Type Chamfer MR-R800B



/watch?v=Joylo4HG4WY



Model:

MR-R800B

Chamfering height:

Straight line: 0-3mm  Curved: 0-2.5mm

Chamfering angle:

Straight line angle: 15° - 45°   Curved angle: 45°

Power:

3/4HP(750W), 380V

Speed:

Straight line: 8500rpm   Curved: 12000rpm

Dimension:

51×42×60cm

Weight:

73kg

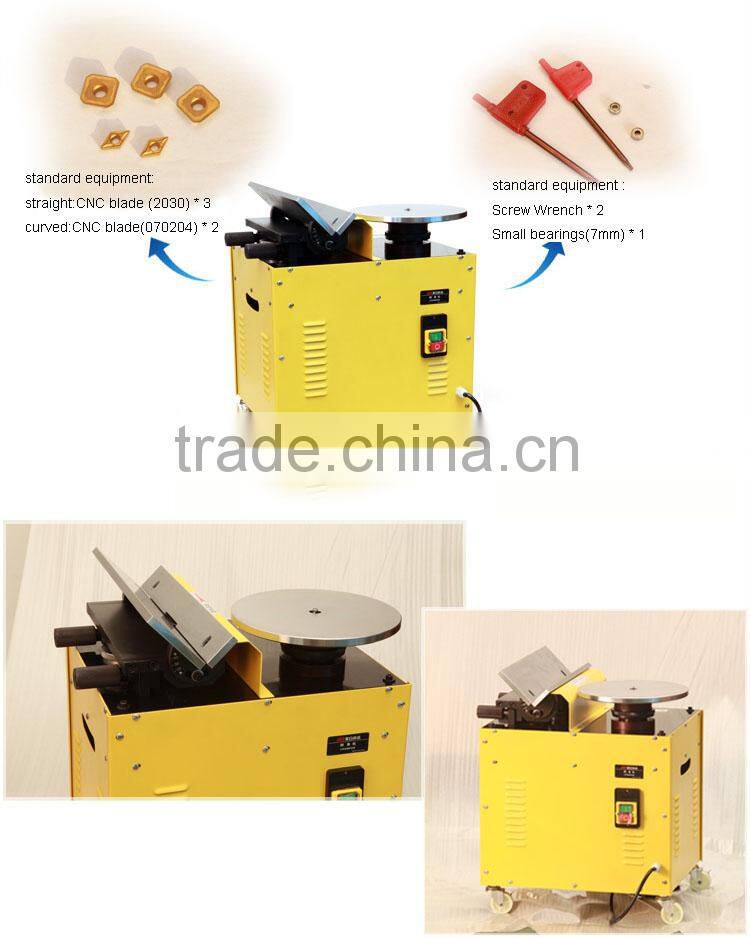

Standard Equipment:

Inserts*2 set:1 set for straight,1 set for curved











Surface Milling Type Chamfer MR-R800B



 Surface Milling Type Chamfer MR-R800BSurface Milling Type Chamfer MR-R800BSurface Milling Type Chamfer MR-R800BSurface Milling Type Chamfer MR-R800BSurface Milling Type Chamfer MR-R800B
