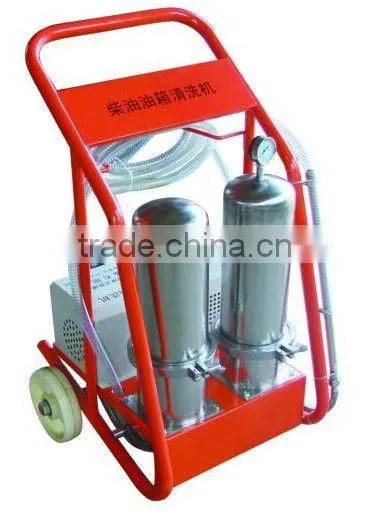

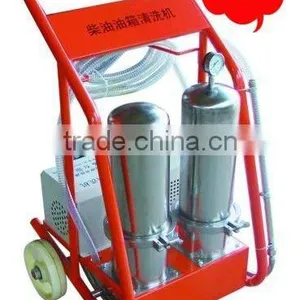

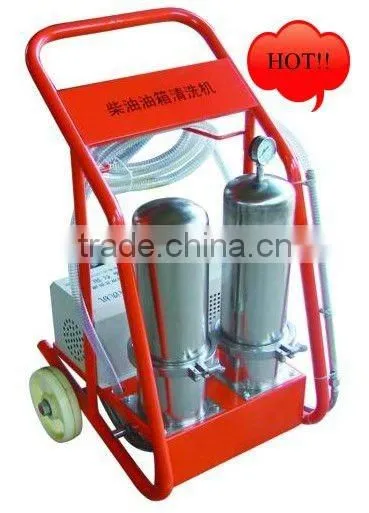

two-grade Diesel fuel tank cleaning machine type 1

wooden box

Specifications

1.flow:30L/min
ure:1.5kg
3.output power:550w
4.two grade filter
5.cleaning without dismantling the tank



Technical parameters:

Power supply	380V/220V
Output power	550W
Pressure of cleaning	1.5KG
Flow	30L/min

Characteristics:

1.Cleaning without dismantling the tank and the oil pipe, easy operation.

2.With two grades filter, the rough filtration gets rid of the bigger impurities and water; the precision filtration eliminates the tiny impurities.

3.High pressure rotating nozzle ensure the effective all-around cleaning.

4.Applicated to diesel fuel tank of all types of vehicles.

Operation method:

1.The direct circulation way:

(1)bend the sprayer to some angle and insert it to the lateral cavity through the round hole on the partition.

(2)put the cleaning pipe at the bottom of the tank or the lateral cavity.

(3) switching the power on, adjust the switch to go clockwise and get the right cleaning direction.

(4) take the spray bar by hand, mainly sprary cleaning focus on the inner side of the tank and the area where is hard to clean.

2.drain circulation way:

(1).put the empty container under the tank and drain the oil out of the tank.

(2) put the Oil pipelines into the container which contains the oil, and insert the injection pipe into the tank.

(3) switching the power on, adjust the switch to go clockwise and get the right cleaning direction

(4)move the spray bar all the direction by hand, ensure the sprayer can clean all the parts of the inner side of the tank.

Diesel fuel tank cleaning machine is used to clean the diesel tank and the hydraulic fluid tank, since its easy operation and good performance, winning wide use.
