Help CenterPCM-E - Diesel Fuel Injection Pump Test Bench
Related Products
-
GPS916 -- Diesel Fuel Injection Pump Tester(displayed by Digital)US$ 4,127 - 6,099MOQ: 1 Set -
12PSB-C Diesel Fuel Injestion Pump Test Bench(displayed by Digital)US$ 3,810 - 5,300MOQ: 1 Set
-
12-cylinders Diesel Fuel Injection Pump Test Bench GPS916US$ 4,125 - 4,567MOQ: 1 Set
-
Diesel Fuel Injection Pump Test BenchUS$ 4,127 - 6,000MOQ: 1 Set
-
GPS916 Diesel Fuel Injector Pump Test Bench(displayed by Digital)US$ 4,127 - 6,000MOQ: 1 Set
Specifications
1.Measuring distribution pump pump body pressure .2.Testing of the electromagnetic valve of distributor pump

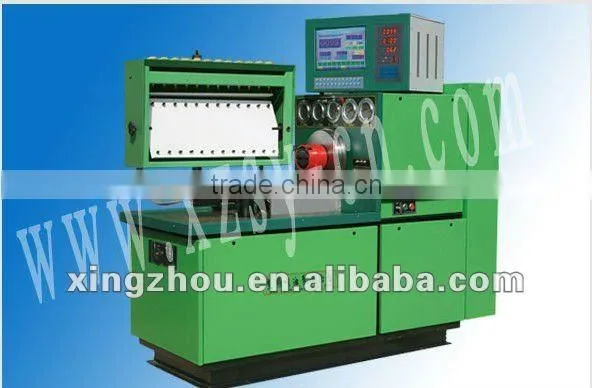

PCM-E diesel fuel injection pump test bench:
Technical parameters:
| Output power | 7.5KW,11KW,15KW,18.5KW,22KW |
| Electronical supply | 3-Phase)380V/50HZ or on request |
| Interaxe height | 125mm |
| Graduates | 45CC,150CC |
| Volume of fuel tank | 60L |
| DC.Supply | 12/24v |
| Feeding fuel pressure | (Low)0-0.4Mpa (High):0-4Mpa |
| Range of speed | +/-4000RPM |
| Air pressure | -50 +300Kpa |
| Control fuel temerature | 40 + / - 2 degrees |
FUNCTIONS :
1. Testing 12-cylinder fuel injection pump.
2 Measuring each cylinder delivery at any speed.
3 Checking each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5. Check the mechanical governor performance.
6. Check the pneumatic control performance.
7. Check gas film governor negative pressure performance .
8. Measuring distribution pump pump body pressure .
9. Testing of the electromagnetic valve of distributor pump
10.Distribution pump imbibition oil and overflow flow measurement .
11.Checking the advance angle of advance device( Optional ).
12. High resolution, truecolor liquid crystal display (LCD) standard printer interface to connect the Internet
13. Test oil circuit have filter system, increase test oil and fuel injector use cycle
14.Performance is stable and reliable
15.Precise control of the oil temperature
16.Low noise,Energy saving
