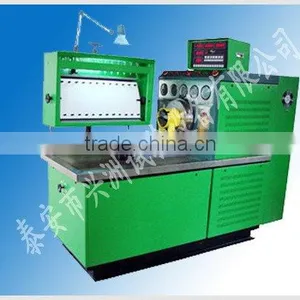

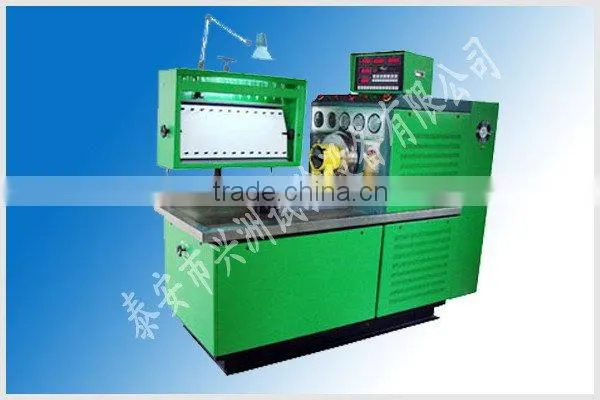

GPS916 -- Diesel Fuel Injection Pump Tester

Name: GPS916 -- Diesel Fuel Injection Pump Tester
Brand: XINGZHOU
Availability: InStock

FOB Price

US$ 4,599 - 6,099 / Set

1 Set(Min. Order)

Port QingDao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Power	11KW 15KW 18.5KW etc	Certification	ISO9001
Place of Origin	Shandong, China	Brand Name	XINGZHOU
Model Number	GPS916

Packaging Details

packing in wooden case

Product Description

Specifications

1.Checking of each cylinder injection timing with static .
2.Check the pneumatic control performance.

GPS916 diesel fuel injection pump test bench

Technical parameters:

Electronical supply	(3-Phase)380V/50HZ
Interaxe height	125mm
Graduates	45CC or 150CC
Volume of fuel tank	60L
DC.Supply	12/24V
Feeding fuel pressure	(Low):0-0.4Mpa (High):0-4Mpa
Range of speed	+/-4000RPM
Flywheel inertia	:0.8KG.. M2
overall size	210010501680
net weight	900kg

Feature :

1. Test-bed using static plastic casing, scratch resistance wear resistance, anti-aging novel structure, rational layout, beautiful shape, installation convenient operation, etc.
2.The figures show that the speed measurement, counting measurement and temperature measurement.

3.Test-bed using static plastic casing, scratch resistance wear resistance, anti-aging novel structure, rational layout, beautiful shape, installation convenient operation, etc.

4. Test bench bring positive negative pressure pump device, no external air, can provide stable, adjustable is negative pressure air supply.
FUNCTIONS:

1. Testing 12-cylinder fuel injection pump.

2. Measuring each cylinder delivery at any speed.
3. Checking of each cylinder injection timing with static .

4. Check the pneumatic control performance.

5.Check gas film governor negative pressure performance.
6.Check in advance (advance angle) performance (optional).

7.Frequency control of motor speed
