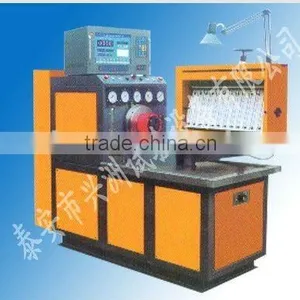

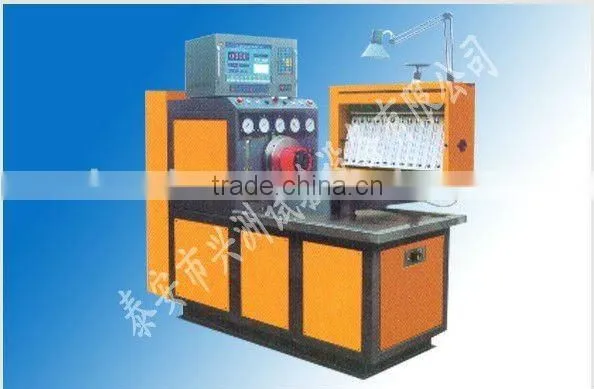

Diesel Fuel Injection Pump Test Bench

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port qingdao
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Auto testing bench	Voltage	380V
Power	11KW,15KW etc.	Certification	ISO9000
Place of Origin	Shandong, China	Brand Name	XINGZHOU
Model Number	PCM-AH-s

Packaging Details

packing in wooden case

Product Description

Specifications

1.Frequency control of motor speed
2.With high quality
3.Easy to operate.
4.Price lower

PCM-AH diesel fuel injection pump test bench :

Technical parameters :

Output power	7.5KW,11KW,15KW
Electronical supply	(3-Phase)380V/50HZ
Interaxe height	125mm
Graduates	45CC,150CC
Volume of fuel tank	60L
DC.Supply	12/24v
Feeding fuel pressure	(Low):0-0.4Mpa (High):0-4Mpa
Range of speed	+/-4000RPM
Range of rack	0-25mm
Air pressure	-50 +300Kpa
Control fuel temerature	40 + / - 2 degrees

FUNCTION:

Testing 12-cylinder fuel injection pump.

2 Measuring each cylinder delivery at any speed.

3 Checking each cylinder injection timing with static.

4 Checking the sealing injection pump body.

5 Checking the pressure compensators.

6 Checking the pneumatic governor.

7 Quick view the characteristic curve of governor with dynamic.(optional)

8 Checking transer pump.

1.Frequency control of motor speed
2.With high quality
3.Easy to operate.
4.Price lower
