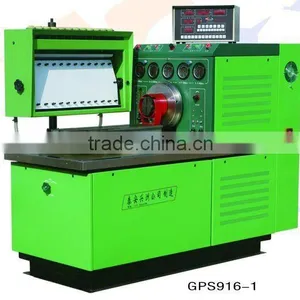

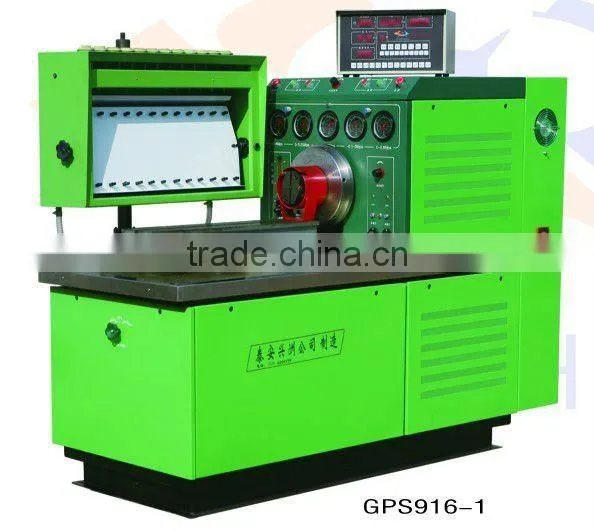

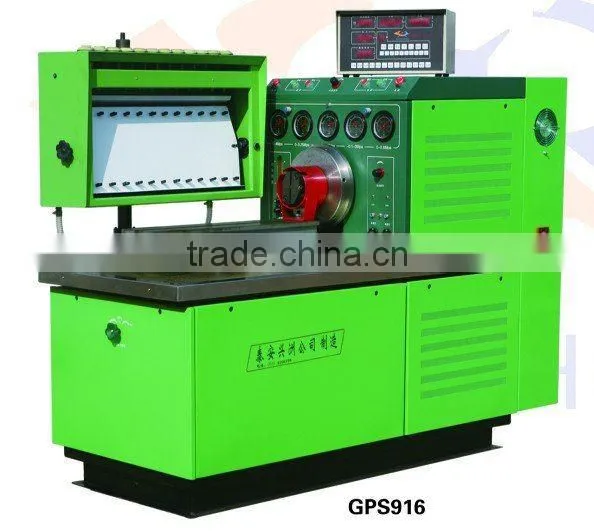

Help CenterDiesel Fuel Injection Pump Test Bench(GPS916)
Related Products
-
Diesel Fuel Injestion Pump Test Bench 12PSB-C-VUS$ 1 - 2MOQ: 1 Set -
PCM-AH-V Diesel Fuel Injection Pump Test BenchUS$ 1 - 2MOQ: 1 Set
-
PCM-E-v Diesel Fuel Injection Pump Test BenchUS$ 3,801 - 4,901MOQ: 1 Set
-
CR-XZ816 Common Rail Injector Test Bench and Pump Test BenchUS$ 14,000 - 15,000MOQ: 1 Set
-
12PSB-C Diesel Fuel Injection Pump Test Bench or Test TableUS$ 4,000 - 5,000MOQ: 1 Set
Specifications
1.test 12 cylinder pump2.power supply:380V,220V
3.output power:7.5kw,11kw,15kw,18.5kw,22kw
4.volume of tank:60L
FUNCTIONS
1 12-cylinder diesel fuel injection pump can be tested
2 Measure each cylinder delivery at any speed. GPS916
3 Check each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5 Check the mechanical governor.
6 Check the pneumatic governor.
7 Check the vacuum capacity of governor.
8 Check the pressure compensators (LDA).
9 Measure the internal pressure of distributor pump body.
10 Test the electromagnetic valve of distributor pump.
11 Check the transfer pump.
Technical parameters:
Output power |
7.5KW,11KW,15KW |
Electronical supply |
380V/50HZ or on request |
Interaxe height |
125mm |
Graduates |
45CC,150CC |
Volume of fuel tank |
60L |
DC.Supply |
12/24v |
Feeding fuel pressure |
Low:0-0.4Mpa High:0-4Mpa |
Range of speed |
+/-4000RPM |
