High oil output walnut oil press machine from China with finest service
6YL-series mini oil press machine is advanced screw oil press machine , characterized by the simple design , easy to use , wide suitability and continuous operation ,high production capacity and high oil output rate . Moreover , this kind of machine can be used for various raw materials . And depending on the oil content of particular crop you are pressing , the machine will extract about 90%-95% of it . So for cnola and sunflower seeds , you will get about 300kg oil for per ton raw materials . And the remain cake are mostly used for animal feed .
1 Raw materials can be used for our walnut oil press machine
corn germ , cotten seeds , peanuts seeds , sunflower seeds , copra , palm kernel , sesame seeds , soybean , castor seeds , rapeseeds , canola seeds , musterd seeds
2 Some specification of our walnut oil press machine
Products name : mini oil press machine
Capacity : 4-7TPD
Specification : 6YL-120CA
Usage : cooling oil making
Shipment port : Qingdao Port Or Shanghai Port
Package : wooden case
Payment terms : 30%payment in advance and balance payment before the shipment
Voltage : 380V , 50 HZ , three phase
Power : 11 kw
Place of origin : Henan in China
3: the simple structure of our walnut oil press machine

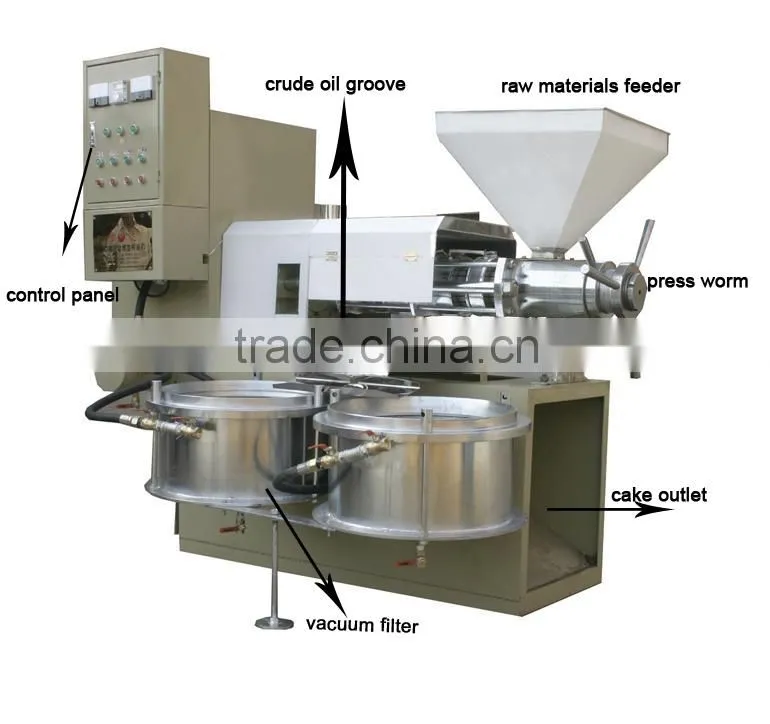

4 the structure of our walnut oil press machine
Raw materials feeder : the raw materials can go to the oil press machine through the feeder .
Vacuum filter : the crude oil go to the vacuum filter . In the filter , the pgysical impurities will be removed , which make the crude oil very clean and can be cooking directly .
Cake outlet : after the oil pressing section , the raw materials will be divided into two parts , one part is vegetable oil and the other part is raw materials cake . The cake can be used for animal feed .
Control panel : in the control panel , there are several buttons . The heating system can make the temperature of pressing enviroment about 120 degree , which can make perfect pressing section working enviroment . When the temperature is higher than 120 degree , the heating system will be cut off automatically . The design of heating system can guarantee the service life of the oil press machine .
5:some specific information for different models of walnut oil press machine
MODEL |
CAPACITY(kg/h) |
POWER(kw) |
NET WEIGHT(kg) |
PACKING(mm) |
6YL-68 |
40 |
5.5 |
130 |
1050*660*760 |
6YL-80 |
80-125 |
5.5 |
330 |
1320*440*695 |
6YL-95 |
160-200 |
11 |
420 |
1910*610*765 |
6YL-100 |
160-200 |
7.5 |
400 |
1860*550*695 |
6YL-120 |
200-300 |
11 |
700 |
2060*610*770 |
6YL-130 |
375-500 |
18.5 |
700 |
2320*700*780 |
6YL-160 |
550-700 |
18.5 |
920 |
2020*700*780 |
6YL-165 |
620-830 |
22-30 |
1600 |
2120*800*980 |

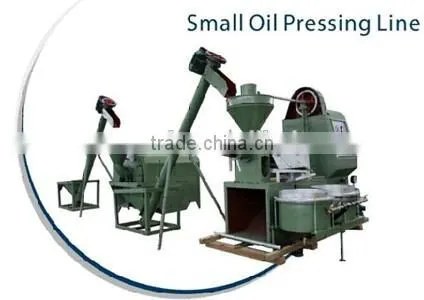

6: the oil processing line for walnut oil press machine

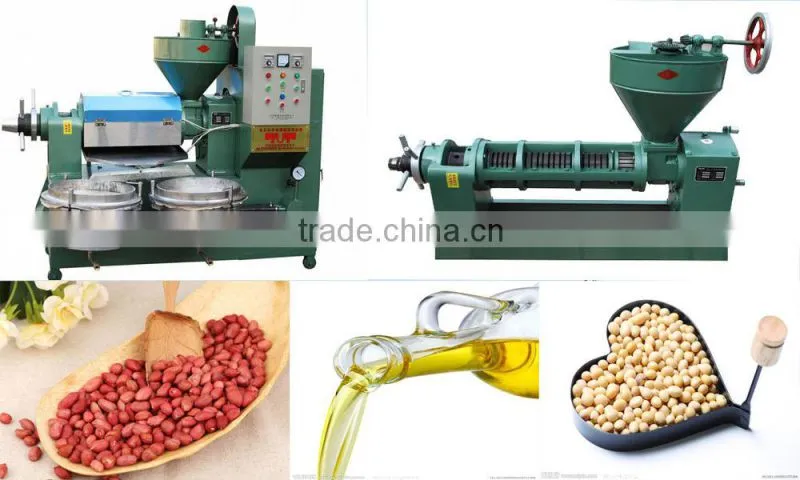

7two different type of our walnut oil press machine
Through the semi-automatic oil press machine , you can get the crude oil as final products And through the full-automatic oil press machine , you can get the edible refined oil as final products . You can choose the proper one according to the oil requirements .
Generally , the packaging of our walnut oil press machine is wooden case , but we can adjust our shipment plans according to the requirements of our customer . We always adhere to the principle that " customers come first " and try our best to make the customer satisfied with our performance .

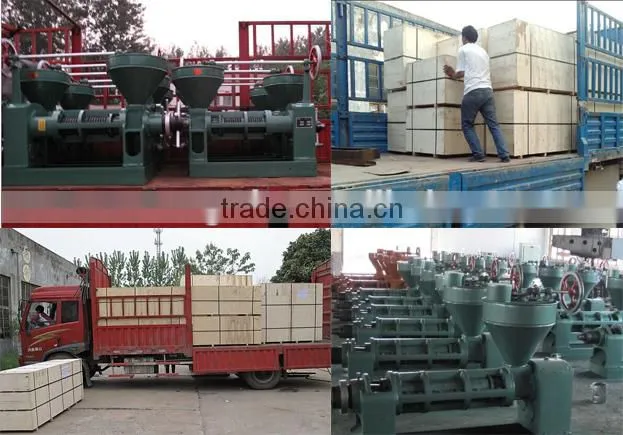

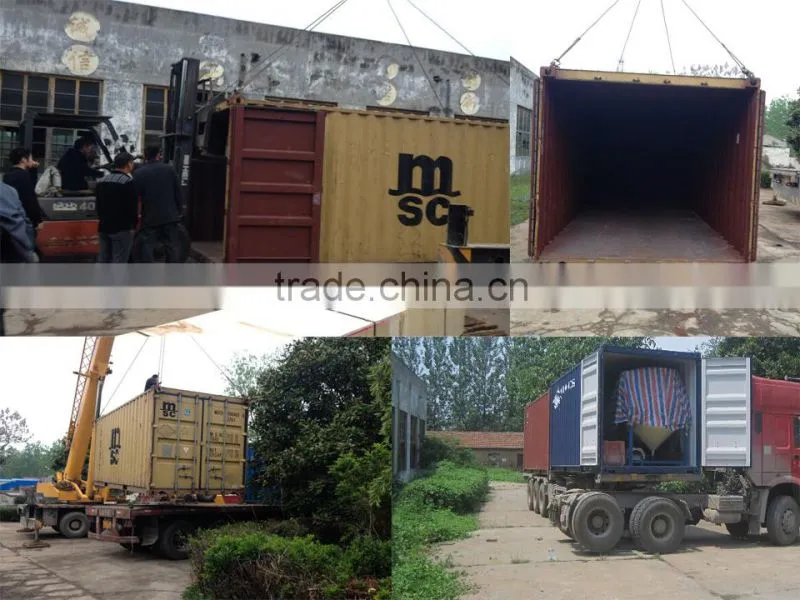

some pictures of our shipment
1 the shipment : we will be responsible for the shipment details and arrange related thing for customers according to their requirements .
2 the production: after we receive the deposit from the customers , we will arrange the production . And we can make delivery within 10 days after receiving the deposit .
3the installation . We will make installation before the shipment . In other words , when the customers get our machine , it can be directly used for oil pressing .
4 the matched equipment . For some special raw materials , like copra , we will also provide the copra crusher , and roaster .
For palm kernel , we can also provide you the palm kernel crusher and roaster . In this case , the oil out put will be much higher than common directly extraction .
5:the exporting experience . We have been in this field for many years . We can help customers solve all related questions about the exporting procedure .
6 the operation instruction . when our customers get our machine , we can also teach the customers the operation procedure through the internet . We will make the customers know the machinery operation in the short time .
7 the guarantee time. Our guarantee time of our machinery equipment is 6 months .
Six months against manufacturing defects and faulty materials.During the guarantee period , the supplier agrees to replace the faulty free of charge to the clients ( quick-wear parts don’t included ) . This guarantee does not applicable for the consumable parts and the parts damaged by operator’s mishandling , improper application and maintenance , power surges and human sabotages
Our company has been in the field of walnut oil press machine for many years . We are professional manufacturer in the oil machinery production field . Our company always adhere to the principle that " customers come first " . And we will help solve the problems for our customer with all heart . We use the high quality raw materials to produce our machinery equipment . In this case ,We can guarantee the good quality of our final products , even tiny part of our machine . In other words , we can guarantee the service life of our machine .
We have been in exporting field for many years . So we have our cooperated forward agent . We can help our customers to make shipment in a fast and cheap way . We hope we can make our customers feel our warm service in the order procedure . And our machinery equipment has been exported to many countries ,such as Romania , Madagascar ,Nigeria , Greece , Tansania and so on . The feedback is very well .
When you choose us , we promise you that we can make you sastified with our service , with our machinery equipment and everything .
Hope we can build good cooperation relationship in a long term .
Our minium order is one set . And we can provide 100 sets machinery equipment per month .
The shipment port can be Shanghai , Qingdao and Guangzhou .
We can adjust the shipment details according to the requirements of the customers .
Our payment terms generally are 30%payment in advance and the balance payment before the shipment .
