Mechanical CNC punching machine/Hole punch press
- 1000 Set / Sets per Month
- Qingdao Port china
- T/T
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | CNC | Power Source: | Mechanical |
Place of Origin: | Shandong, China | Brand Name: | Hao Yiyuan | Model Number: | HYSK |
Voltage: | 380 or as requirement | Power(W): | According to the type | Weight: | According to the type |
Dimension(L*W*H): | According to the type | Certification: | ISO9001 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Mechanical CNC punching machine/Hole punch press
Dear sir/madam
Welcome to our website. There are many kinds of CNC Punching Machines, which can meet your demand. In the below sections, i wil show you some general cnc punching machine in our company. And also we can design the machine, depending on your requirements.
If you have some special demand, please don't hesitate to let me konw. We will reply to your questions the first time.
Yours
George
Product Description
Hao YIyuan CNC Punching Machine can been widely used in voltage switchgear, control panel, air conditioner panel,box,cabinet, shell, metal furniture, kitchen utensils and appliances, advertising and other panel punching processing companies. And also the machines can be designed according to your requirements.
Specification
Closed(O-Type)
HYZT30B |
Name | Unit | HYZT30B | |||
Appearance | Closed O-Type | ||||
Power | Mechanical | ||||
Nominal force | KN | 300 | 500 | ||
Workpiece size | mm | 1250*2500 | 1250*2500 | ||
1500*2500 | 1500*2500 | ||||
Max plate feeding speed | m/min | 80 | |||
Max thickness of sheet | mm | 3 | 6 | ||
Number of stations | Pcs | 16/20/24/32 | 16/24/32 | ||
Punching Accuracy | Mm | ±0.1 | |||
Punching frequency | Hpm | 260 | 180 | ||
Air pressure | Mpa | 0.55 |
Open C-Type
HYZT25A |
Name | Unit | HYZT25A | |||
Appearance | Open C-Type | ||||
Power | Mechanical | ||||
Nominal force | KN | 250 | |||
Workpiece size | mm | 1250*2500 | 1500*2500 | ||
Max plate feeding speed | m/min | 60 | |||
Max thickness of sheet | mm | 3 | |||
Number of stations | Pcs | 12/16/20 | |||
Punching Accuracy | Mm | ±0.1 | |||
Punching frequency | Hpm | 220 | |||
Air pressure | Mpa | 0.55 |
Picture Show
The details of the CNC Punching Machine | |
The processed products

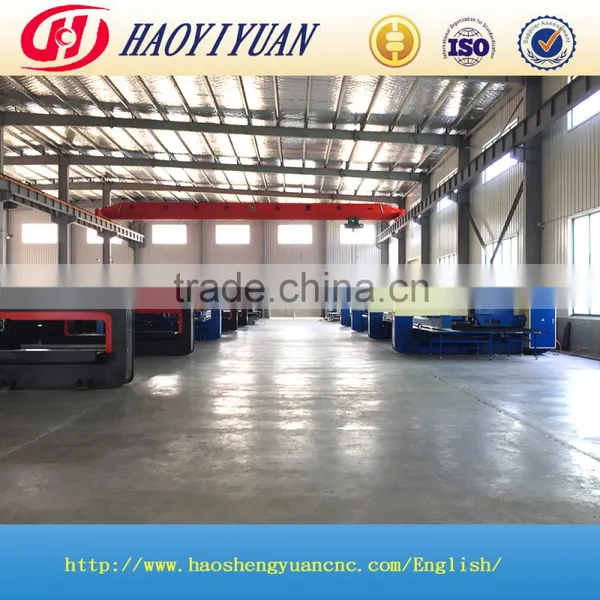

Production Plant
Company Information
Qingdao HaoYiYuan machinery co., LTD., located in the beautiful west coast of Qingdao, which is near by the Qingdao qianwan port, Qingdao international airport, the traffic is very convenient.
Our company mainly produces are CNC punching machine, CNC turret punch, nc feeder, nc plate CNC punch press and non-standard punching production line equipment, etc.
HaoYiYuan strives for perfection, strive for perfection, and always insist the integrity rigorous and pragmatic attitude on giving the first-class products, first-class service to our customer.
FAQ
1. Installation
There are one to three engineers will be send to your company to install and test the machine;(costomer need to pay for the engineers' business trip expense, and prepare the assembly tools)
2. Payment
30% down payment and the balance should be paid before shipment.
3. OEM or ODM
We can do that for you.
4. Supply full english documents
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
