Advertising Sign CNC Punching Press Machine/Punching Press Machine/Punching Presses
Product Description
HaoYiYuan CNC Punching Machine can be widely used in voltage switchgear, control panel, air conditioner panel,box,cabinet, shell, metal furniture, kitchen utensils and appliances, advertising and other panel punching processing companies. And also the accessories can be designed according to your requirements.
Specification
Closed(O-Type)
| HYZT30B | HYZT30BY |
|
|
| Name | Unit | HYZT30B | HYZT30BY | ||||||
| Appearance | Closed O-Type | Closed O-Type | |||||||
| Power | Mechanical | Hydraulic | |||||||
| Nominal force | KN | 300 | 500 | 300 | 500 | ||||
| Workpiece size | mm | 1250*2500 | 1250*2500 | 1250*2500 | 1250*2500 | ||||
| 1500*2500 | 1500*2500 | 1500*2500 | 1500*2500 | ||||||
| Max plate feeding speed | m/min | 80 | 80 | ||||||
| Max thickness of sheet | mm | 3 | 6 | 3 | 6 | ||||
| Number of stations | Pcs | 16/20/24/32 | 16/24/32 | 16/20/24/32 | 16/20/24/32 | ||||
| Punching Accuracy | Mm | ±0.1 | ±0.1 | ||||||
| Punching frequency | Hpm | 260 | 180 | 550 | 350 | ||||
| Air pressure | Mpa | 0.55 | 0.55 | ||||||
Open C-Type
| HYZT25A | HYHCK |
|
|
|
| Name | Unit | HYZT25A | HYHCK | ||||||
| Appearance | Open C-Type | Open C-Type | |||||||
| Power | Mechanical | Hydraulic | |||||||
| Nominal force | KN | 250 | 400-1600(as your actual demand) | ||||||
| Workpiece size | mm | 1250*2500 | 1500*2500 | 1500*800 | 2000*800 | 2500*800 | |||
| Max plate feeding speed | m/min | 60 | 40 | ||||||
| Max thickness of sheet | mm | 3 | 15 | ||||||
| Number of stations | Pcs | 12/16/20 | 6-9 | ||||||
| Punching Accuracy | Mm | ±0.1 | ±0.15 | ||||||
| Punching frequency | Hpm | 220 | 50-80 | ||||||
| Air pressure | Mpa | 0.55 | 0.55 | ||||||
Picture Show

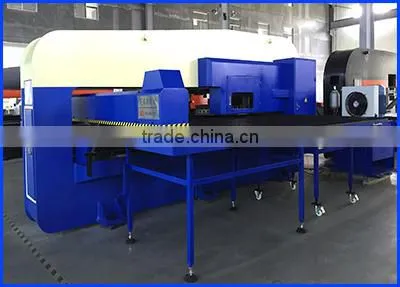

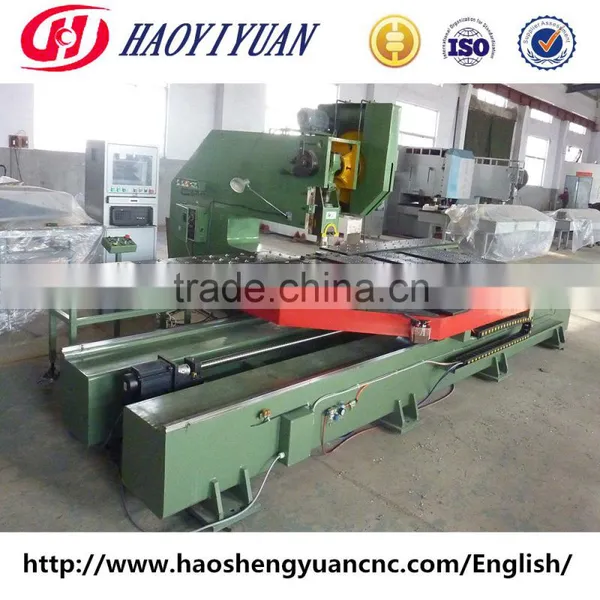

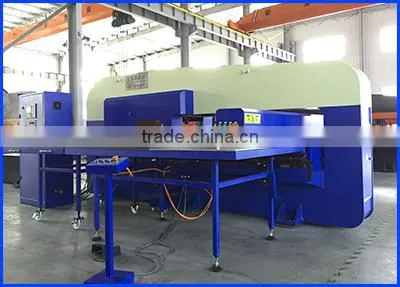

HaoYiYuan CNC Punching Machine

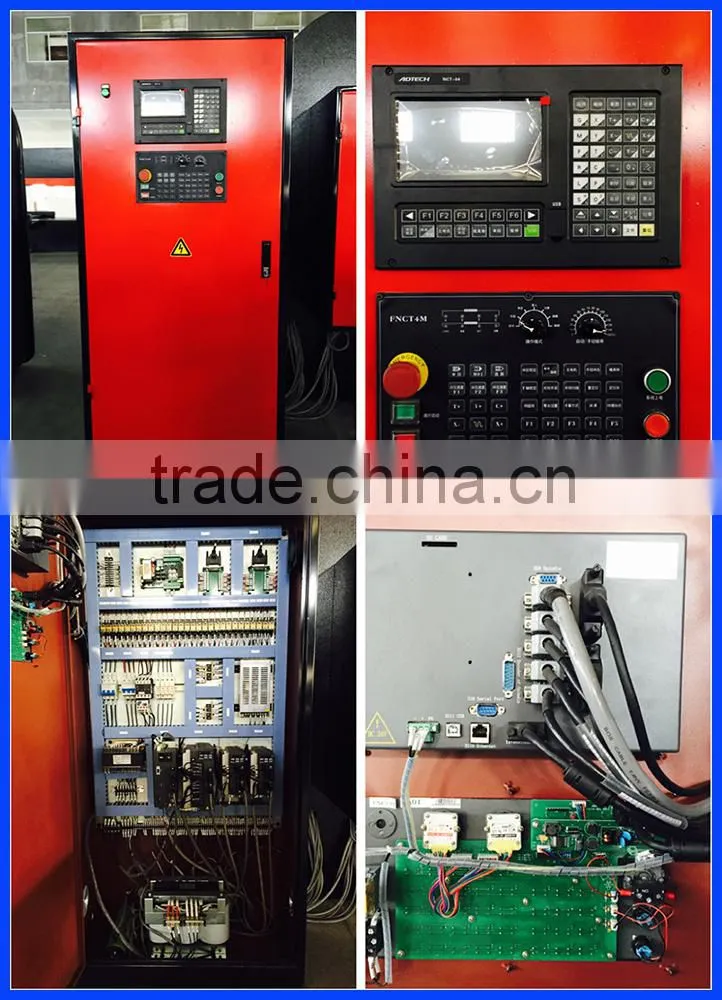

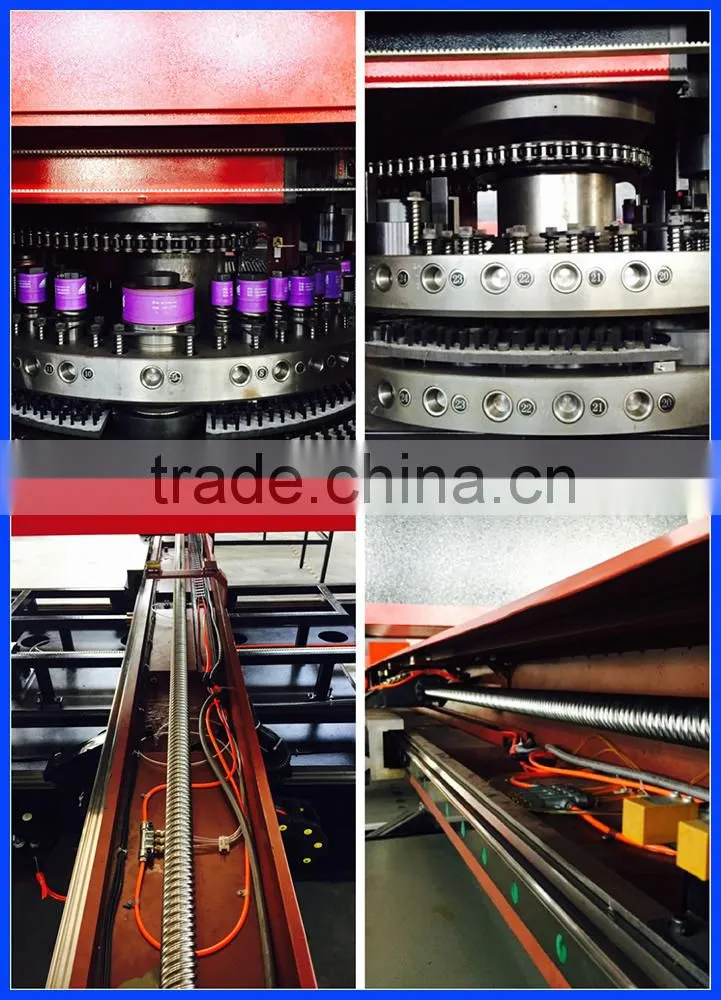

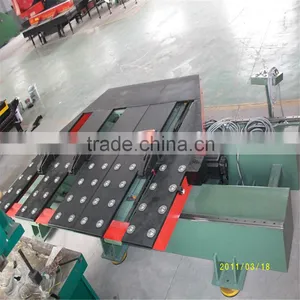

The detail of our Punching Machine

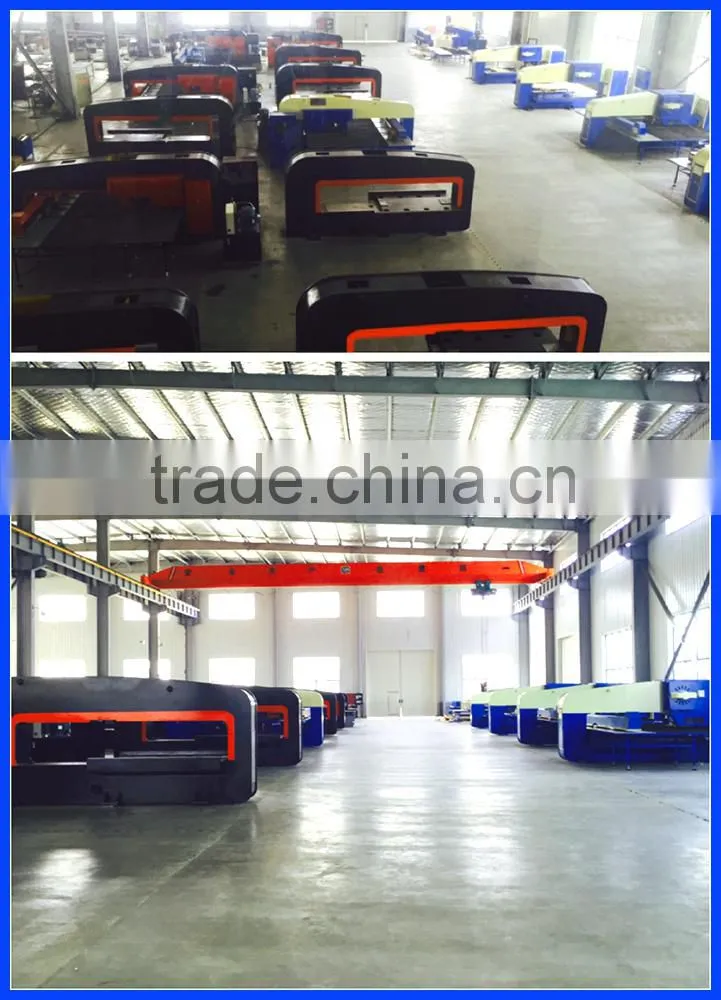

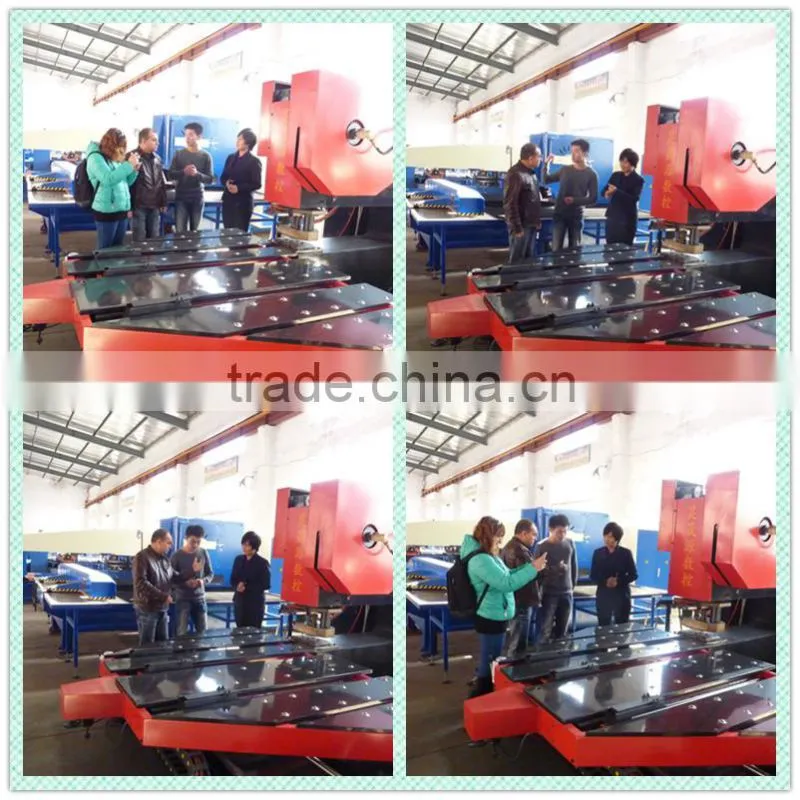

The other Information
Company Information
Qingdao HaoYiYuan machinery co., LTD., located in the beautiful west coast of Qingdao, which is near by the Qingdao qianwan port, Qingdao international airport, the traffic is very convenient.
Our company mainly produces are CNC punching machine, CNC turret punch, nc feeder, nc plate CNC punch press and non-standard punching production line equipment, etc.
HaoYiYuan strives for perfection, strive for perfection, and always insist the integrity rigorous and pragmatic attitude on giving the first-class products, first-class service to our customer.
FAQ
1. Installation
There are one to three engineers will be send to your company to install and test the machine;(costomer need to pay for the engineers' business trip expense, and prepare the assembly tools)
2. Payment
30% down payment and the balance should be paid before shipment.
3. OEM or ODM
We can do that for you.
4. Supply full english documents
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
