Marble gangsaw machine Block cutting 90 blades Quality Choice

Specifications

Gangsaw machine for processing marble slabs 80 baldes 2000mm width with CE approved



















Packaging Detail:	PLASTIC WEAVEN BAGS AND POLYWOOD CASES
Delivery Detail:	WITHIN ONE MONTH















Specifications

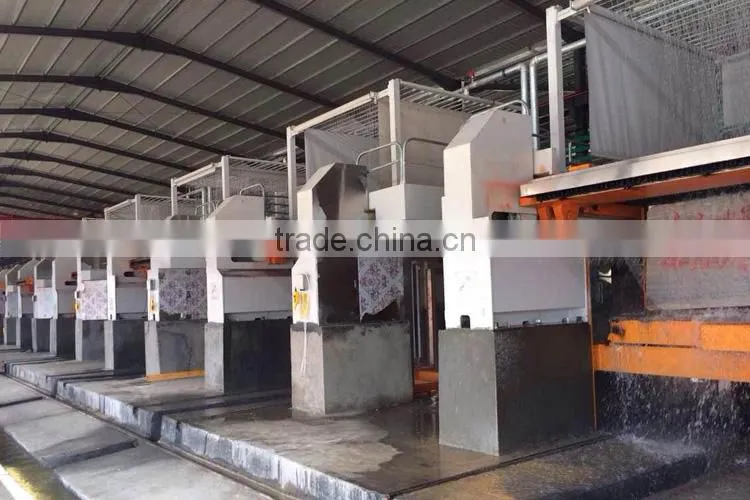

PROFESSIONAL STONE MACHINES FOR PROCESSING STONE/Marble/Quartz SLABS



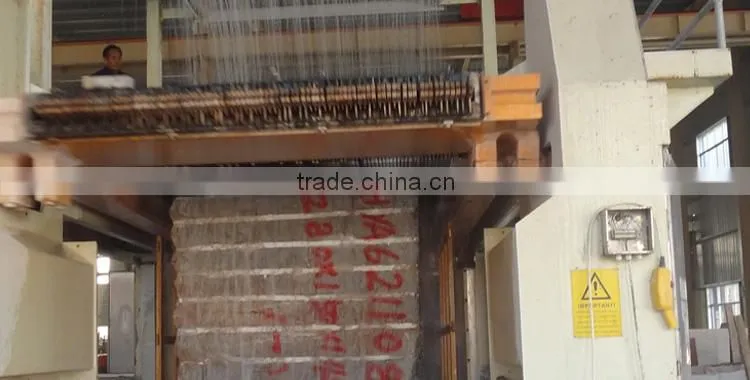

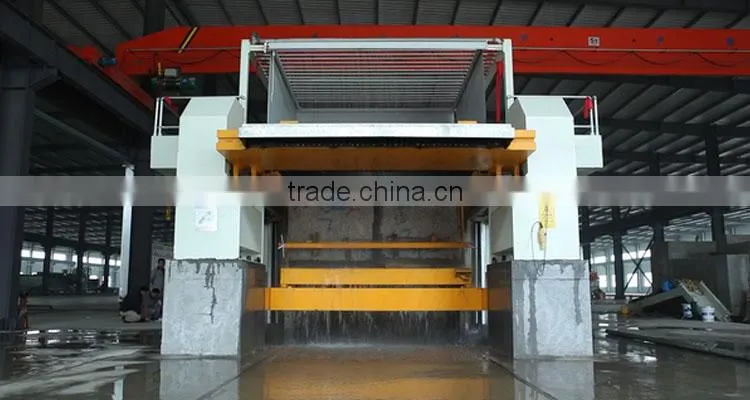

HLGS80 GANG SAW FOR MARBLE

Description:

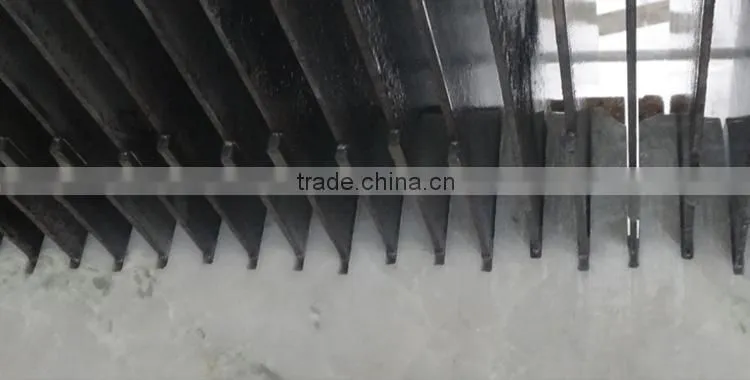

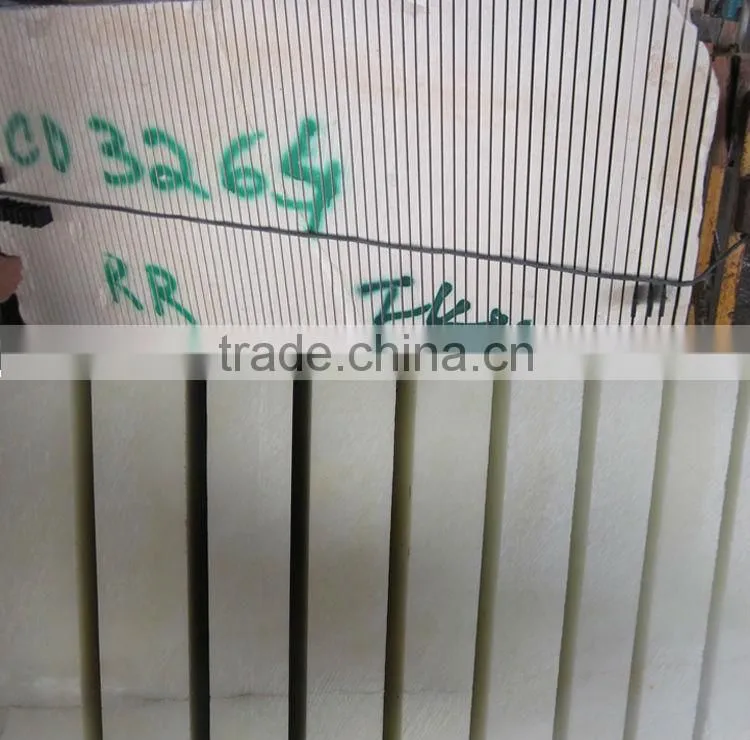

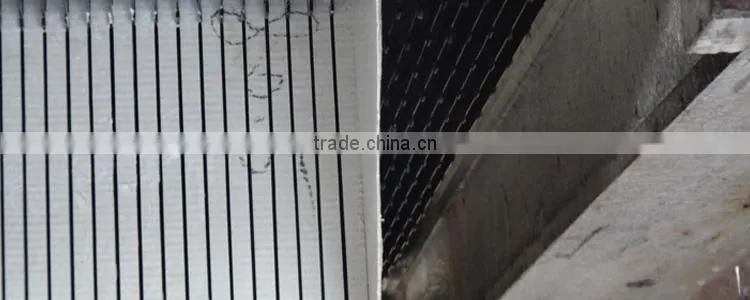

A blade stoke of 800mm facilitates the evacuation of slurry which results from the sawing of marble and, in particular, of non-crystalline materials, preventing the blades from clogging while ensuring a high quality cut. This is particularly important when sawing defective and fractured blocks.

An 800mm stroke also means fewer cycles/minute and consequently less mechanical stress on the relative components.



ARTICULATED RECTILINEAR GUIDES

Movement of blade holder frame on articulated

guides.

This system reduces to a minimum problem of

the blade holder frame.It greatly reduces maintenance

costs because it does not require replacement

like the traditional slideways which are subject to

continuous wear.



EQUAL DISTRIBUTION OF MECHANIXAL

THRUST OVER ALL MACHINE COMPONENTS





Advantages of two connecting rods:

· All the energy and mechanical thrust towards the blade holder is spread on two connecting rods and two cranks instead of just one.

· The two connecting rods which are attached to the extremes of the blade holder help the articulated guides to ensure that it’s movement remains perfectly rectilinear without any deviation. This is especially important when there are more blades on one side of the frame(the machine applies greater pressure where there are more blades),and when the blocks are of different heights(because initially more pressure would be applied on the higher block).





THE ROTATING LEAD NUTS which worm screws of the block trolley platform are situated above the columns and lubricated automatically.



   BATTERY UNIT

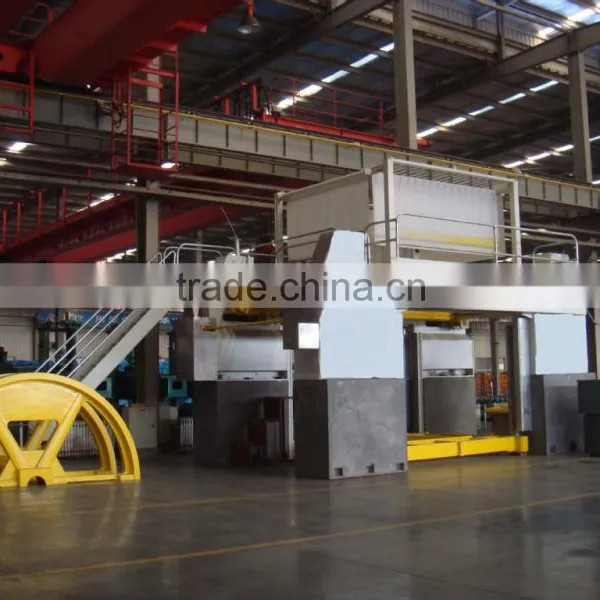

Details of the battery unit. The battery supports have been designed to allow easy maintenance and facilitate the replacement of the roller bearings without having to break the cement foundations. The flywheel weights 8 tons and has a diameter of 3300mm



 TECHNICAL DATA:

max.block size:	3200(L)×2000(W)×2000(H)mm
Blades number	80
main motor power:	110kw
Up-down motor	11kw
Table motor	1.5kw
Transfer table motor	1.5kw
Saw frame reciprocating frequency	90t/min
Rotating speed of flying wheel	90 rpm
flying wheel shaft diameter	280mm
speed	8-32cm/h
stroke of the blades:	800mm
Up-down stroke	2100mm
blades length	4400mm
water consumption	10L/min/blade
total weight:	55ton
dimensions:	12425 (L)×4700(W)×3800(H)mm



STANDARD ACCESSORIES:

1	pcs	Motorized block trolley, dimensions: 3.2x2.05m, carrying capacity: 30 tons.
1	pcs	Electrical control Board
1	sets	Hydraulic tensioner and oil pump
80	sets	Hydraulic hangers for blades
160	pcs	Blades spacers (choose one type from 22/32mm)
8	pcs	tightening chain
4	pcs	tightening plate
1	pcs	Dynametric Spanner
