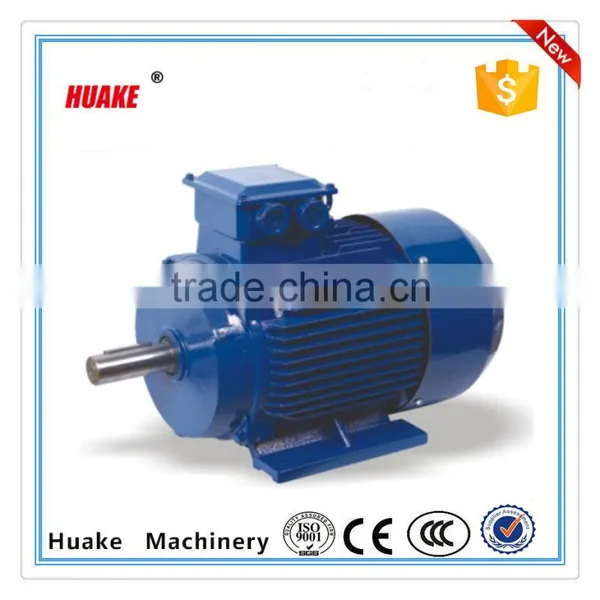

High Quality YE2 Series Three Phase Asynchronous Electromotor

High Quality YE2 Series Three Phase Asynchronous Electromotor thumbnail-1
High Quality YE2 Series Three Phase Asynchronous Electromotor thumbnail-2
High Quality YE2 Series Three Phase Asynchronous Electromotor photo-1

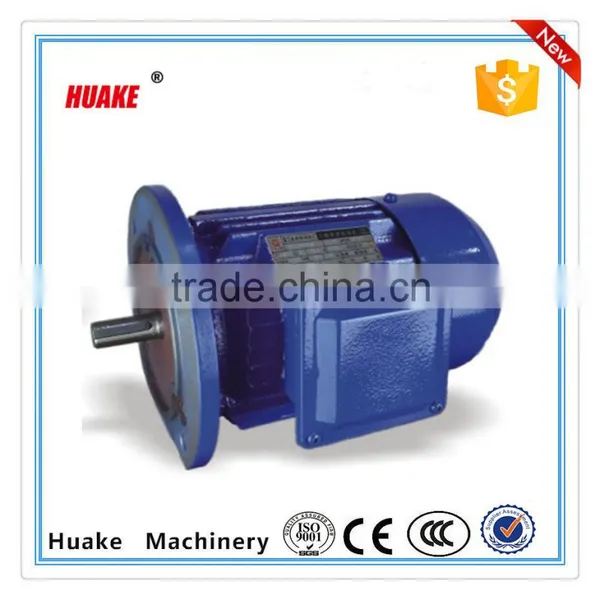

High Quality YE2 Series Three Phase Asynchronous Electromotor photo-2
US$ 50 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HUAKE
Model Number:
YE2
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Qingdao Chinese Science Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HUAKE
Model Number YE2
Type Asynchronous Motor
Frequency 50/60Hz
Output Power 0.18KW-560KW
Protect Feature Totally Enclosed
Phase Three-phase
Certification CCC, CE, ROHS, UL, VDE
AC Voltage Other, 380V/220V
Place of Origin Shandong, China
Efficiency IE 3

Product Description
Y2 Series Cast of Iron Three Phase Induction Motor is specially designed for European market, whose terminal box is located on the top of motor.They are totally enclosed and fan-cooling designed. They are newly designed in conformity with the relevant requirements / rules of IEC&DIN42673 standards.they advantage of high efficiency, long working life, energy saving, high starting torque, low noise, small vibration, big breakaway torque, reliable operation performance, easy & convenient maintenance. Fixing measurement and power grade completely conform to IEC standards.
--Y2 series three phase asynchronous electric motors are widely used in many fields, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, agitator, air compressor etc. We also can supply aluminum housing type for frame size under the standard of IEC132.

For the Connection Model of Y2 motor, please refer to the Name Plate on the motor (The Y Connection is adopted by motors' Output equal or below 3kW; The Delta-Connection is adopted by motors' Output above 4kW).

Y2 Motor can be equipped with PTC.

--For motor of frame size 160MM and above can be equipped with re-greasing system.



SPECIFICATIONS:

1.capacity:0.12-315kw

2.pole;2-10,Good design
3.Cooling method: IC411
4.match:pump,blower,fan



TECHNOLOGY DATA:

 220v 380v 3 phase electric motor

Type

Output kw

Sync. Speed r/min

 Current  A

 Efficiency%

 Power factor cosφ

torque/Rated torque

Locket current/Rated torque

Pull out torque/Rated torque

  movement

Noise

230v

380v

690v

YE2-801-2

0.75

2885

3.0

1.7



77.4

0.83

2.3

6.8

2.3

0.001

62

YE2-802-2

1.1

2885

4.2

2.4



79.6

0.83

2.3

7.3

2.3

0.0013

62

YE2-90S-2

1.5

2885

5.5

3.2



81.3

0.84

2.3

7.6

2.3

0.002

67

YE2-90L-2

2.2

2890

7.8

4.5



83.2

0.85

2.3

7.8

2.3

0.0026

67

YB2-100L-2

3

2895

10.2

5.9



84.6

0.87

2.3

8.1

2.3

0.0042

74

YE2-112M-2

4

2895



7.6

4.4

85.8

0.88

2.3

8.3

2.3

0.0058

77

YE2-132S1-2

5.5

2920



10.4

6

87

0.88

2.2

8

2.3

0.0128

79

YE2-132S2-2

7.5

2915



13.8

8

88.1

0.89

2.2

7.8

2.3

0.0151

79

YE2-160M1-2

11

2945



20

11.5

89.4

0.89

2.2

7.9

2.3

0.0489

81

YE2-160M2-2

15

2945



26.9

15.5

90.3

0.89

2.2

8

2.3

0.0559

81

YE2-160L-2

18.5

2940



33

19.1

90.9

0.89

2.2

8.1

2.3

0.0648

81

YE2-180M-2

22

2960



39.1

22.6

91.3

0.89

2.2

8.2

2.3

0.0808

83

YE2-200L1-2

30

2965



52.9

30.5

92

0.89

2.2

7.5

2.3

0.163

84

YE2-200L2-2

37

2965



64.9

37.5

92.5

0.89

2.2

7.5

2.3

0.172

84

YE2-225M-2

45

2965



78.6

45.4

92.9

0.89

2.2

7.6

2.3

0.302

86

YE2-250M-2

55

2965



95.7

55.3

93.2

0.89

2.2

7.6

2.3

0.42

89

YE2-280S-2

75

2980



129.7

74.9

93.8

0.89

2

6.9

2.3

0.986

91

YE2-280M-2

90

2970



155.1

89.5

94.1

0.89

2

7

2.3

1.04

91

YE2-315S-2

110

2980



187.1

108

94.3

0.9

2

7.1

2.2

1.33

92

YE2-315M-2

132

2980



223.8

129.2

94.6

0.9

2

7.1

2.2

1.5

92

YE2-315L1-2

160

2980



267.7

154.6

94.8

0.91

2

7.1

2.2

1.67

92

YE2-315L2-2

200

2980



333.9

192.8

95

0.91

2

7.1

2.2

1.88

92

YE2-355M-2

250

2985



417.4

241

95

0.91

2

7.1

2.2

4.02

100

YE2-355L-2

315

2985



525.9

303.6

95

0.91

2

7.1

2.2

4.86

100



High quality YE2 series three phase asynchronous electromotor

MORE SIMILAR PICTURE:





FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by . It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
Q4: If we don’t find what we want on your website, what should we do?
A: We offer three options:
1, You can email us the pictures, drawings or descriptions details. We will try to design your products on the basis of our standard models
2, Our R&D department is professional for OEM/ODM products by drawing/samples, you can send us samples, we do customized design for your bulk purchasing.
3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, shoes machines and so on.
Q5: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing
Q6: How about your product delivery time?
A: Normally for 20'container, it takes 25-30 workdays for worm and cycloid gearbox, 35-40 workdays for helical bevel gearbox,40-60 days for planetary gearbox.
