Henan Hot Selling Rotary Kiln for Shale/Carbon

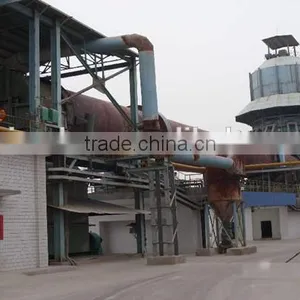

Henan Hot Selling Rotary Kiln for Shale/Carbon thumbnail-1

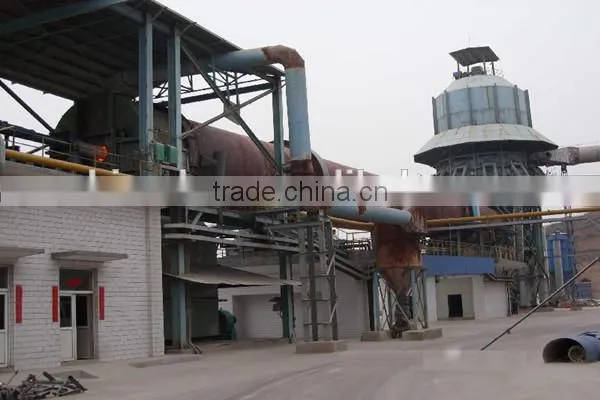

Henan Hot Selling Rotary Kiln for Shale/Carbon photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
300-6000t/d
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Henan Dashan Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Production Capacity 300-6000t/d
Place of Origin Henan, China
Brand Name China DSM
Model Number many kinds
Power(W) 55000-710000
Weight 177-885t
Certification ISO CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

Introduction of Rotary Kiln for Shale/Carbon



Rotary kiln is the main equipment for cement clinker sintering. The kilns produced by our company can be used for chemical industry, metal large industry and ect., for dry or wet materials. By renovation, the sintering system adopts the newest technology at home and abroad. For high automation degree, industrial TV be used at the kiln head for monitoring fire, and fluorescent screen be used to simulate process flow; infrared scanning system has been adopted for sintering zone to directly reflect the burning conditions on the computer.



Features of Rotary Kiln for Shale/Carbon



1) Best quality cement rotary kiln;

2) Energy saving Rotary kiln;

3) Easy and safe operation;

4) Environmental protection.



Working Principle of Rotary Kiln for Shale/Carbon



The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, material gradually moves down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln, sometimes in the same direction as the process material Rotary Kiln Dryer, but usually in the opposite direction Rotary Kiln Operation. The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe Rotary Dryer which acts like a large bunsen burner. The fuel for this may be gas, oil or pulverized coal.



Technical parameters of Rotary Kiln for Shale/Carbon





Model No.( m)

φ2.8/2.5×44

φ3×48

φ3.2×50

φ3.3×50

φ3.5×54

φ4×60

φ4.3×64

φ4.8×74

φ5.0×74

Capacity(t/d)

300

600-700

1000

1200

1500-1800

2500

3500

5000

6000

Kiln Shell Slope(%)

3.5

3.5

3.5

4

4

4

4

4

4

Supporters ( pcs)

3

3

3

3

3

3

3

3

3

Thrust Roller Type

Mechnical

Mechnical or

 Hydraulic

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Hydraulic

 Rotating

Speed

of the Kiln

Main

Driving

(r /min)

0.445-2.22

0.676-3.38

0.36-3.57

0.36-3.57

0.39-3.9

0.41-4.07

0.4-4.0

0.35-4

0.35-4

Auxiliary

 Driving (r/min)

4.75

9.36

6.5

5.61

7.66

8.2

7.93

8.52

7.58

Main

Driving

Motor

Model

ZSN4-

225-21

Z2-101

ZSN4-

280

-191B

ZSN4-

280-

191B

ZSN4-

315-

092

ZSN4-

355-

092

ZSN4-

355-

12

ZSN4-

450-092

Lp44

ZSN4-

450-092

Power (Kw)

55

100

160

160

220

315

400

630

710

Speed Range ( r/min)

~1000

~1500

1500

1500

1000

1000

100-1000

1500

87.5

~1000

Voltage (V)

440

220

440

440

440

440

440

660

600

Reducer

 Model

ZS145-

1-1

ZS145-

1-1

ZSY-450-

40-V

ZSY450

-40

NZS995-

28VIBL

YNS1110-

22.4VBR

YNS1400-

3105VIBL

JH710C-

SW305-40

JH280C-

45

Speed Ratio

49-63

50

40

40

28

22.4

31.5

42.226

28

Auxiliary Driving

Motor

Model

Y122M-4

Y160M-6

Y160M-4B

Y160M-4

Y200L1-6

Y180L-4

Y200L-4

Y225M-4 lp44

Y250M-4

Power ( kw)

4

7.5

15

11

18.5

22

30

55

55

Rotating

Speed (r/min)

1440

970

1460

1460

970

1470

1470

1480

1480

Voltage ( V)

380

380

380

380

380

380

380

380

380

Reducer

Model

ZL35-16

ZL35-7-1

ZSY160-31.5-II

ZSY355-31.5

ZSY355

YNS440-45IIR

YNS497-45ZC

JH220C-

SW302-28

JH280C-45

Speed Ratio

40.44

14

31.5

31.5

45

45

45

28

45

Total Weight

( not including

refractoy

bricks) ( t)

177

213

280.6

317

341

434

562

854

885





Pictures of Rotary Kiln for Shale/Carbon



 Henan Hot Selling Rotary Kiln for Shale/CarbonHenan Hot Selling Rotary Kiln for Shale/CarbonHenan Hot Selling Rotary Kiln for Shale/CarbonHenan Hot Selling Rotary Kiln for Shale/CarbonHenan Hot Selling Rotary Kiln for Shale/Carbon



Our Services

1.Install and debug the equipment;

2.Send the first-line operators on site;

3.Examine the equipment regularly.



Our company and productsHenan Hot Selling Rotary Kiln for Shale/CarbonHenan Hot Selling Rotary Kiln for Shale/CarbonHenan Hot Selling Rotary Kiln for Shale/CarbonHenan Hot Selling Rotary Kiln for Shale/Carbon
