Specifications
1.One year warranty2.ISO 9001:2000; CE, GOST, SGS
3.Longer usage life

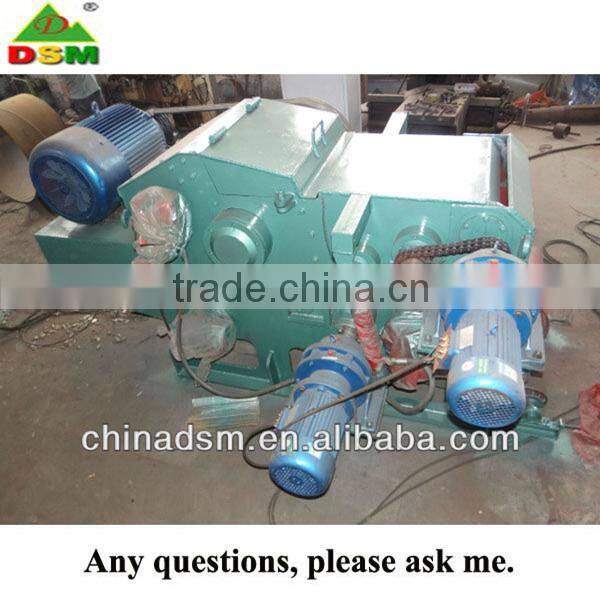

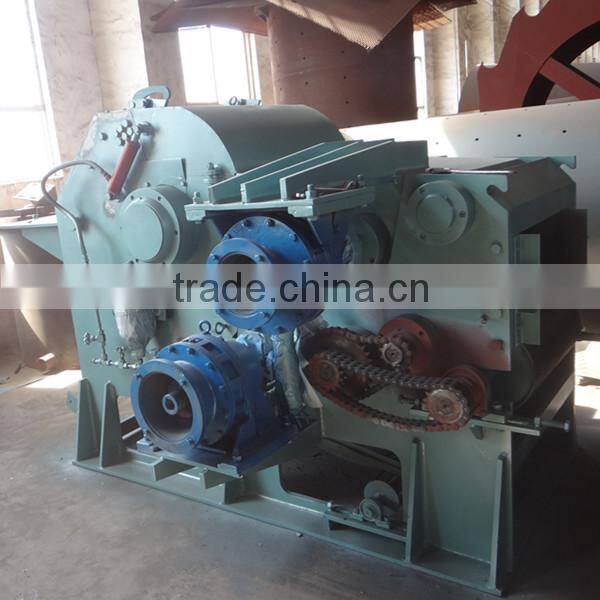

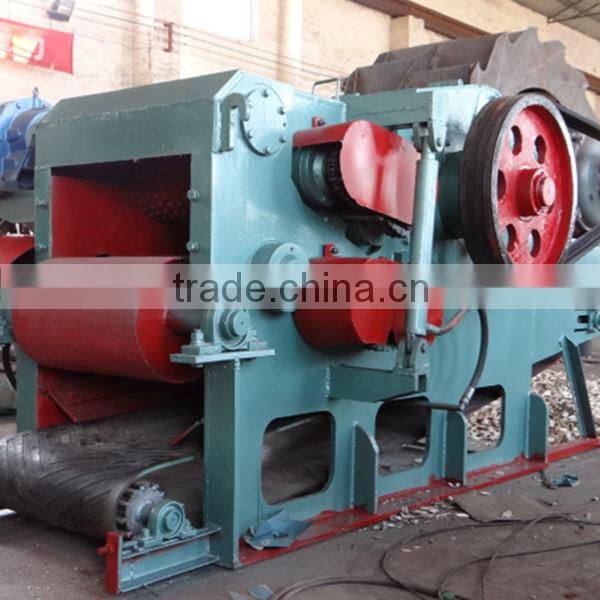

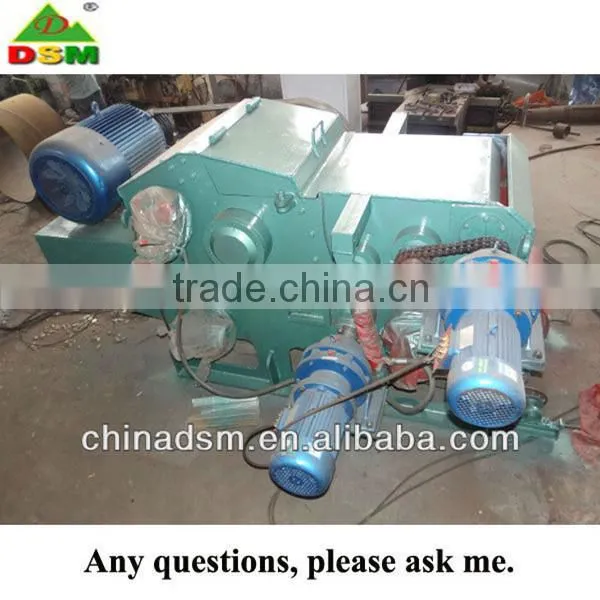

Wood Drum Chipper With Belt Conveyor With Ce Factory Price
Introduction:
Drum wood log chipper
Drum wood log chipper also called drum wood chipper, it chip big round wood logs to wood chipps or sawdust, but the feed size of wood chipper is limited, so please tell us the diameter of wood logs, and what is the size of the final chips or sawdust, please contact us if you are interested in our wood chipper.
Usage:
The product structure is advanced , cutting sheet material of high quality raw materials adaptable light , easy operation and maintenance . The main raw material is cutting small trees , timber harvesting, processing residues ( such as branches, twigs ,skins, planks, logs core , waste veneer , etc. ) , can also be used to cut non-wood raw materials ( such as sugar cane , reeds, bamboo etc. ) .
Features:
Drum Chipper series is special equipment for producing wood chips, this product is widely used in particleboard plant, medium and high density fiberboard factory,stubble plants, biomass power plant, wood chip plants and other industrial and production factories in the preparation section before the device of choice.
Spare Parts of Price of the machine
Scope
Its main raw material is small diameter wood, felling wood, process residua(such as branch,wattle, slab, batten, circle wood core, waste veneer,etc. Also can be used to cut non-woodiness raw material(such as sugarcane, reed, moso bamboo,etc).
Please see below technical parameter of the machine
| Name | Drum chipper | Drum chipper | Drum chipper | Drum chipper | Drum chipper |
| Model | XB215 | xB216 | XB218 | BX2113 | BX218D |
|
Inlet Size (mm) |
440*180 | 540*270 | 720*340 | 450*700 | 770*340 |
|
Quantity Of The cutting Blade |
2 | 2 | 2 | 2 | 2 |
| Spindle Speed | 592 | 590 | 650 | 500 | 650 |
|
The Max Proce Ssing diameter (mm) |
160 | 230 | 300 | 450 | 300 |
| Size Of The Chip (mm) | 30 | 30 | 30 | 38 | 30 |
| capacity(ton) | 4~6 | 7~9 | 12~15 | 15~30 | 15~20 |
| Electric Power(kw) | 54 | 55 | 110 | 200~250 | 132 |
|
Power Of The Feeder Motor(kw) |
1.5*1 | 1.5*1 | 1.5*1 | 3*1 | 1.5*1 |
| weight of main machine(kg) | 3000 | 4170 | 7300 | 7600 | 7800 |
| Overall Size(mm) | 1540*1240*1020 | 1980*1950*1250 | 2670*2150*1500 | 2870*2250*1550 | 2670*2250*1500 |

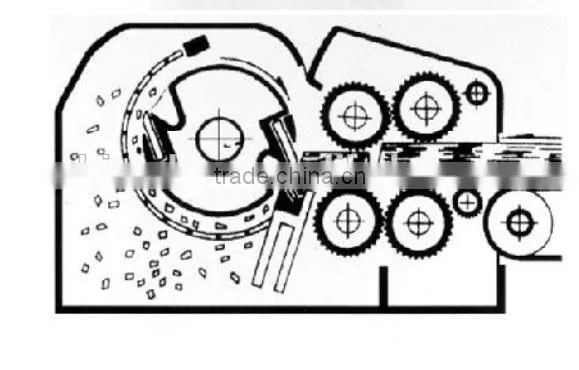

According to the thickness of the different raw material, top feeding roll can move up and down with the help of hydraulic system. The qualified final product will be discharged from the sieve and then out of the base, the bigger pieces will be crushed in the machine again.
Frequently Asked Questions:
1. Are you a trading company or a manufacturer?
We are a manufacturer.
2. How can I get to your company?
You can get a flight to Zhengzhou Xinzheng International Airport . and we can go to airport to pick you up directly.All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
3. How long is your guarantee?
One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
4. Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.
We will provide the best service within reasonable price. If you have any questions or interested in our wood pellet machine line, you can connect with us. Tell us the details about your request, we will reply you ASAP and design the products according to your need.
Dashan Mining Machinery Co., Ltd is a manufacturer.
The main products of the company are straw press block machine, stalk crusher , cotton stalk the grinder, multi-functionnal wood powder grinding machine, cutting machine,grass shredder, drum chipping machine, wood peeling machine, wood chip screening machine, sawdust machine, conveyor, and dryer the company integrates research, production, and sales as a whole.The company has long-term cooperation with domestic and foreign research institutes, has introducing adwanced technology, process and testing equipments at home and abroad.
