Hot Sale biological organic fertilizer granulator

Specifications

Place of Origin:CN;HEN;Brand Name: dashan; Product Type: fertilizer; Name; biological organic fertilizer granulator;







                     biological organic fertilizer granulator





Henan Dashan Mining Machinery Co., Ltd.















introduction of biological organic fertilizer granulator;



         The machine adopts none-drying technology produce, cold granulation, one-step forming. Has less investment, quick effect, good economic benefit and other characteristics.

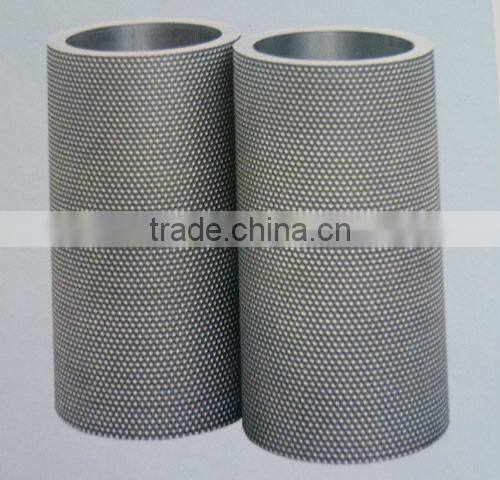

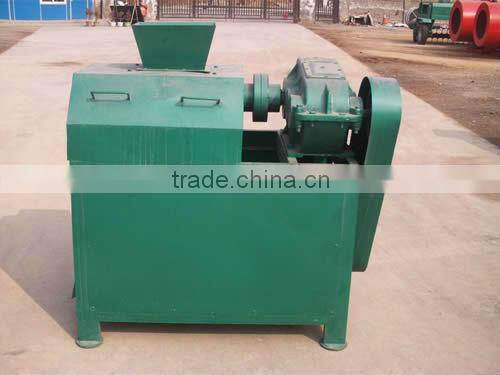

        This machine structure is the granulating, forming, screen divided into an organic whole, make it have beautiful appearance, simple operation, low energy consumption and other characteristics. The main components such as roll body made by a new type of metal delicate who have  corrosion resistance, wear resistance, impact resistance characteristics.And the DZJ-II double input rolls not only has above characters, our company upgrades the rack, Bearing frame  use  high quality anticorrosion casting, make it has better stability and can  highly improve the life of  rolling bearing and the main shaft. Transmission part adopts double input transfer, not only improve the  input power rate, but also make sure the lubrication of the transmission gear and sealability.This machine has advantages of compact structure, good stability, sealability, low noise , esay operation and service.Enjoy good reputation when it is first meet customer.



         Have wide adapability of the material,  this machine not only can adopt to granule for fertilizer , feed, chemical industry, but also especially for the rare earth, metallurgy, coal, biologicals,enviromental engineering, it still has good adaptability. To a certain extent, it complement fills in the domestic blank and at leading domestic level, it also is the main projects of  environmental protection.





        Dashan offers a proven range of m organic fertilizer granulator price achine sizes for high pressure granulating, which covers nearly all requirements of the clients.

















Working Principle of  biological organic fertilizer granulator;



                Raw materials are sent into hopper by fixed quantity feeder, when two rolls parallel each other horizontally, powder materials are continuously and evenly fed in the gap between two rollers by their gravities and forced compression. Then we get the round shape granular, but in order to get the better results, we suggest using a rotary screen to sieve the final products, qualified products will be put into bags, and unqualified products will be recycled mix with new material for the next granulating process.

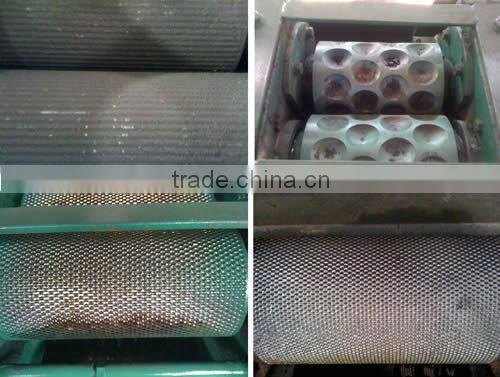

               Powder are entered into a roller press and compacted between the rollers to a strip with high density.

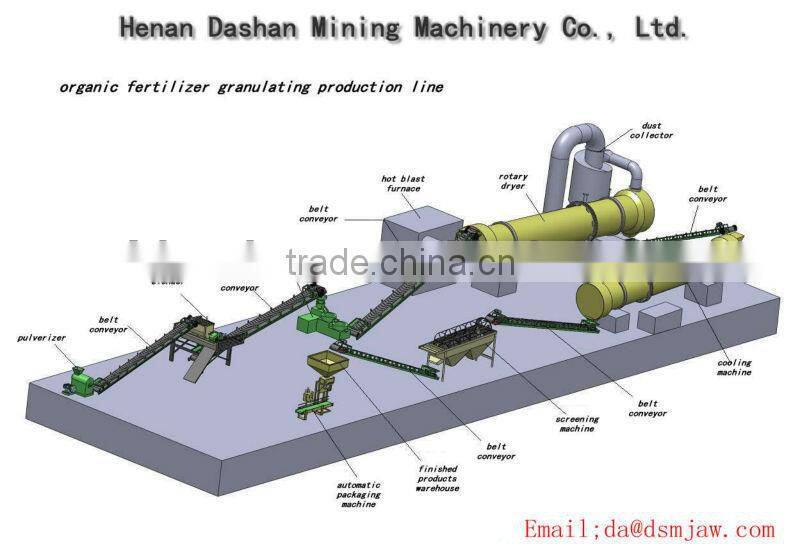

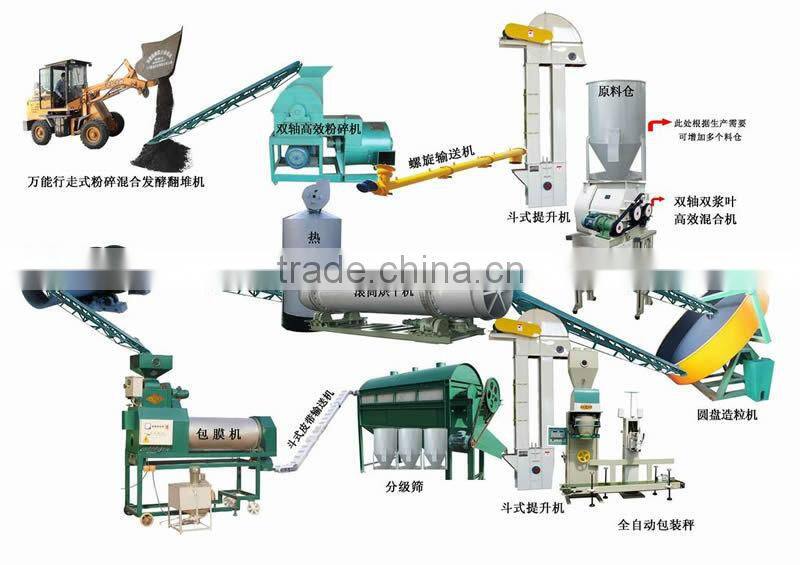

               We can design different diagram for different clients, we need to design the layout according our clients provide us some basic information about the size of their factory, and how do they want to place the equipments. Our target is making the process simpler, easier, more economic and more effective.













Applications of biological organic fertilizer granulator;







1. Fertilizers:



     potassium sulfate(SOP), potassium chloride, the Russian red potassium, NPK fertilizer, ammonium chloride, potassium nitrate, Ammonium Phosphate Monobasic(MAP), Diammonium phosphate(DAP), ammonium sulfate, ammonium bicarbonate, cow manure plus sulfur, humid acid etc.



2. Powders:



     zinc oxide,Bentonite, benefication agent, phosphate rock, aluminum fluoride Calcium Hypochlorite, calcium chloride, calcium phosphate, cryolite, TSP, SSP, antioxidant, potassium carbonate, rubber additives, metal powder, fillers, feed additives, silica, pharmaceutical intermediates, steel-making additives, lead oxide, melting agent, clay , steelwork dusts, etc.



3. Carbon Black / Graphite



4. FGD gypsum



5. Chemical powder: Sodium formateHCOONa, Magnesium acetate















Technical parameters of biological organic fertilizer granulator;





Model	DZJ-I 1.0	DZJ-I 2.0	DZJ-I 3.0	DZJ-I 4.0	DZJ-II 1.0	DZJ-II 2.0
Productivity (t/h)	1-1.5	1.5-2.5	2.5-3.5	3.5-4.5	1-2	1.5-2.5
Power (KW)	15	18.5	30	45	15	18.5
Compression roller	dia150*220	dia150*300	dia186*300	dia300*300	dia150*220	dia150*300
Feed size	<=0.5mm	<=0.5mm	<=0.5mm	<=0.5mm	<=0.5mm	<=0.5mm
Production specification	dia2.5-dia10	dia2.5-dia10	dia2.5-dia20	dia2.5-dia30	dia2.5-dia10	dia2.5-dia20
Reducer model	ZQH350	ZQH400	ZQH400	ZQH500	dedicated	dedicated
Material moisture	2%-5%	2%-5%	2%-5%	2%-5%	2%-5%	2%-5%



















DASHAN biological organic fertilizer granulator;



             Dashan has designed and manufactured roller presses and equipments for briquetting and compacting NPK fertilizer, powder, chemical, minerals, etc, since 2006. We take care of green field projects as well as of existing plants. Our services cover material tests, process layout, engineering, and supply of complete granulating plants or key equipments, guidance of installation and commissioning, training.

             Extensive experience and best quality production facilities guarantee a smooth workflow from start to finish.
