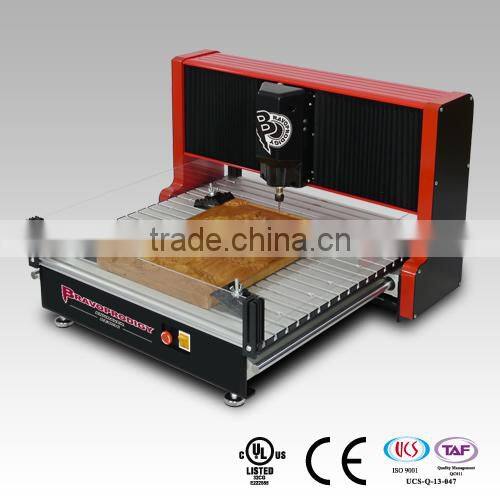

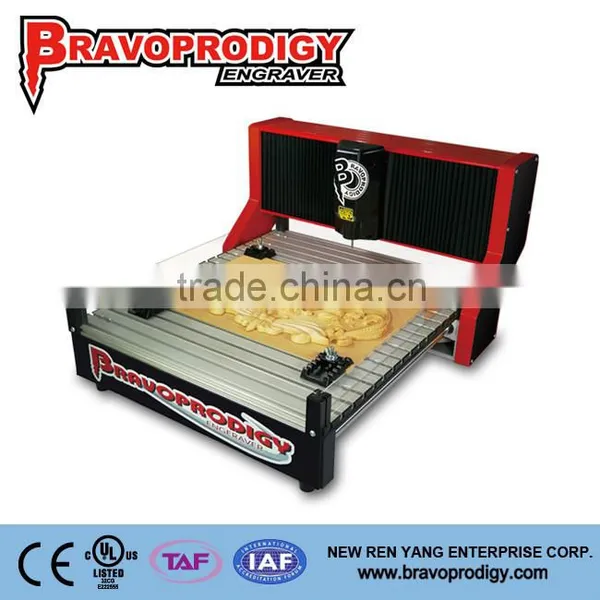

Bravoprodigy BE4036 wood carving wood cnc router
n SPECIFICATION
MODEL |
BE4036 |
|
Table Size |
X 535 × Y 600 mm ( 21.063 x 23.622 inch ) |
|
Table Load Weight |
Max. 10 kgs ( 22.03 lbs ) |
|
Engraving Area |
X410 × Y 370 × Z 70 mm ( 16.142 x 14.567 x 2.756 inch ) |
|
Max. Engraving Speed |
40~2500 mm/min ( 1.57~98.43 inch/min ) |
|
Engraving material |
Plastic(ABS, Acrylic), Wood, Foam, Styrenefoam, Modeling Wax, Epoxy Tooling Board…etc |
|
Max. Material Thickness |
70 mm ( 2.76 inch ) |
|
Mechanical Positioning Resolution |
0.10 mm ( 0.004 inch ) |
|
Software Resolution |
0.02 mm ( 0.0008 inch ) |
|
Spindle Motor |
150W DC Brushless Motor |
|
Spindle Speed |
17000 RPM |
|
Tool Diameter |
ER11 Collet - 4.0 mm |
|
Interface |
USB 2.0 |
|
Power Supply |
Input: AC 100~120V 50 / 60HZ Output: DC 24V 6.5A |
Input: AC 220~240V 50 / 60HZ Output: DC 24V 6.5A |
Power Consumption |
3.0A |
2.0A |
Operating Noise Level |
Stand By 39.6 dB(A) |
|
No-loading operation less than 66 dB(A) | ||
Machine Size |
626 × 615 × 421 mm ( 24.646 x 24.213 x 16.575 inch ) |
|
Net Weight |
38 kgs ( 84.45 lbs ) |
|
Operating Environment |
temperatures 5~40 °C (41~104 °F) |
|
humidity 35~80% | ||
Accessories |
Power Cord, USB 2.0 Cable, Controller, Wrench Set (For spindle x 1, For nut x 1), Silicone Nat, Tungsten Carbide Tool, Clamp set, Support Board, Thin adjust paper, BravoProdigy Software Installation Disc, Operating Instructions, Cut2D/Cut3D Software Installation Disc, Engraving Material, ER11 Collet. |
|
n APPLICATION
Artwork industry: Relief engraving, 3D character engraving, name brand making, small gift, souvenirs, various decoration, figures on small windows, fences, wall, etc.
Advertising industry: cutting/engraving/drilling, photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, ABS, two colors board, soft metals etc.
Stamps making industry: Carving on various materials like rubber, acrylic, plastic, wood and bamboo and so on.
n FEATURES
Software:
- Graphical User Interface
The vivid interface and simple operation has been designed for general users.
- Digital Photo
Engrave your photos on wood and acrylic easily. You just need to provide a digital photo. The Bravoprodigy
EDIT software can read file formats such as *.bmp, *.jpg and *.png.
- High Compatibility
Compatible with Cut 2D, Cut 3D, PhotoVCarve, ArtCAM and BMP programs.
- Save Money
With our software suite, Bravoprodigy EDIT and Bravoprodigy CNC, you don’t need to buy other
off-the-shelf software to complete your own engraving project.
Operation:
- Easy to Operate
You don’t need to think how to use it. Just follow 4C (Click, Convert, Command, Carve).
- So Easy, so Breezy!
Use the game pad to control the coordinates. So easy, so breezy.
- Design
This product has been designed especially for beginners.
The operation is the most simple and straightforward in the world.
- Compact and Portable
You can move this compact and portable desktop tool from place to place. You can engrave wherever and
whenever you like.
- All in One
You can DRILL, MILL, CUT, SHAPE and CARVE with this mini CNC engraving machine.
- Multi-Function
Ideal for school education, hobbies, DIY projects, carpenter and business.
n SAMPLE PICTURES

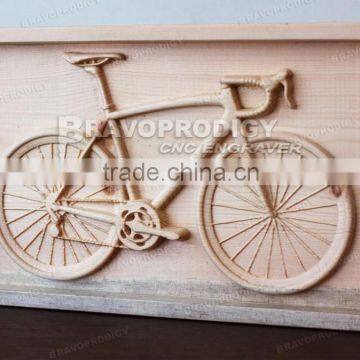

Wooden relief:
Photo engraving on acrylic(Lithophane …etc):

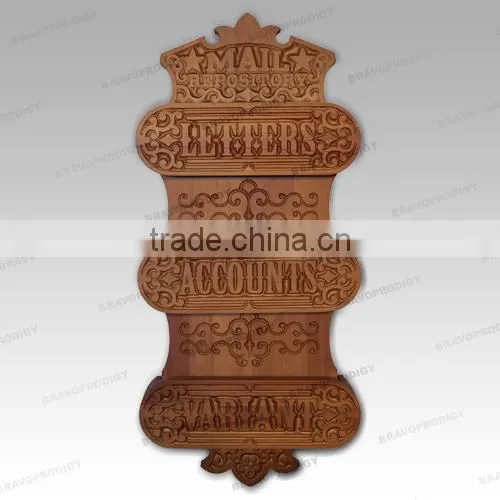

Nameplates and store signs:
3D models and 3D puzzle:

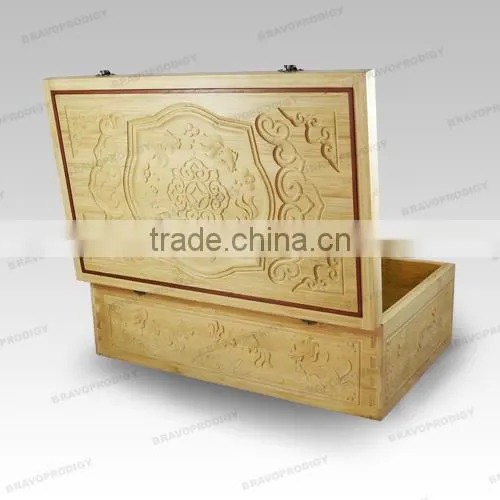

Decorations:
Soft metal engrave(Copper, Aluminum…etc) :
n PACKAGING and SHIPPING
n ABOUT BRAVOPRODIGY
Company profile:
New Ren Yang Enterprise Corp. is one of the leading mini CNC engraving machine manufacturers and Suppliers which provides Tile Saw in Taiwan. Since its establishment in 1982, NRY has been growing steadily in the scope of DIY industry especially in tile saw. In 1995, we changed our direction into construction tools manufacturing successfully. At the very beginning, New Ren Yang was founded as an Induction Motor manufacturer; therefore we are expert in selecting the optimal motors for power tool.
With more than 30 years' experience and innovation in design and manufacturing of power tool, we continue to develop newer and better products in order to satisfy customer's need and supply more choices for our customers. Due to that, we started developing the BRAVOPRODIGY mini CNC engraving machine from 2006. The engraving machine is easy to learn and operate, which is especially designed for beginner to professional user.
Our main products:
CNC engraver; CNC router; mini CNC; mini CNC engraver; mini CNC router; 3D cylinder CNC engraver; acryli engraver; 3D engraver; wood engraver; foam engraver.
4 inch Tile Saw; 7 inch Tile Saw; 10 inch Tile Saw; Tile Cutter; Floor Stripper; Power Scraper.
Our advantage:
Advance tech, high quality product, competitive price, CE, UL,ISO Certification and best service.
Our Guarantee & After Sales Services:
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or skype.
Agents Wanted:
We are looking for agents, you are welcome to inquire for further details.
Thank you very much.
