Specifications
Automatic wire twisting machine1,wire diameter; 12mm
2,olet wire diameter: 4mm
3,high output
Twisting machine Specification (Type1)
Model | Width(mm) | Mesh Size(inch) | Wire diameter(mm) | No. of twists | Weight(T) | Motor Power(KW) |
NW15 | 1200-2000 | 1/2 | ≤0.6 | 3 or 5 | 2.5 | 2.2 |
NW20 | 1200-2000 | 3/4 | ≤0.8 | 3 or 5 | 2.5 | 2.2 |
NW18 | 1200-2000 | 5/8 | ≤0.7 | 3 or 5 | 2.5 | 2.2 |
NW25 | 1200-2000 | 1 | ≤0.9 | 3 or 5 | 2.5 | 3.0 |
NW40 | 1200-2000 | 1.5 | ≤1.0 | 3 or 5 | 2.5 | 3.0 |
NW50 | 1200-2000 | 2.0 | ≤1.6 | 3 or 5 | 2.5 | 3.0 |
NW60 | 1200-2000 | 2.5 | ≤1.8 | 3 or 5 | 2.5 | 3.0 |

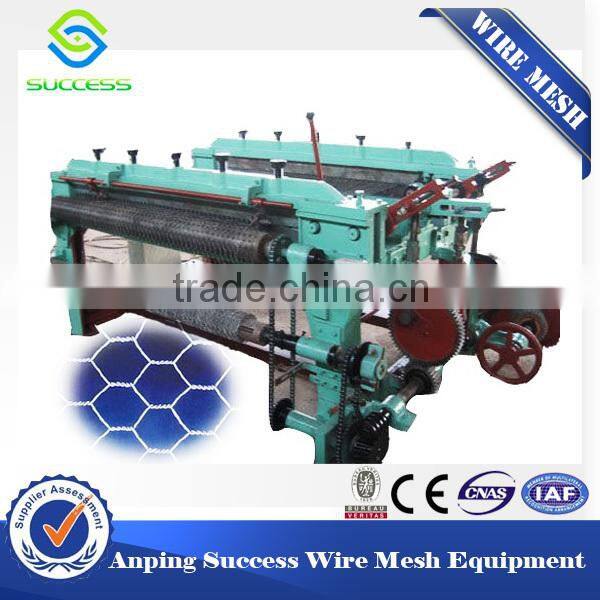

Type 1 designed to produce hexagonal screens with galvanized low carbon steel wires in normal twisting , suitable for structural, heat insulation, protective , and fencing applications. The machines of this series are of horizontal design, ensuring smooth running and high productivity. With special coiling machine, bobbin winding machine as spare parts.
Twisting machine Specification(Type2)
Model | Rated Sisze of Cell(mm)L | Max Net Breadth(mm) | Max Thread Diameter(mm) | Theoretical productivity | Dimensions(LXWXH)mm | Wreight(T) | ||
Single | Double | Mesh/min | m/h |
|
| |||
JG3/4 | 22.85 | 2600 | 1200 | 1.0 | 42 | 60 | 4800x1800x1550 | 4.6 |
JG1 | 28.667 | 2600 | 1200 | 1.2 | 40 | 70 | 4800x1800x1550 | 4.6 |
JG1.2 | 34.7 | 2600 | 1200 | 1.2 | 40 | 80 | 4800x1800x1550 | 4.6 |
JG1.5 | 43 | 2600 | 1200 | 1.4 | 38 | 131 | 4800x1800x1550 | 4.6 |
JG2 | 57.334 | 2600 | 1200 | 1.8 | 38 | 169 | 4800x1800x1550 | 4.6 |
JG3 | 86 | 2600 | 1200 | 1.8 | 36 | 180 | 4800x1800x1550 | 4.6 |
The products are widely used in fences of farmland and grazing land, reinforced ribs of building walls and other nets for separation. it contain the models such as 1/2",5/8",3/4",1",1-1/2",2" and so on ,the features of the machine are shown below:
Wide breadth of net can weave double 1.2 meters breadth, and can weave single 2.5meters.
.Tidy and consistent cell distribution .It is easy to take a thread anywhere.
.Equipped with clutch brake and spot start. Easy to operate and reliable. Fewer requirements for operators.

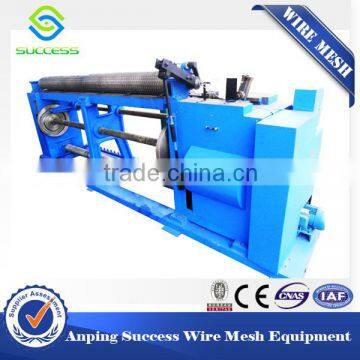

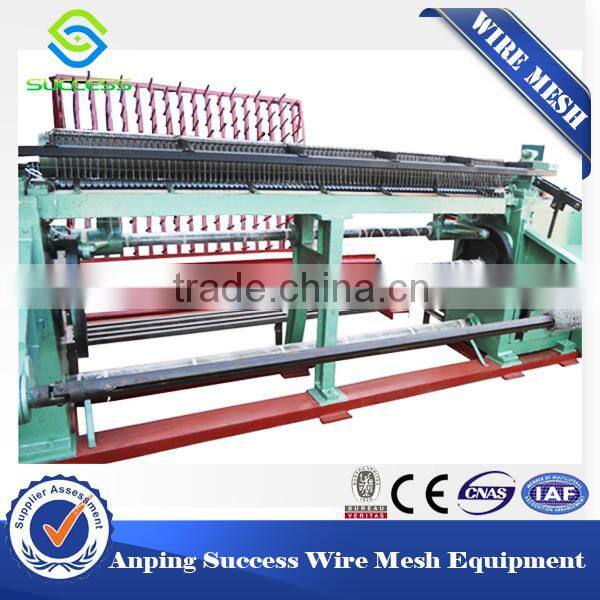

Twisting machine Picture
Anping Wire Mesh Machine Factory is located in the hometown of wire mesh-Anping. We mainly design and produce kinds of wire mesh machines and we have more than 10 years' experience in this field.
We follow the vision of technical innovation and quality product and we sincerely hope to cooperate with clients from all over the world to create an even brighter future.

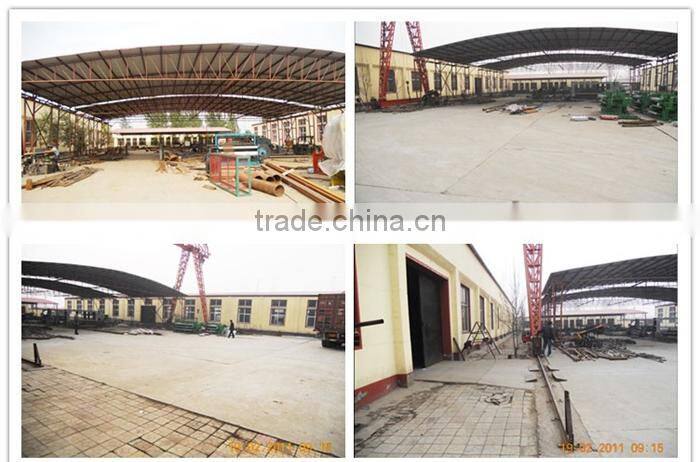

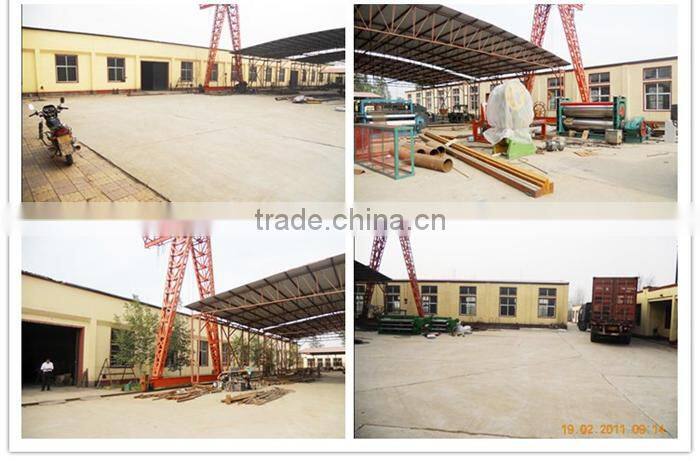

Our Company
Our Certification
