Gold Washing Machine for Sale

FOB Price

US$ 4,500 - 13,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	DSM
Model Number	as required	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1. strong structure
2. easy operation
3. energy saving

Gold Washing Machine for Sale

Introduction:

Gold Washing Machine is always used for processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc. It can classify the mateirals in two several kinds as requirements

Working Principle:

Gold Washing Machine consists of motor, decelerator, rotordrive, chassis, seal cap, inlet and outlet. When material fed into the drum, it will be lifted up by the rotation and separated as it falls back down. This action is repeated with each revolution along the length of the drum. The fine material passes through the sieve openings while the larger material flows to the exit at the rear of the drum.

Technical Parameter:

Model	Capacity	Power	Screen Diameter	Screen Length	Discharge Size	Input Size	Dimension (L×W×H)	Weight
Model	(t/h)	(kw)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
GTS1015	50	3.0	1000	1500	0~100	≤300	2600×1400×1700	2200
GTS1020	100	4.0	1000	2000			3390×1400×2140	2800
GTS1225	160	5.5	1200	2500			4146×1600×2680	4200
GTS1530	250	7.5	1500	3000			4460×1900×2820	5100
GTS1545	350	11	1500	4500		≤400	5960×1900×3080	6000
GTS1848	450	15	1800	4800			6500×2350×4000	7500
GTS2055	600	22	2000	5500			7500×2550×4800	9600
GTS2265	800	30	2200	6500			8500×2750×5000	12000

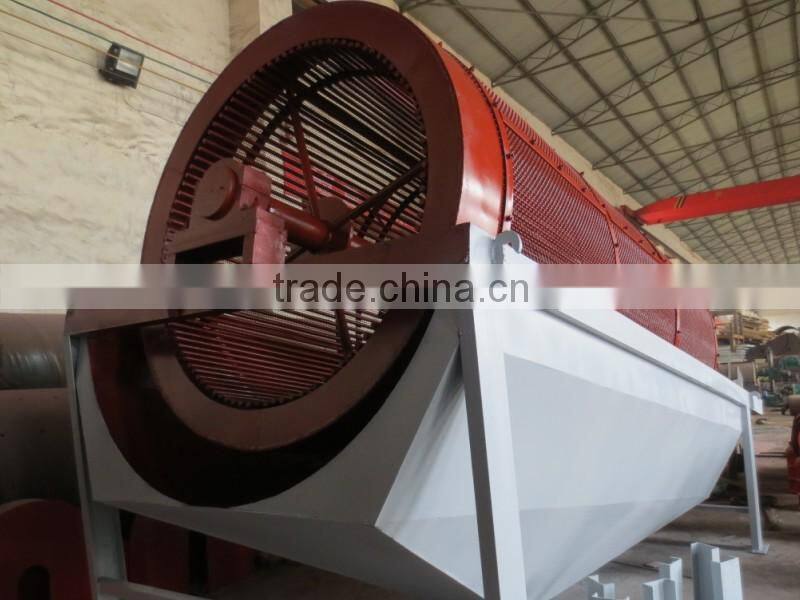

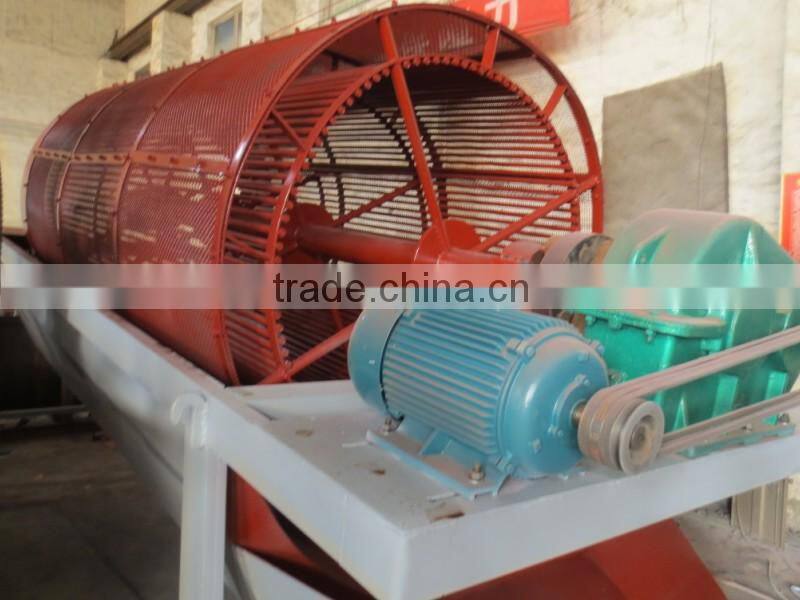

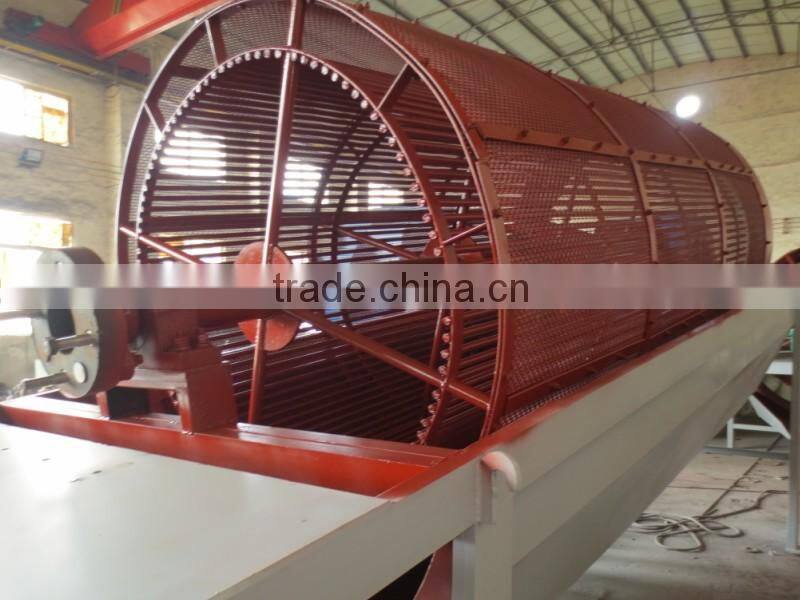

Pictures of the Gold Washing Machine:

Welcome to contact us for more information, Dashan will be your best Choice!

Contact person: Ms. Juan

Tel: 0086 13838319797

Skype: lanyuluoxue

Contact Us

Henan Dashan Mining Machinery Co., Ltd.: Contact nameJuan Wei
Chat Now; Phone0086-371-63525818; AddressJiulong Industrial Park, Zhongyuan District, Zhengzhou, Henan
