DC12V 30A 18Channels Power Supply Box for Security Cameras
1. Features
1. Features
1. Low price and high reliable.
2. Uninterruptible Power.
3. AC input power suitable for the world
4. High efficiency and how operation temperature.
5. With short-circuit ,overload and over-voltage protection.
6. Wtih Battery over-charging, over-discharging, anode & cathode wrong connect protection.
7. 100% full-load buming test.
8. Applicable to all types of access control systems, building interphone systems, alarm monitoring systems
2. Specification
Model |
MYT-360W-12-18CH |
|
|
INPUT |
AC input voltage range(V) |
AC 110V/220V±15% by switch |
AC Input current(max) |
3A/115V 1.5A/230V |
|
Frequency (Hz) |
47Hz~63Hz |
|
Efficiency |
>80% |
|
Inrush current(A) |
Cold-start 40A/230V |
|
Leakage current(mA) |
<3.5mA/240VAC |
|
|
output |
Output Voltage(V) |
+12VDC |
Voltage Regulation |
±10% |
|
Output Current(A) |
30A |
|
Current Range (A) |
0~15A |
|
Rated Power(W) |
360W |
|
Start ,Rise time(ms) |
200ms,100ms/230VAC at full load |
|
hold-up time(ms) |
30ms/230VAC 25ms/115VAC at full load |
|
Ripple/Noise(mVp-p) |
120mVp-p |
|
|
Environment
|
working Temperature (°C) |
-40°C - +65°C(refer derating curve) |
Storage Temperature(°C) |
-20°C - +60°C |
|
Humidity |
20% - 90% RH non condensing |
|
|
Protection
|
Over voltage Protection |
>115%-135% Rated output voltage |
Over load Protection |
>105%-150% Auto recovery |
|
Short circuit Protection |
Latched |
|
Others |
Packing Size / Product Size(cm) |
33.5*22*6.5 / 31.5*20.7*5.3 |
Gross Weight / Net Weight(kg) |
1.931/1.783 |
|
|
The Channel Number |
18CH |

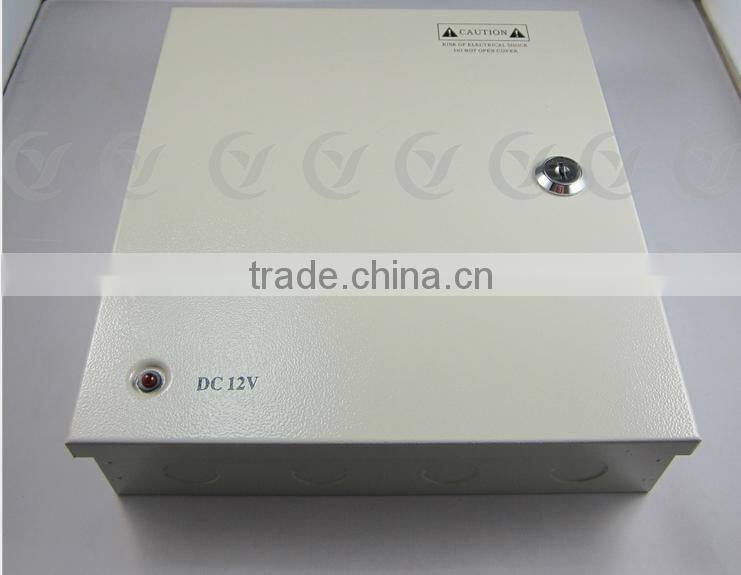

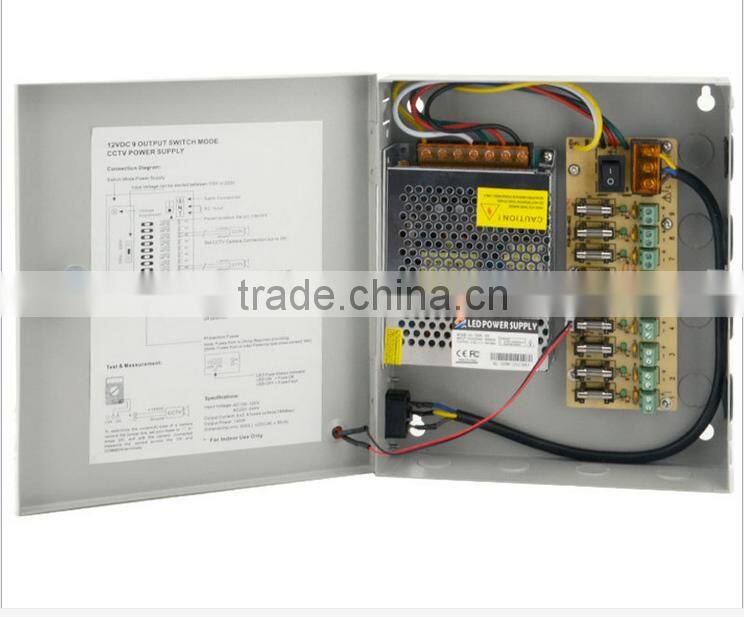

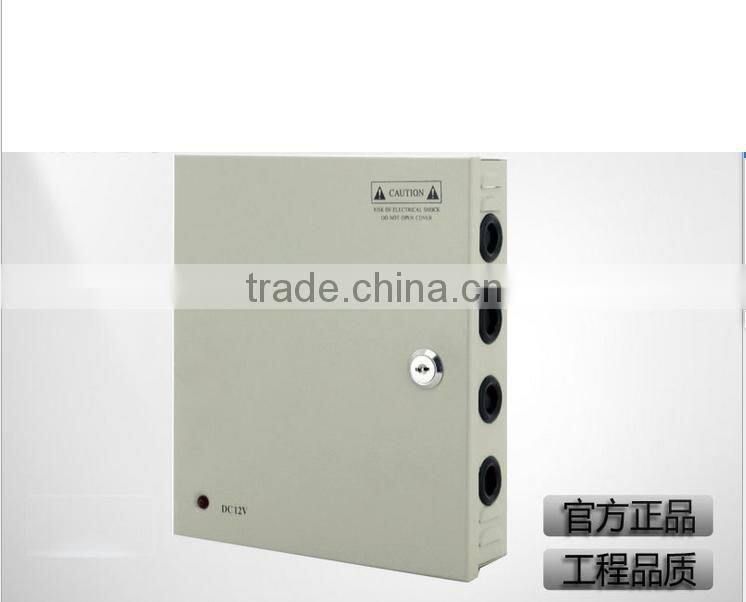

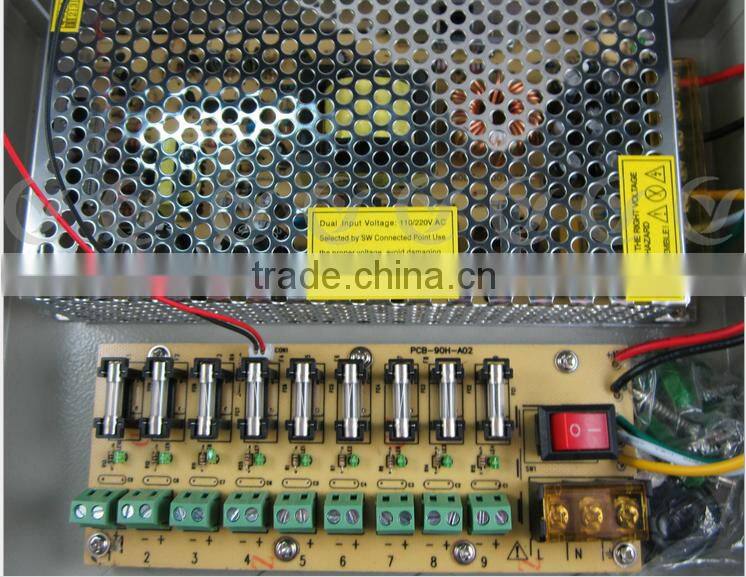

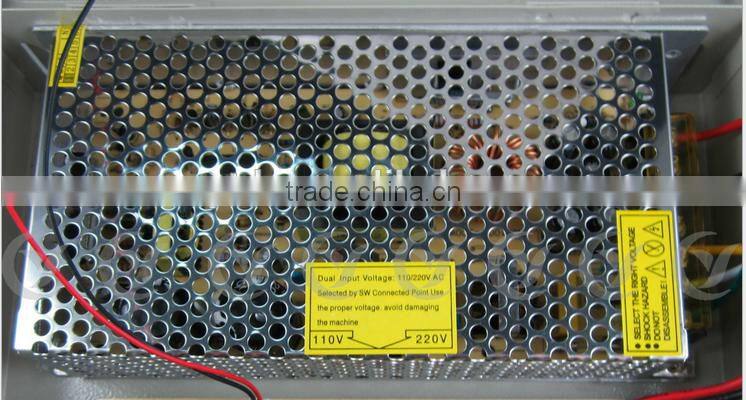

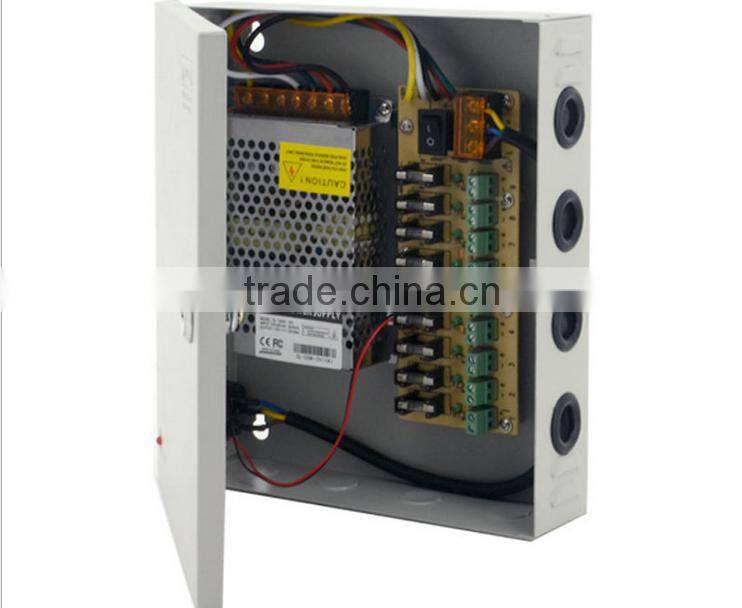

Photos
