High quality Guangzhou 36pcs 3w Cree led moving head light

Specifications

1 .36x3w RGB CREE LED moving head light
2. Contorl mode: STANDARD dmx512, 3 pin inter face, 3 channels mode

  Model:EV BM336W (36x3 led moving beam light)



EV BM336 is a type of moving head beam light with features of high-brightness ,small volume and rapid speed. It owns strong beam effect as a result of the 10º beam angle design of it. It is suit for large-scale show place and the small-scale one.

Input Voltage: AC100V~AC240V, 50/60HZ;

Power Consumption : 120W;

Lamp Specifications :36pcs(12R+12G+12B)3W CREE LED, rated life 50000 hours;

Lens Angle:5º

Beam Angle:10º;

Color:RGB linear color mixing ;

Dimmer: 0-100% linearly dimming,

5 types dimmer modes,smooth dimming, flicker-free ;

Shutter: independent electronic strobe ;

Control Mode:

Standard DMX512,3 pin interfaces ;

3 Channel modes;

Master/slave mode,no need to set up the master and slave manually, will receive the main engine data automatically ;

rainbow channel ;

Other Functions:

Sound active mode and auto-run mode;

Waterproof Grade : IP20

Work Environment Temperature : -20°C~40°C;

Net weight: 5.6kgs

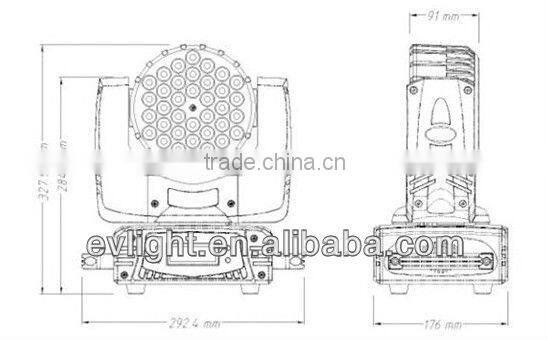

DIMENSION:
