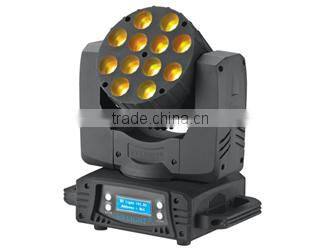

12*10W RGBW 4in1 Cree LED beam moving head light

Specifications

1. 12x10w RGBW 4-in-1 led moving head
2. It's suitable for television broadcast room/large-scale show/ opera house ...

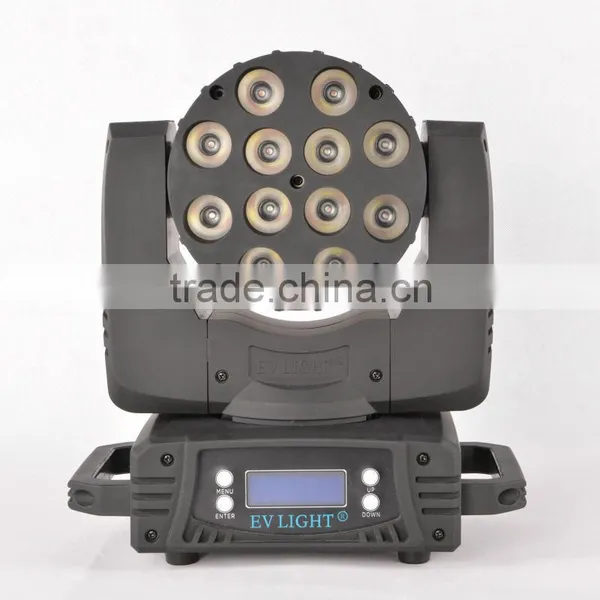

Model No.: EV BM1012 beam moving head





EV BM1012 is a type of moving head beam light with features of high-brightness ,small volume and rapid speed. It owns strong beam effect as a result of the 15° beam angle design of it. It is suit for large-scale show place and the small-scale one.



• Input Voltage: AC100V~AC240V, 50/60HZ;
• Power Consumption : 140W;
• Lamp Specifications :12 pcs four in one(RGBW)10W CREE LED, rated life 50000 hours;
• Lens Angle :8°;
• Beam Angle :15º;



• Color :RGBW linear color mixing ;
• Dimmer: 0-100% linearly dimming,
• 5 dimmer modes:32-bits dimming, still keep smooth dimming when changing at the range of low DMX value ;



• Refresh Frequency:1800Hz, no blink when camera shooting;
• Shutter: independent electronic strobe ;
• Control Mode:
• Standard DMX512,3 pin interfaces ;
• 3 Channel modes;
• Master/slave mode,no need to set up the master and slave manually, will receive the main engine data automatically ;
• rainbow channel ;
• Other Functions:
• Sound active mode and auto-run mode;



• Waterproof Grade : IP20
• Work Environment Temperature : -20°C~40°C;
• Net Weight: 5.5 Kg

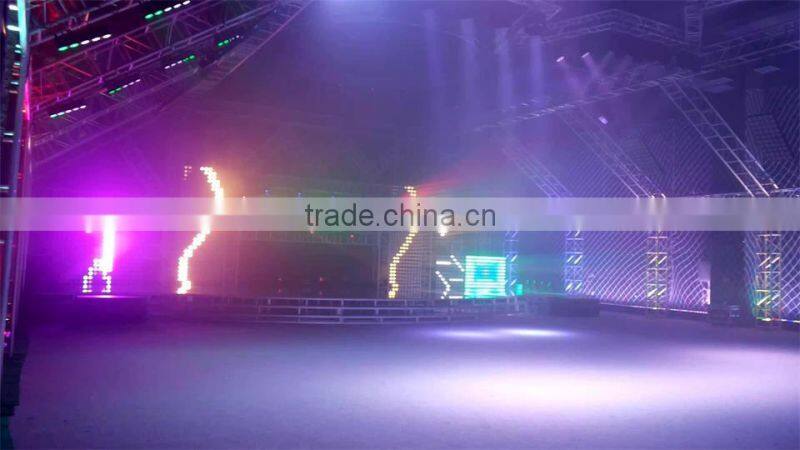

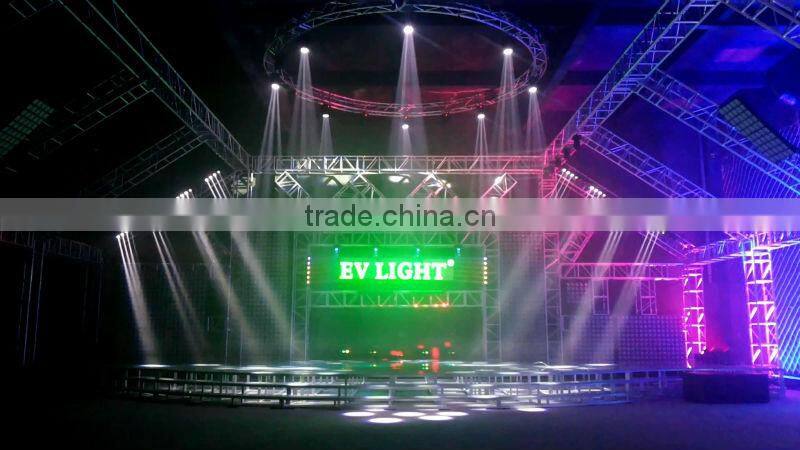

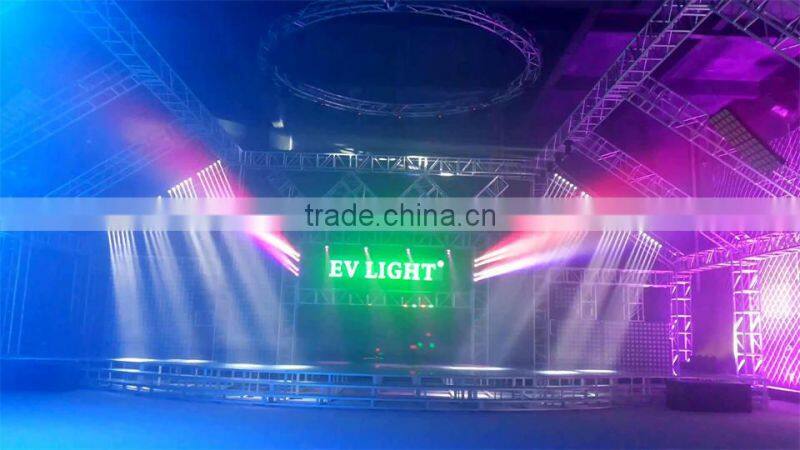

Products effect:

Showroom:

Factory & office pictures;



Prolight fairs:

Workshop:
