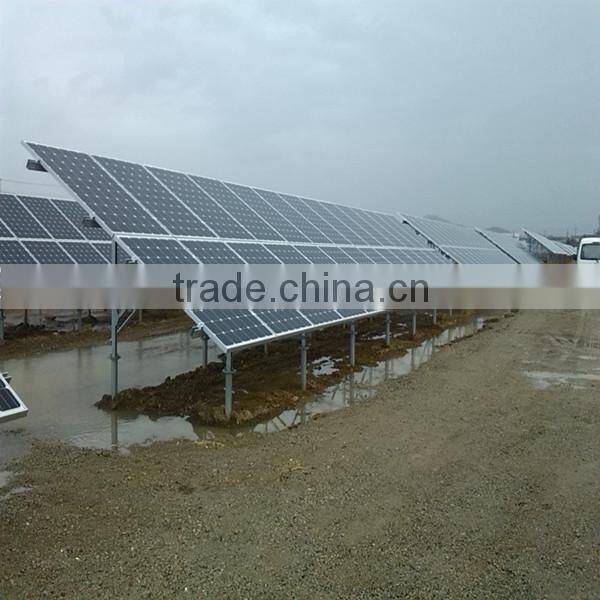

Ground Screw Solar Mounting System for pv Panel

Specifications

PVSolver solar mounting system is designed by professional engineer team.

Widely use for MW ground mounting solar system, fast installation and save labor cost.

Main material:

U-channel post, including front post and rear post

U-channel main beam and U-channel purline

Ground screw

The section of U-channel: 41*41*2, 41*52*2, 41*62*2, etc.

According to customers' requiremets and actual installation factors, we choose the suitable U-channel to combine mounting brackets, and according to the actual soil to check the length of ground screw. All U-channel is Q235B material, and connected each other by hinger and blots group.

Only need simple tools, we can combine all mounting structure easily.

________________________________________________________________________

• Install site:open filed
• Tilt Angle:5-60deg
• System Height :<2.5m
• Max Wind Speed:<42m/s
• Snow Load:<1.4KN/m²
• Standard :Suit for AS/NZS 1170 and other international Standard
• Material: U-channel steel and aluminum alloy parts
• Anticorrosive:Anodized aluminum & Hot galvanized U-channel steel
• Soil Condition: Anyway
• Warranty:15 years warranty and 30 years service life

_________________________________________________________

Features,

1, Easy & Fast Installation

2, Flexible post spacing withstands different wind & snow loads.

3, High quality material in HDG steel

4, Screws and nuts go with every components needed.

5, Mechanical calculation and reliability tested to ensure highest product quality.

6, 10 years system and structural guarantee

Package demand: Normal package seaworthy.

All the same type U-channels will be combined one pallet, and other small parts will be loaded into the carton packaging.

Designed accordng to customers' requirements, and provided all of mounting structure for customer to save cost.

When all material arrived at installation site, we'll provide tools and installation manual for free, ensure all workers can install mounting brackets easily.

We're the manufacturer of solar mounting system, specilizing in producing all parts by ourselves.

We have been doing solar mounting brackets for more than 3 years, complete more than 300 MW solar mounting brackets for solar plant and have many experiences on installing.

Reasons to choose PVSolver mounting system ,

• Design conformable to different project requirements
• Fast and cost effective installation, easy to be assembled on different area.
• Short in 7-25 days leading time according to acrtual quantities
• Wisely solutions for your solar PV projects

Which Datas need provide when inquiry,

-----------

Dear Buyer,

In order to help you get the right system, please offer the following necessary info.,

1. The dimension of the solar panel: _________(L*W*T)

2. Installation angle: __________

3. The overall size of the PV array:____________

4. The height of downside of PV module from ground: ____________

5. The length of ground screw:_________

6. The order quantity for us to confirm delivery and shipping
