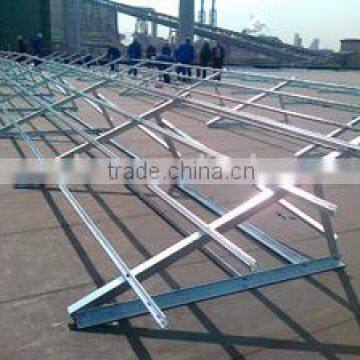

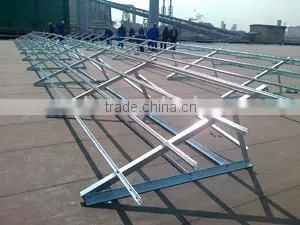

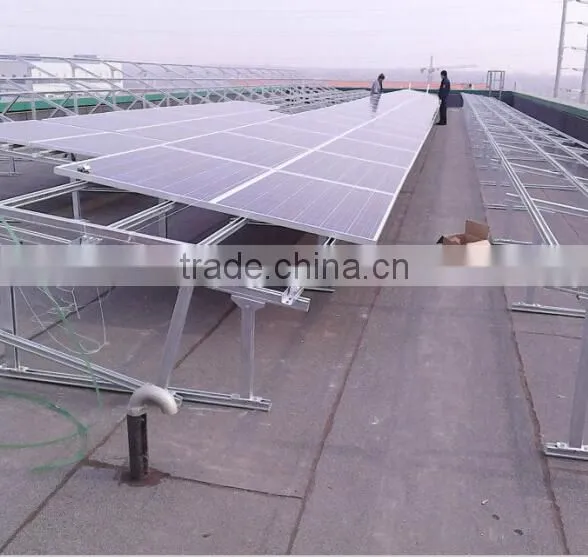

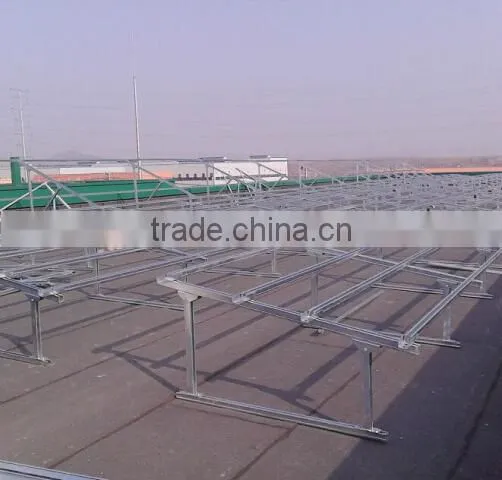

flat roof pv mounting system

Name: flat roof pv mounting system
Brand: PVSolver
Price: USD $0.05 - 0.06 / Watt

FOB Price

USD $0.05 - $0.06 / Watt

20000 Watts(Min.Order)

Supply Ability 10000000 Watt / Watts per Month
Port FOB Shanghai or CIF
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	PVSolver	Model Number:	SR-FRB-01
Type:	Other, Flat Panel, For Solar Flat Roof Mounting bracket	Application:	Other, Support PV panel	Pipe Material:	Other, Mounting brackets with HDG Q235B

Product Description

♥Welcome to PVSolver♥

Products Description

PVSolver solar mounting system is designed by professional engineer team.

Widely use for MW ground mounting solar system, fast installation and save labor cost.

Introductions

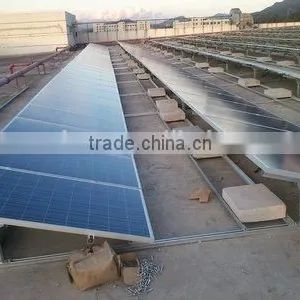

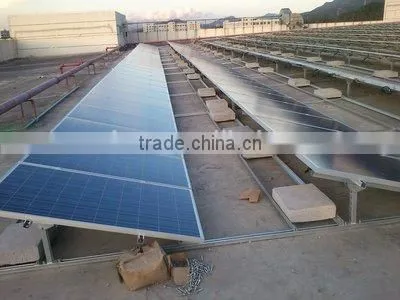

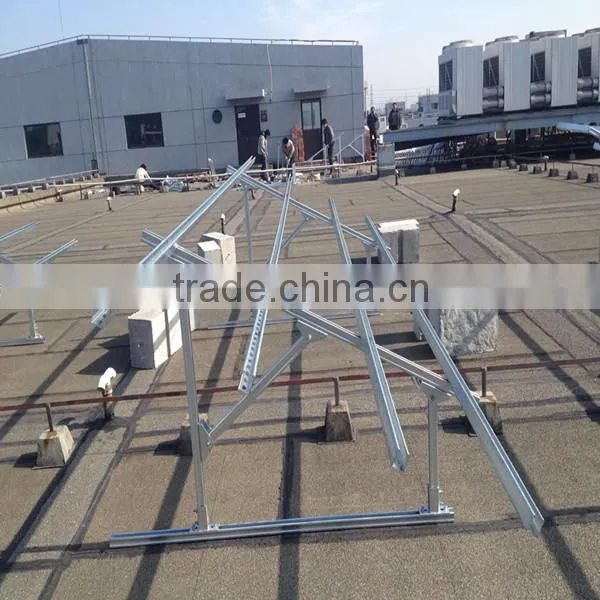

Best configuration, fast installation, PVSolver ballasted mounted system through added ballasts to provide a non penetration system. no leakage issue and save the labor cost.

Install site:flat roof
Tilt Angle:paralled to the roof
System Height :<20m
Max Wind Speed:<42m/s
Snow Load:<1.2KN/m2
Standard :international Standard
Material: AL6063-T5 & SUS304 material
Anticorrosive:Anodized aluminum & Hot galvanized U-channel steel
Soil Condition: Anyway

Specification:

Packaging & Delivery

Packaging Details:	EPE film + Kraft Paper packing for more than 2.5meter, the cartons or plywood packing for less than 2.5meter, of course, the custom packing is available according to customer's requirement.
Delivery Detail:	7-25 days, according to customers' quantities , after received customer's deposits

Solar Roof Mounting Structure Detailed product description
Material	aluminum alloy: 6063 T5/ Stainless Steel 304
Shape	according to drawing and sample (square, angle, flat, T-profile, rotundity, oval, slot)
Deep machining	precise cutting, drilling, tapping, CNC milling, CNC lathe and so on.
Surface treatment	Sandblasting/anodized/HDG
Specifications	According to your design drawings and your samples
Certification	ISO9001-2008,CE
Packaging Detail	Export Standard Carton With Pallet,interleaving each profile to protect the surface
Delivery Detail	Delivery time :7--25 days after receive customer’s deposits

Solar mounting profiles advantage in the field of photovoltaic applications

1. corrosion resistance, oxidation resistance is strong;

2. strength and strong robustness;

3. strong tensile resistance performance;

4. elastic ratio, rigidity, high metal fatigue value;

5. transport, installation is convenient, the surface does not produce scratches oxidation, does not affect performance;

6. through the convenience of different materials, can adapt to various environment;

7. in 30 to 50 years service life.

Engineering specifications

Installation Site: Ground,Flat/Tilt roof,Tile roof,Vitreous tile,any suitable area
Installation Angle: Any degree
Snow Load: Up to 1.4 KN/m2 (40PSF)
Wind Load: Up to 36.9 m/s (150 km/h)
Wind Pressure: Up to 66.42 KG/m2

Features,

1, Easy & Fast Installation

2, Flexible post spacing withstands different wind & snow loads.

3, High quality material in HDG steel, Aluminium 6063-T5 and SUS 304.

4, Screws and nuts go with every components needed.

5, Mechanical calculation and reliability tested to ensure highest product quality.

6, 10 years system and structural guarantee

About US

Our company is a manufacturer of solar mounting system with well-equipped testing facilities and strong technical force.
With best quality, cheapest price, prompt delivery and professional design, our products are extensively used in solar industry.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Our Services

Designed accordng to customers' requirements, and provided all of mounting structure for customer to save cost.

When all material arrived at installation site, we'll provide tools and installation manual for free, ensure all workers can install mounting brackets easily.

FAQ

Reasons to choose PVSolver mounting system

Design conformable to different project requirements
Fast and cost effective installation, easy to be assembled on different area
Short in 7-25 days leading time according to acrtual quantities
Wisely solutions for your solar PV projects

Which Datas need provide when inquiry,

Dear Buyer,

In order to help you get the right system, please offer the following necessary info.,

1. The dimension of the solar panel: _______(L*W*T)

2. Installation angle: ______

3. The overall size of the PV array:_______

4. The height of downside of PV module from ground: _______

5. The order quantity for us to confirm delivery and shipping

We are specialized in solar mounting bracket for years.

My name is Frida,my contact information as follows:

Skype:fuchan2014

Whatsapp/WeChat:18262205206

QQ:2251839702

Tel:86+18262205206

Any questions,pls feel free to contact me.
