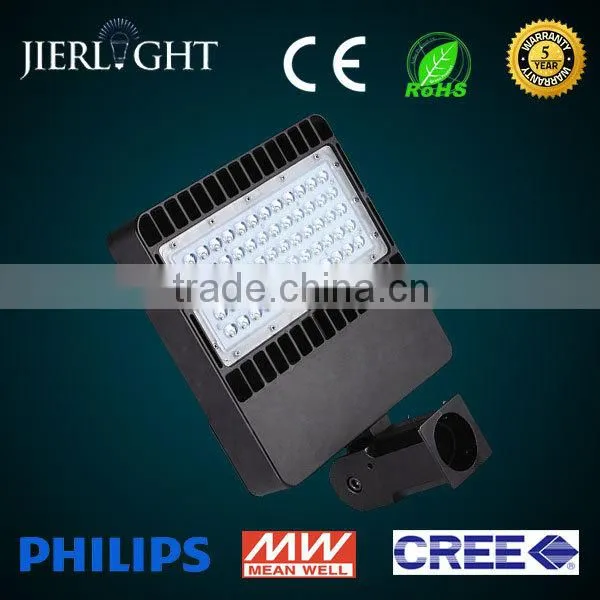

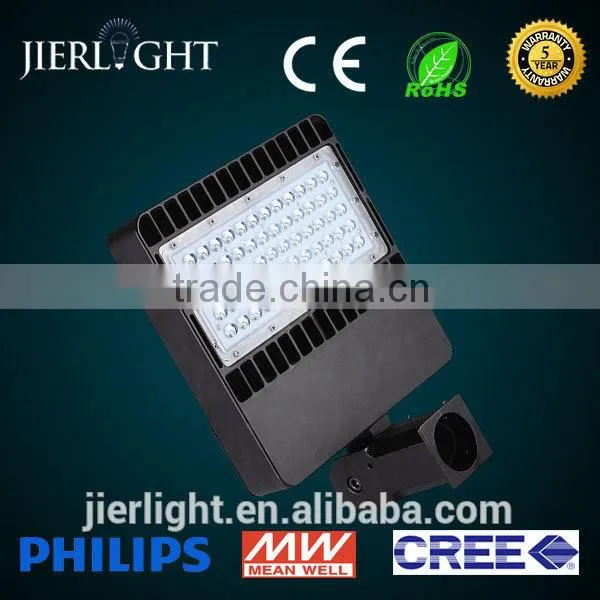

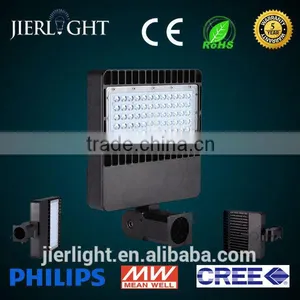

150W IP65 Parking Light
| Part NO. | JL-PL-40W | JL-PL-60W | JL-PL-80W | JL-PL-100W | JL-PL-120W | JL-PL-150W |
| Power | 40W | 60W | 80W | 100W | 120W | 150W |
| Size | 364*275*164mm | 364*275*164mm | 432*343*164mm | 432*343*164mm | 432*343*164mm | 432*343*164mm |
| Voltage | AC85V-265V | |||||
| Lumens | 4100LM | 6100LM | 8100LM | 11000LM | 12100LM | 15100LM |
| LED Source | CREE-XTE | |||||
| LED Driver | Meanwell | |||||
| Beam angle | 120° | |||||
| CCT | 3000-3500K;4000-4500K;6000-6000K | |||||
| WaterProof | IP65 | |||||
| PF | >0.95 | |||||
| Warranty | 5years | |||||

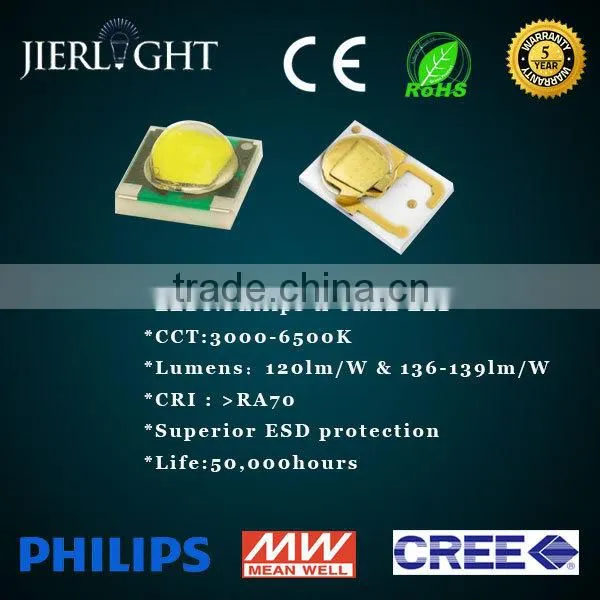

LED Source of parking Light
1.CREE-XTE leds or Philips-Rebel ES high quality.
2.Many lens for options.

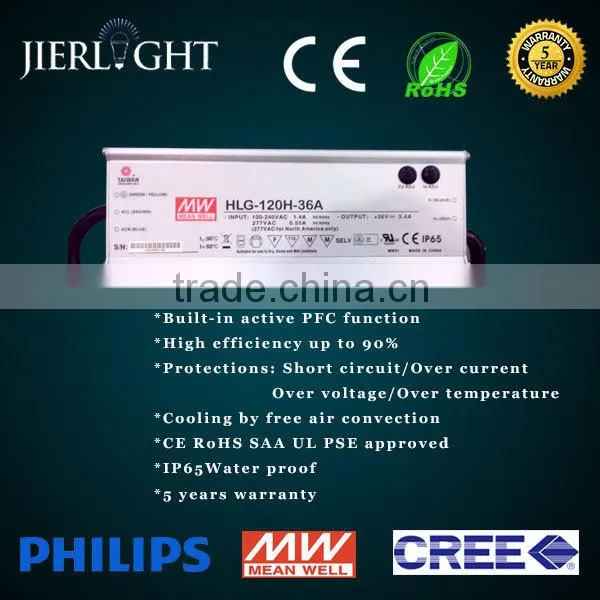

LED Driver of parking Light
1.All parking lot use meanwell HLG series power supply.
2.Input voltage:90-305V
3.IP65
4.5years warranty.
5.UL certificated
6. LED driver is movable easily, which helps to replace LED driver.
Hign-performance heat dissipation make Low surface comperature and leds long lifespan

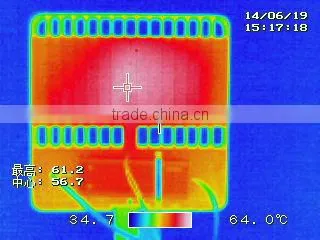

Pls notice the comperature of parking light
Sizes of led packing light
Unit:mm

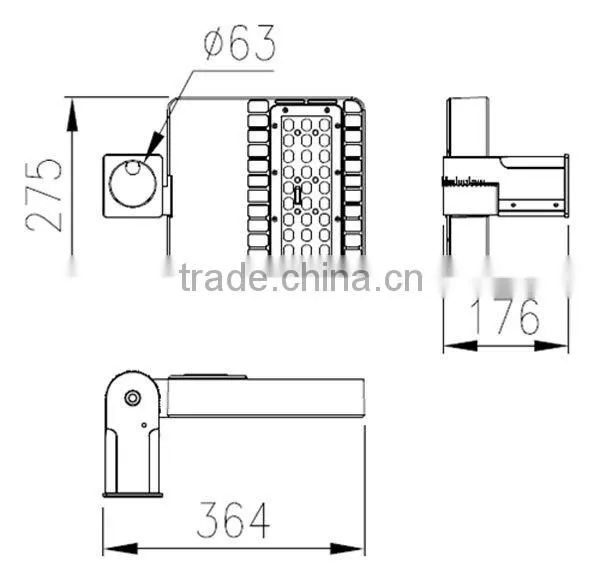

20-60W outdoor parking lot

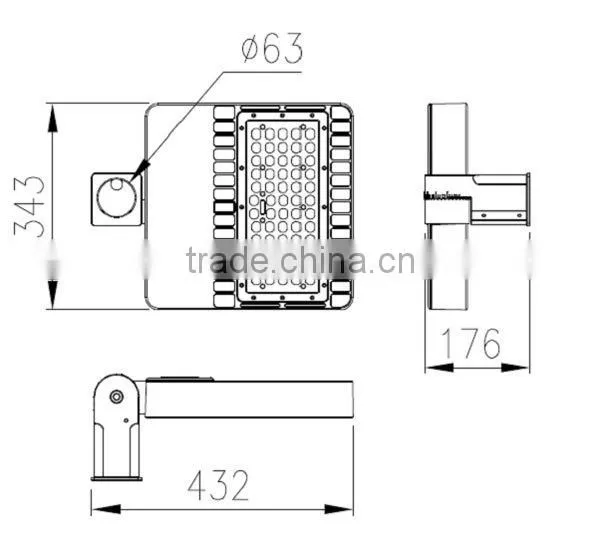

80-150W outdoor parking light

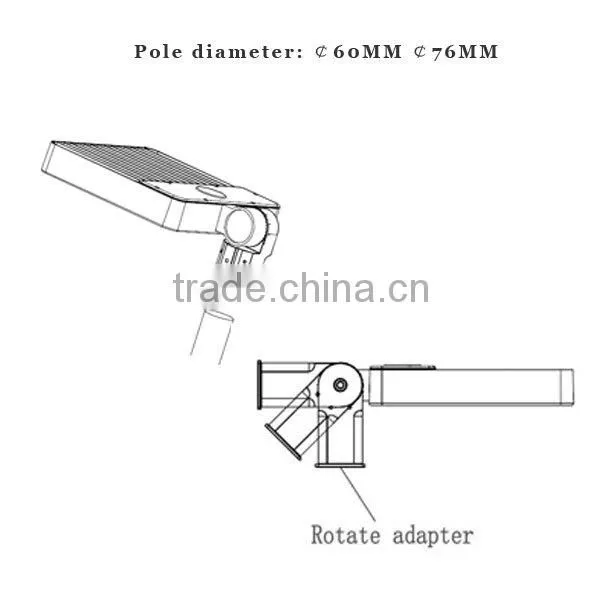

Installation of parking light

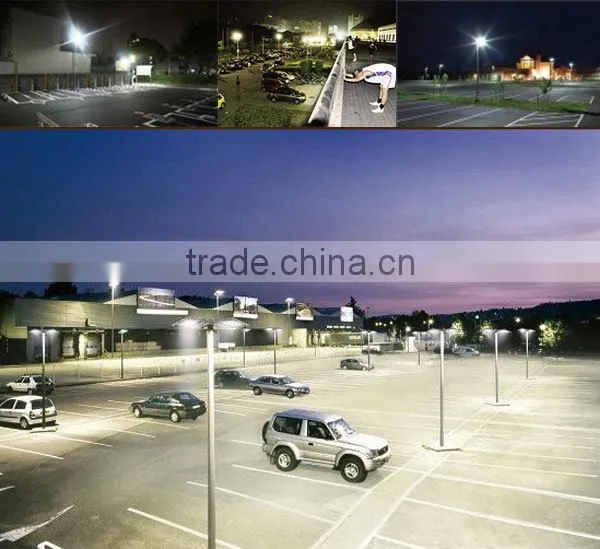

The application of parking light

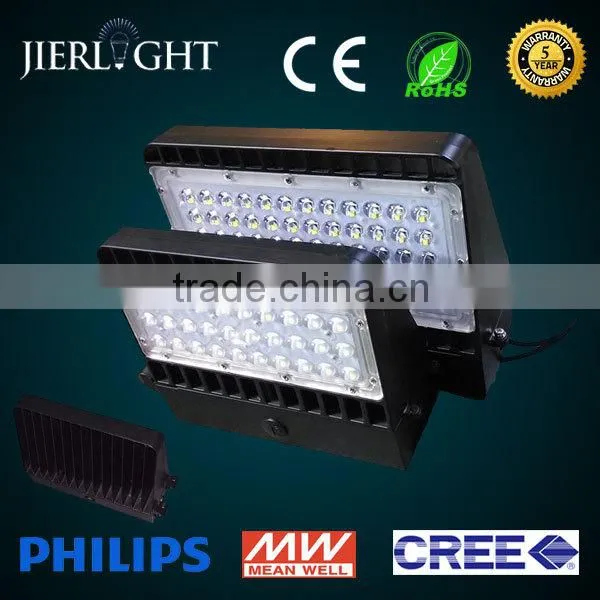

Other outdoor project use led light for your reference.
| Part NO. | JL-WL-40W | JL-WL-60W | JL-WL-80W | JL-WL-100W | JL-WL-120W | JL-WL-150W |
| Power | 40W | 60W | 80W | 100W | 120W | 150W |
| Size | 295*90*216mm | 295*90*216mm | 362*112*256mm | 362*112*256mm | 362*112*256mm | 362*112*256mm |
| Input Voltage | AC85V-265V | AC85V-265V | AC85V-265V | AC85V-265V | AC85V-265V | AC85V-265V |
| Lumens | 4100LM | 6100LM | 8100LM | 11000LM | 12100LM | 15100LM |
| LED Source | CREE-XTE | CREE-XTE | CREE-XTE | CREE-XTE | CREE-XTE | CREE-XTE |
| LED Driver | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell |
| Beam angle | 120° | 120° | 120° | 120° | 120° | 120° |
| CCT | 3000-6000K | 3000-6000K | 3000-6000K | 3000-6000K | 3000-6000K | 3000-6000K |
| WaterProof | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| PF | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Warranty | 5years | 5years | 5years | 5years | 5years | 5years |

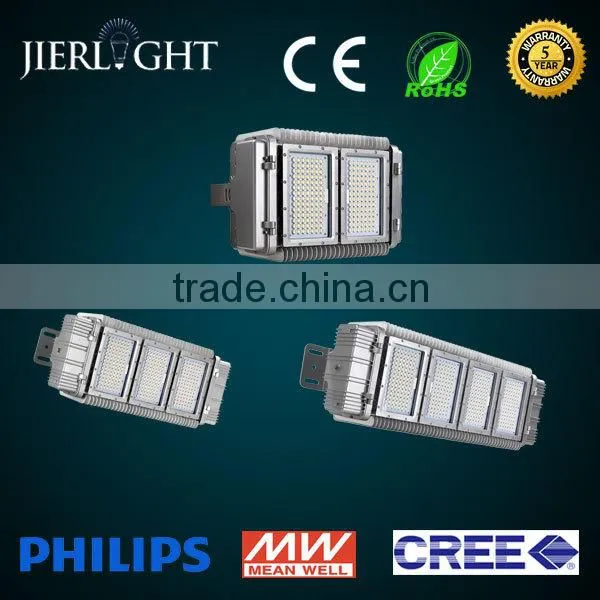

LED Flood light
They are same stanfard as parking lot.
| Power | 400W | 600W | 800W |
| Voltage | 90-305V | 90-305V | 90-305V |
| Size | 530*712*100mm | 685*712*100mm | 840*712*100mm |
| Lumens | >40000lm | >60000lm | >80000lm |
| LED Source | Philips-Rebel ES | Philips-Rebel ES | Philips-Rebel ES |
| LED Driver | Meanwell | Meanwell | Meanwell |
| CCT | 3000-6500k | 3000-6500k | 3000-6500k |
| CRI | >70 | >70 | >70 |
| IP | IP65/67 | IP65/67 | IP65/67 |
| Certification | CE & RoHS | CE & RoHS | CE & RoHS |
| Weight | 14.0kg | 22.0kg | 28.0kg |

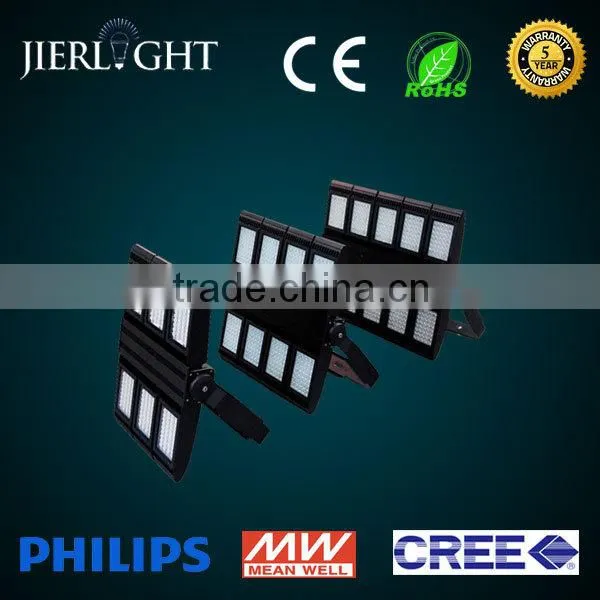

They are same stanfard as parking lot.
| Power | 400W | 600W | 800W |
| Voltage | 90-305V | 90-305V | 90-305V |
| Size | 486*340*404mm |
666*340*404mm |
952*340*404mm |
| LED | 120 -130lm/w | 120 -130lm/w | 120 -130lm/w |
| Lumens | 40000lm | 60000lm | 80000lm |
| CCT | 6000-6500k | 4000-4500k | 3000-3500k |
| CRI | >Ra70 | >Ra70 | >Ra70 |
| Ip Grade | IP65 | IP65 | IP65 |
| Led Driver | Meanwell | Meanwell | Meanwell |
| Warranty | 5 years | 5 years | 5 years |
| Weight | 16.5kg | 23.0kg | 31.0kg |
| Packing | 526*390*326mm | 726*390*326mm | 1020*390*326mm |

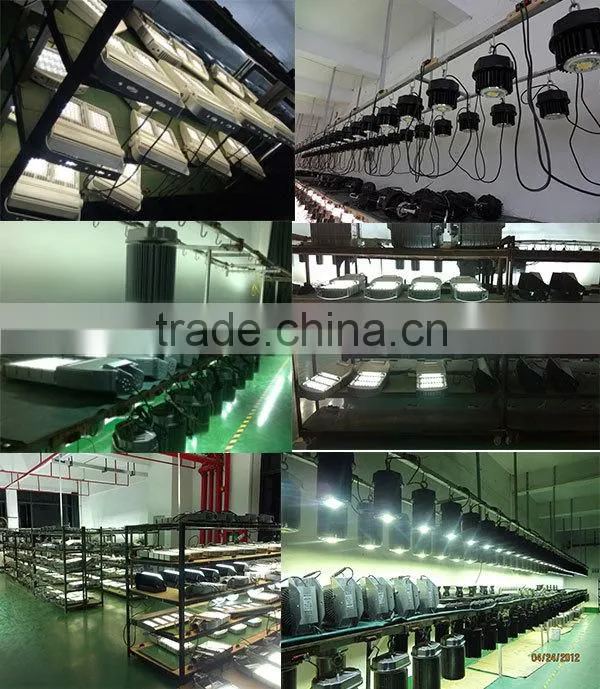

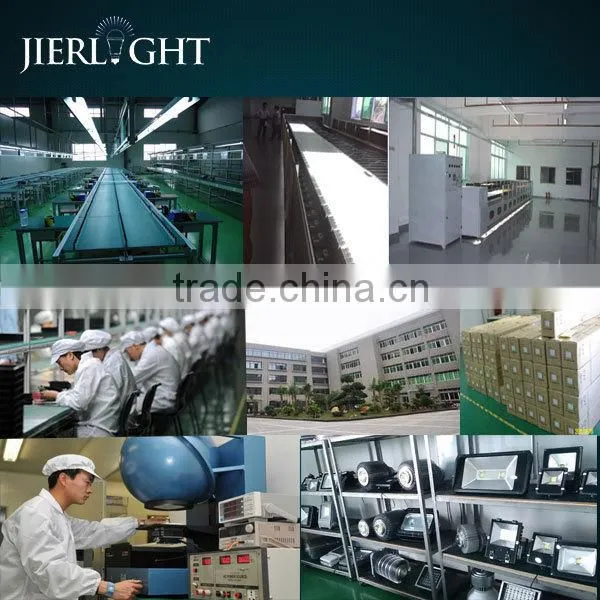

Our factory views:
1. We are professional in produce outdoor use led lighting 10-800W led flood lighting and parking lot.
2. We are full experience of support our exclusive agents in UK, USA, Ireland, Israel, etc with good products and services.
3. OEM, ODM available with more than 50people in R&D team, 600 people in total and TUV authorized factory.
4. LED drivers and lighting shells produced by Meanwell.
5. We supply the panel lights, flood lights, tubes, spotlights, high bay, street lights, candle lights, downlights, bulbs, parking lotetc
Trade Terms:
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping , or Western Union for small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: shenzhen , China
5. Discounts : We offer discount for big quantity.
6. All the prices are based on EXW price,not included the freight and tax.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box
packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects
More information about parking lot,kindly contact me please.
