3years warrenty led surface panel light,12w round and square led panel light
Our service:

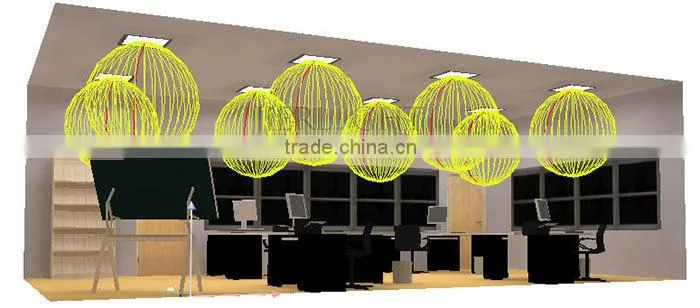

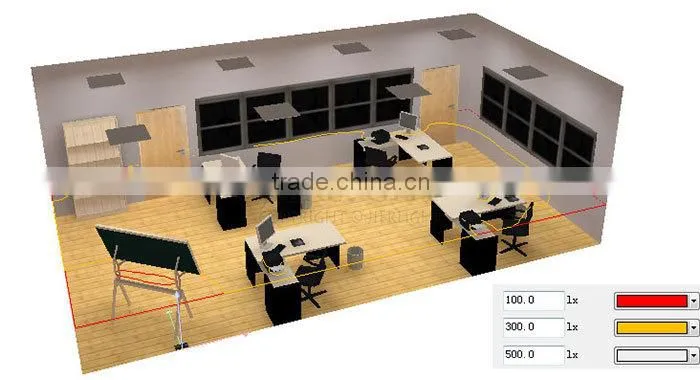

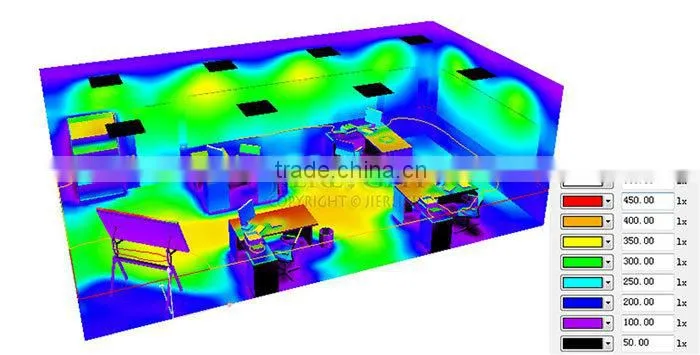

led surface panel light solution/project lighting simulation:

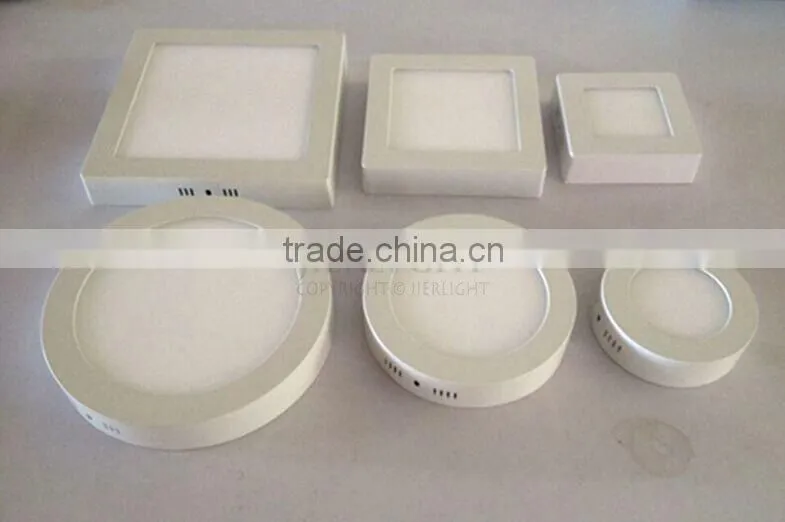

Production&design:
| Round type |
4w/Size: Φ107*23mm /Cutout: Φ90mm |
6w /Size: Φ120* 23mm/ Cutout: Φ105mm |
9w /Size: Φ146 *23mm/ Cutout: Φ130mm |
12w /Size: Φ170 *23mm/ Cutout: Φ155mm |
15w /Size: Φ200 *23mm/ Cutout: Φ180mm |
18w /Size: Φ225 *23mm/ Cutout: Φ200mm |
|
| Square type |
4w/Size: Φ107* 107*23mm/ Cutout: Φ90*90mm |
6w/Size: Φ120* 120*23mm/ Cutout: Φ100*100mm |
9w/Size: Φ146*146*23mm/ Cutout: Φ130*130mm |
12w/Size: Φ170* 170*23mm/ Cutout: Φ150*150mm |
15w/Size: Φ200* 200*23mm/ Cutout: Φ180*180mm |
18w /Size: Φ225* 225*23/ Cutout: Φ200*200mm |
|
Parameter of 12w led surface panel light:
| Name | led surface panel light |
| Power | 12w |
| Voltage | AC85-265V / 50-60HZ |
| Light efficiency | 90-100lm/w |
| CRI | 75 or 80 |
| Pf | 0.90 (copy right:led surface panel light) |
| CCT | 2800-3500k,4000-4500k,5500-6500k |
| Led qty | 60pcs |
| Led type | SMD2835 |
| Beam angle | 120deg(copy right:led surface panel light) |
| Material | Aluminum alloy and PC |
| Optional PC cover | Forsted |
| Size | Round type:D175*35mm Square type:L175*W175*H35mm |
| Surface temperature | 42℃-45℃ |
| Ambient temperature | -20℃-45℃ |
| Certs | CE ROHS |
| Warrenty | 3years (copy right:led surface panel light) |
| Install method | Surfaced mounted |
Features of led surface panel light:
1.High safety: the required voltage, current smaller, less heat, no safety problems can be used for mining and other dangerous places.
2.High efficiency and less consumption :70-80% energy-saving than CFL lamp.
3.Long life span: up to 50,000hours.(copy right:led surface panel light & square led panel light)
4.Reliable and durable: led surface panel light does not contain easily-broken components,such as tungsten filament,glass, etc.
5.Environment-friendly: the wasted materials of led surface panel light can be recycled, with no radial intenerence,no Hg&Pb pollution.
6.Short response time,No flicker,no noise. (copy right:led surface panel light & square led panel light)
7.We recommend led surface panel light to you not only the best price but also the very good quality we sure that you can`t find same price at this quality level.

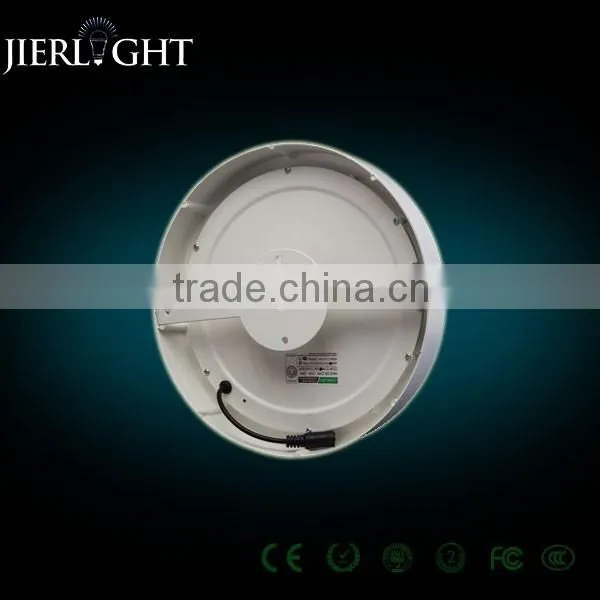

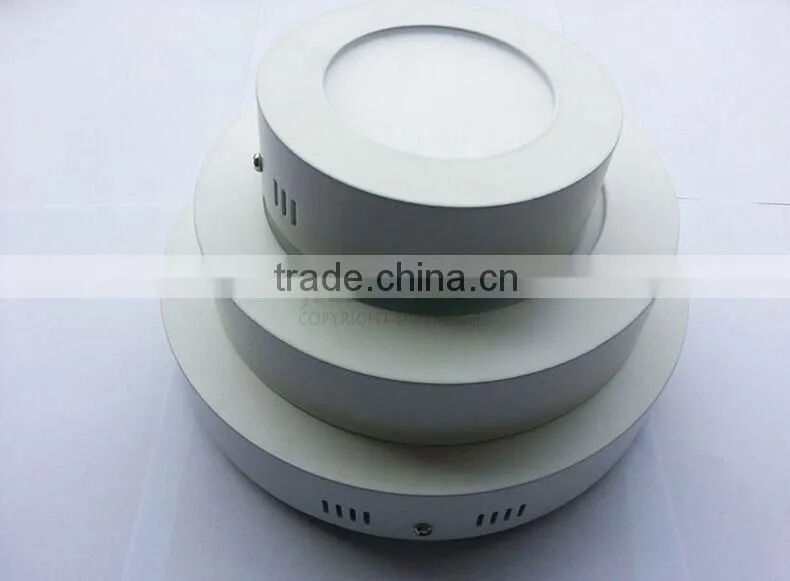

Product tour:

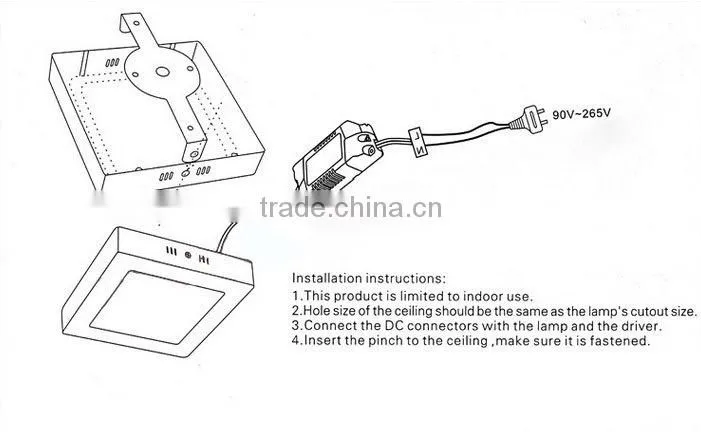

Installation of led surface panel light:
Warning:
1.Only qualified person should perform led surface panel light installation.
2.Input voltage of led surface panel light is AC86-AC265V, so pls make sure power off when installation to prevent electric shock.
3. When the temperature of led surface panel light is too high,Over-temperature control circuitry activates, Output will be cut off,and the lamp will light off for a few minutes then light again.
Warrenty of led surface panel light:
Our company's products(not only led surface panel light) are used in constant current power supply, the whole lamp warranty for three years, one month replacement. (jierlight led surface panel light & panel light led )
Remark:The warranty of led surface panel light on the base of right storing way,right installing way,right using way,right maintaining way.During the warranty time,we can choose repairing,replacing parts or replacing the whole products according the detail information.And we'll charge the customers some material fee and labor cost if led surface panel light out of our warranty time. (jierlight copy led surface panel light & panel light led)
Trade items of led surface panel light & panel light led:
1.Payment terms: T/T 30% deposit after led surface panel light order confirmed, the balance 70% to be paid before delivery,Or Western Union and Paypal for small amount . (Copy right of led surface panel light)
2.Delivery time: For sample order:3-5 days; 100~500pcs: 5-6 days,500~2000pcs:around 7 days
3.Shipping Method :We ship led surface panel light by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air which takes about one week to arrive , or by sea which takes about one month to arrive, depending on your actual requirements.
4.Shipping port: shenzhen , China. (Copy right of led surface panel light)
5.Discounts are offered based on order quantities.
Application of led surface panel light & panel light led :

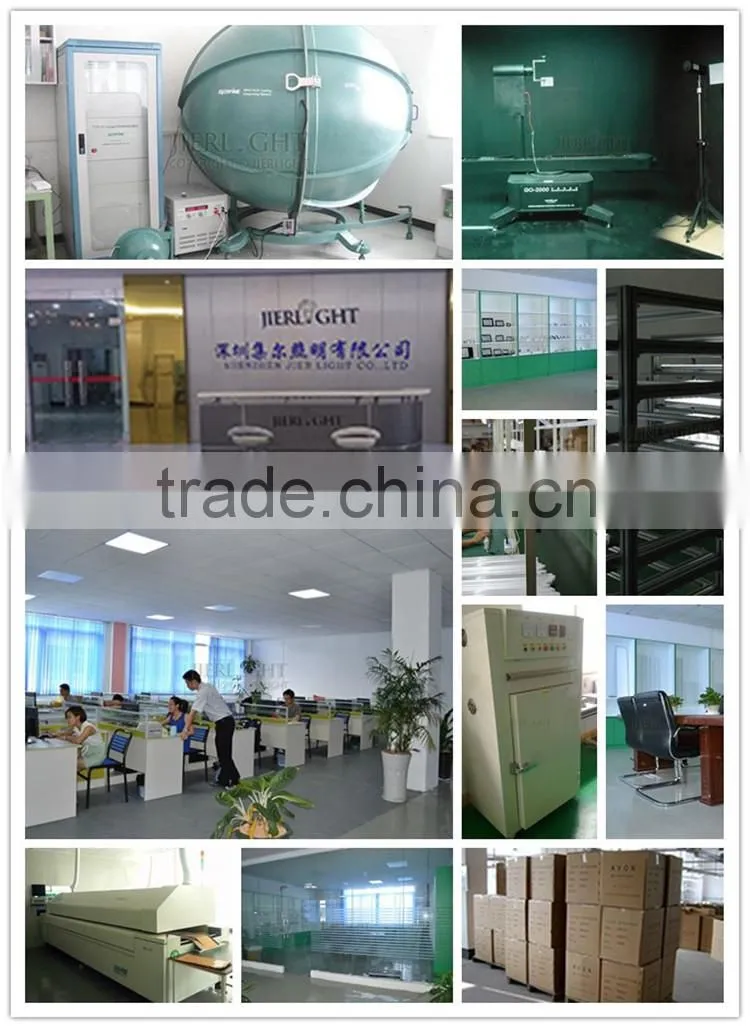

Company view:
3years warrenty 12w led surface panel light,surface mounted led panel light
