high brightness white surface round panel light, led ceiling panel light
PARAMETER OF LED CEILING PANEL LIGHT:
| Name | led ceiling panel light |
| Power | 12w |
| Voltage | AC85-265V |
| Light efficiency | 80-90lm/w |
| CRI | 85 |
| Pf | 0.95 |
| CCT | 2800-3500k,4000-4500k,5500-6500k |
| Led qty | 60pcs |
| Led type | SMD2835 |
| Beam angle | 110° |
| Material | Aluminum alloy and PC |
| Optional PC cover | Forsted |
| Size |
Ø175*12mm (6inch) , Ø150*12mm(cutout) |
| Surface temperature | 42℃-45℃ |
| Ambient temperature | -20℃-45℃ |
FEATURES OF LED CEILING PANEL LIGHT :
1.High safety: the required voltage, current smaller, less heat, no safety problems can be used for mining and other dangerous places.
2.High efficiency and less consumption :70-80% energy-saving than CFL lamp.
3.Long life span: up to 50,000hours
4.Reliable and durable: led ceiling panel light does not contain easily-broken components,such as tungsten filament,glass, etc.
5.Environment-friendly:the wasted materials of led ceiling panel light can be recycled, with no radial intenerence,no Hg&Pb pollution.
6.Short response time,No flicker,no noise.
7.We recommend led ceiling panel light to you not only the best price but also the very good quality we sure that you can`t find same price at this quality level.

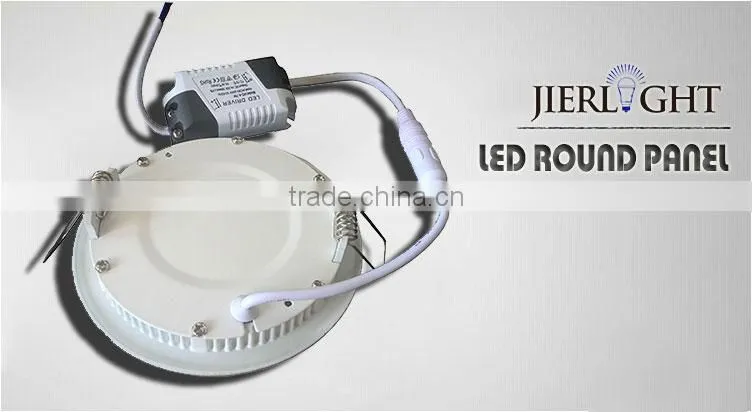

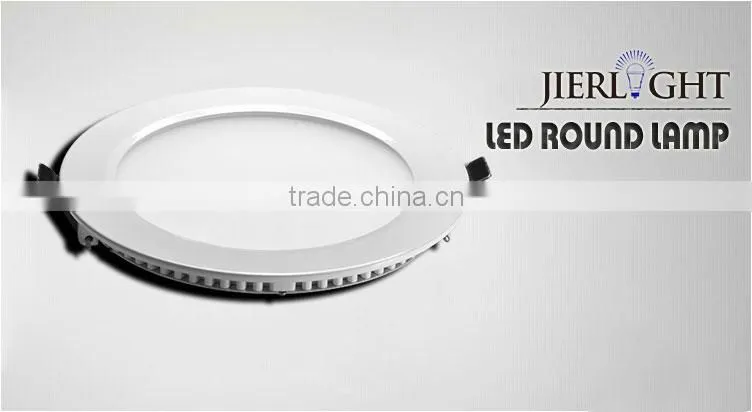

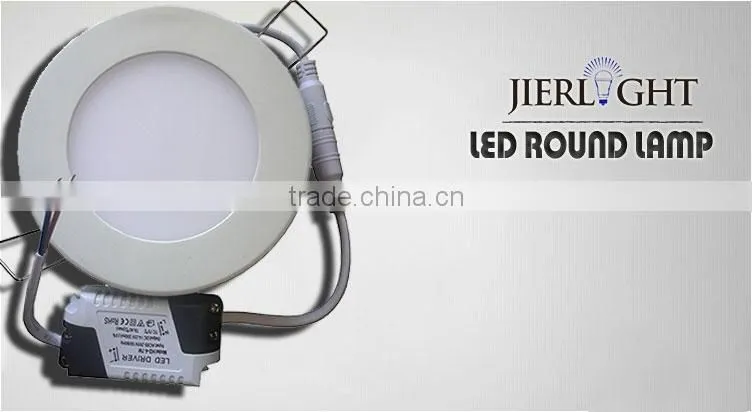

PRODUCT PHOTO OF LED CEILING PANEL LIGHT :

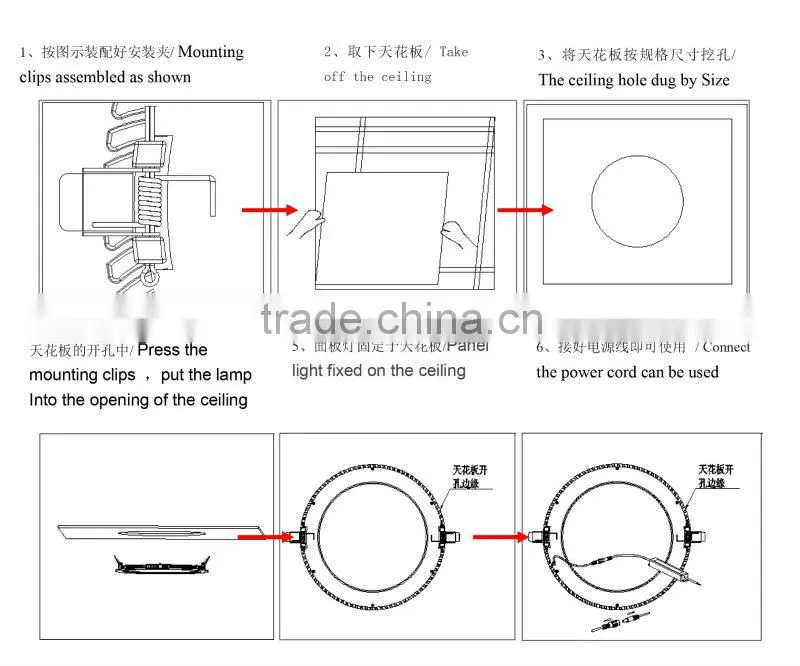

INSTALLATION OF LED CEILING PANEL LIGHT :
Warning:
1.Only qualified person should perform led ceiling panel light installation
2.Input voltage of led ceiling panel light is AC86-AC265V, so pls make sure power off when installation to prevent electric shock.
3. When the temperature of led ceiling panel light s too high,Over-temperature control circuitry activates, Output will be cut off,and the lamp will light off for a few minutes then light again.
OTHER LED CEILING PANEL LIGHT :
| CODE | LED QTY | LED TYPE | RATE POWER | CCT | LIGHT EFFICIENCY | SIZE | PF | IN.VOL | CRI | WARRENTY | CERTS |
| JL-PL-0509-GR | 30 PCS | SMD2835 | 6w |
2800-6500K | 500±100LM |
ø120*12mm (4inch), ø100*12mm (cutout) |
≥0.90 | AC85-265V | >80 | 3YEARS |
CE,RHSO, TUV,UL,SAA |
| PL-3625-G | 45 PCS | SMD2835 | 9w | 2800-6500K | 750±100LM |
Ø145*12mm (5inch), Ø128*12mm (cutout) |
≥0.90 | AC85-265V | >80 | 3YEARS |
CE,RHSO, TUV,UL,SAA |
| JL-PL-0612-GR | 60 PCS | SMD2835 | 12W | 2800-6500K | 950±100lm |
Ø175*12mm (6inch), Ø150*12mm (cutout) |
≥0.90 | AC85-265V | >80 | 3YEARS |
CE,RHSO, TUV,UL,SAA |
| JL-PL-0818-GR | 90 PCS | SMD2835 | 18w | 2800-6500K | 1600±100LM |
Ø225*12mm, Ø200*12mm (cutout) |
≥0.90 | AC85-265V | >80 | 3YEARS |
CE,RHSO, TUV,UL,SAA |
WARRENTY OF LED CEILING PANEL LIGHT :
Our company's products(not only led ceiling panel light ) are used in constant current power supply, the whole lamp warranty for three years, one month replacement
Remark:The warranty of led ceiling panel light on the base of right storing way,right installing way,right using way,right maintaining way.During the warranty time,we can choose repairing,replacing parts or replacing the whole products according the detail information.And we'll charge the customers some material fee and labor cost if led ceiling panel light out of our warranty time. (
TRADE TERMS OF LED CEILING PANEL LIGHT :
1.Payment terms: T/T 30% deposit after order confirmed, the balance 70% to be paid before delivery. Or Western Union and Paypal for small amount .
2.Delivery time: For sample orde:3-5 days; for 100~500pcs: 5-6 days, 500~1000pcs:7 days
3.Shipping Method :We ship led ceiling panel light by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air which takes about one week to arrive , or by sea which takes about one month to arrive, depending on your actual requirements. .
4.Shipping port: shenzhen , China
5.Discounts are offered based on order quantities of led ceiling panel light.

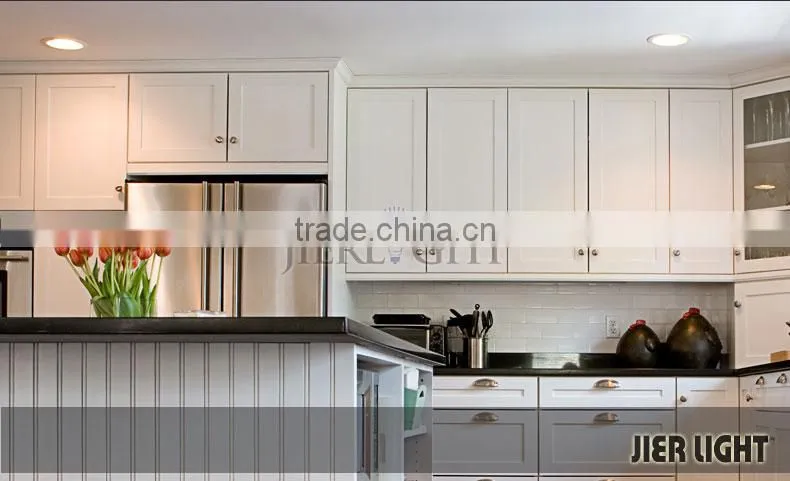

APPLICATION OF LED CEILING PANEL LIGHT :
high brightness white surface round panel light, led ceiling panel light
high brightness white surface round panel light, led ceiling panel light | high brightness white surface round panel light, led ceiling panel light | high brightness white surface round panel light, led ceiling panel light | high brightness white surface round panel light, led ceiling panel light
