Aluminum Alloy Frame Lithium Battery Light Integrated Solar Led Street Light

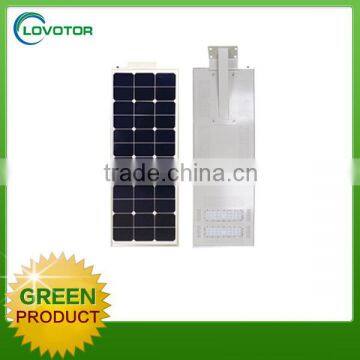

Aluminum Alloy Frame Lithium Battery Light Integrated Solar Led Street Light photo-1
Aluminum Alloy Frame Lithium Battery Light Integrated Solar Led Street Light photo-2
Aluminum Alloy Frame Lithium Battery Light Integrated Solar Led Street Light photo-3

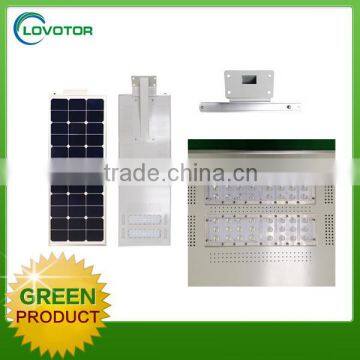

Aluminum Alloy Frame Lithium Battery Light Integrated Solar Led Street Light photo-4
US$ 355 - 408 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux
Input Voltage(V):
12V
Lamp Power(W):
40
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Bridgelux
Input Voltage(V) 12V
Lamp Power(W) 40
Lamp Luminous Flux(lm) 3800-4400
Lamp Luminous Efficiency(lm/w) 95
Color Temperature(CCT) Cool White
Working Temperature(℃) -30, +60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP65
Warranty(Year) 3
Place of Origin Guangdong, China
Brand Name Lovotor all in one solar street light
Model Number LY-40WR04
Product Details

Integrated solar led street light advantages

* Integrated design
* 40W~60W lamp adopts Bridgelux LED
* 95-110lm/W
* 10W~60W with high efficiency SunPower solar panel
* 3W~30W with PIR motion sensor
* Multi-function Intelligent controller
* High quality LiFePO4 battery
* Professional heat dissipation design
* Professional waterproof design
* Easy installation, save labor cost
* Small package, save shipping cost
* 3 years warranty, worry-free sale

Product Introduction

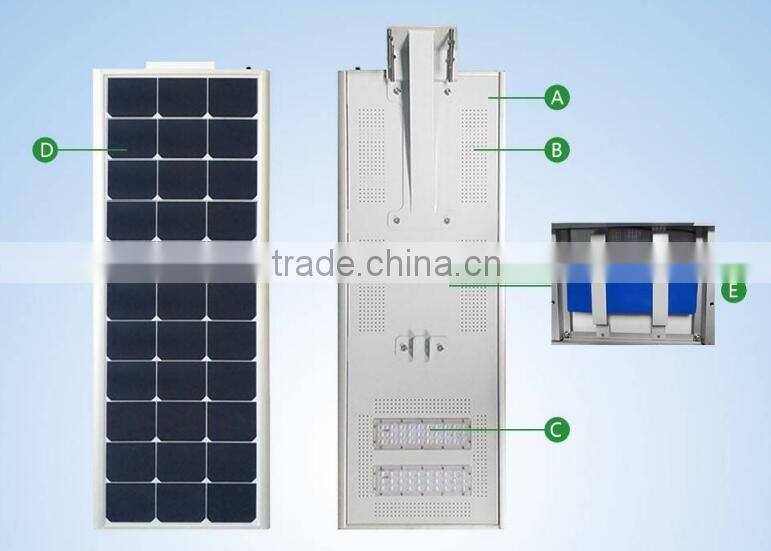

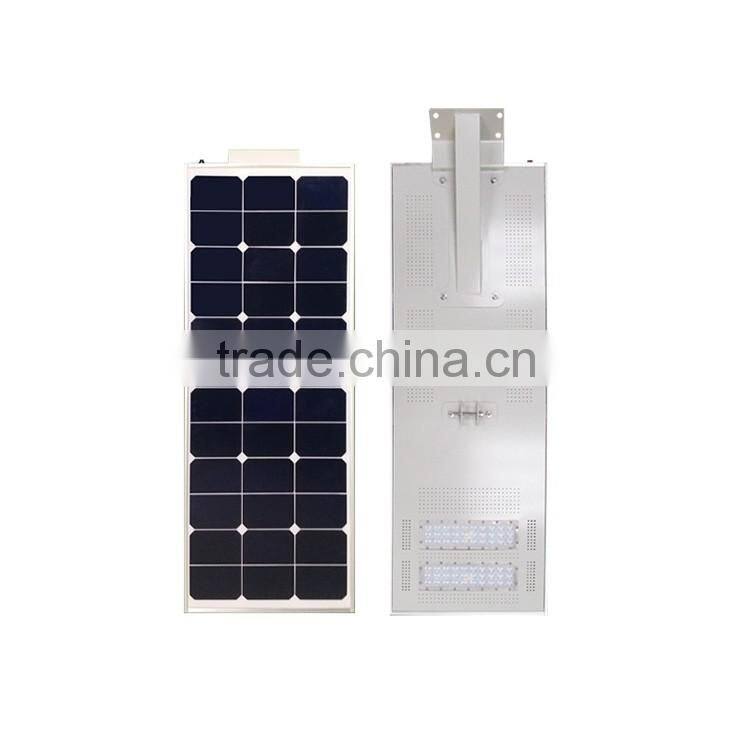

40W integrated solar led street light components

A. Aluminum extrusions, preferably aircraft-grade 6063 profile, durable, compression and strong, anti-oxidation;
B. Vents, so that equipment spares normal operation in high temperature conditions, higher life expectancy;

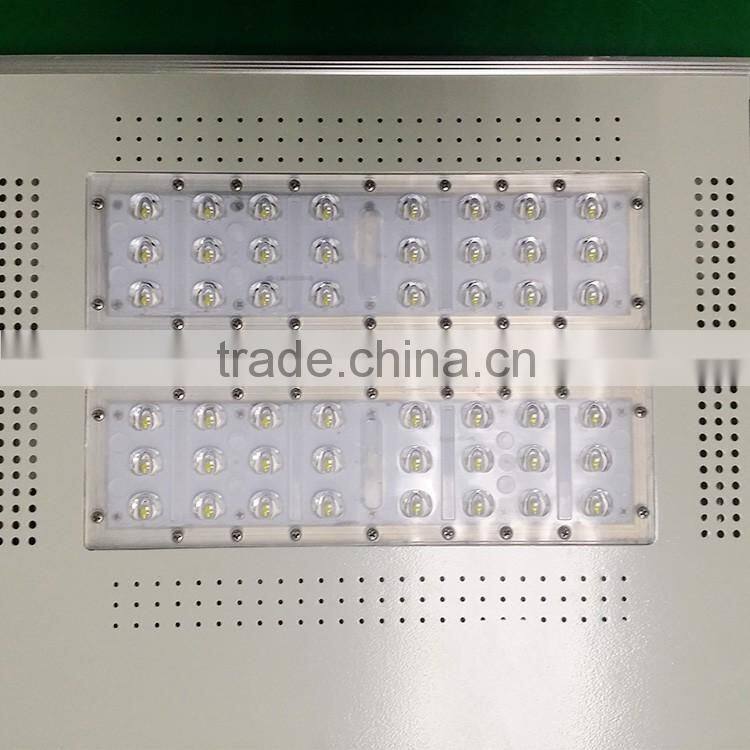

C. Bridgelux beads coupled with high optical lens to get optimal light efficiency;
D. SunPower imported solar cells, up to 22% conversion efficiency, and 25 years of life for panels;
E. Preferably LiFePO4 battery with a higher and more stable life cycle, better than the ternary batteries.

LY-40WR04 Parameters
Name
Specification
Name
Specification
Solar panel
80W SunPower solar cells
Lamp shell
Aluminum alloy 6063
LED
40W, 3800-4400lm, 5000-6000K
LED chip
Epistar chip, 50000hrs lifespan
Battery
12.8V/36Ah LiFePO4
Back up time
3-5 days
Beam Angle
120°
Charge time
7-8 hours
Mounting height
6-9m
Installation space
15-25m
Warranty
3 years
Product dimension
1135*453*154mm, 23kgs N.W.

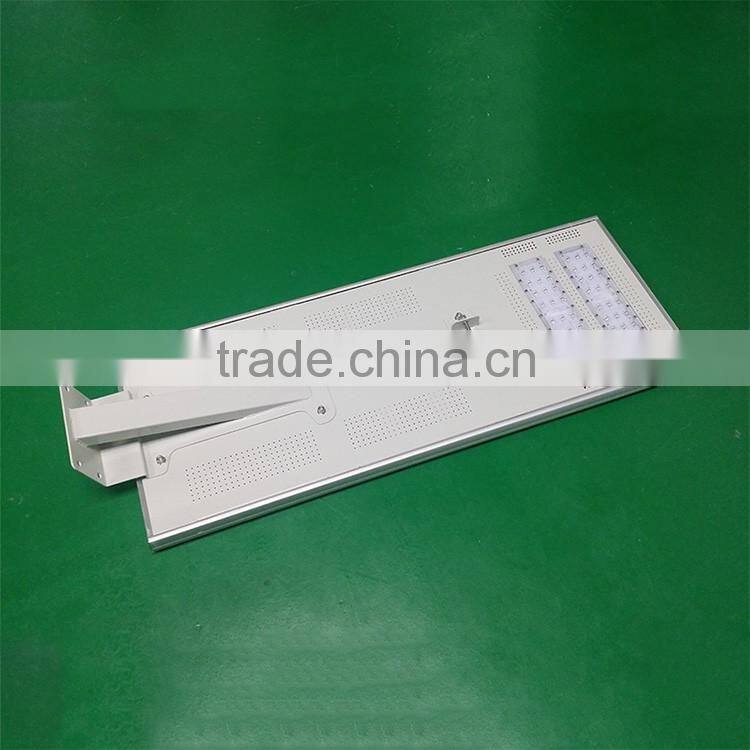

Product Details Show

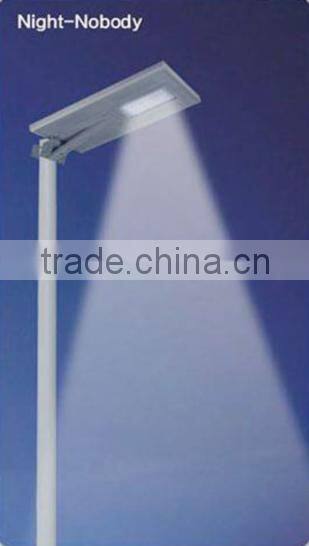

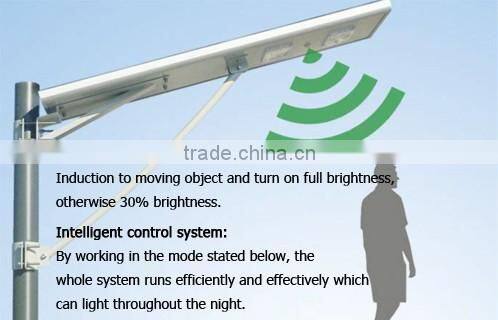

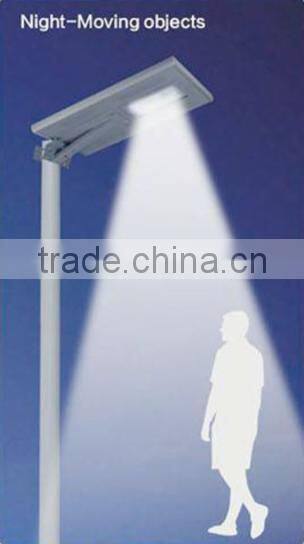

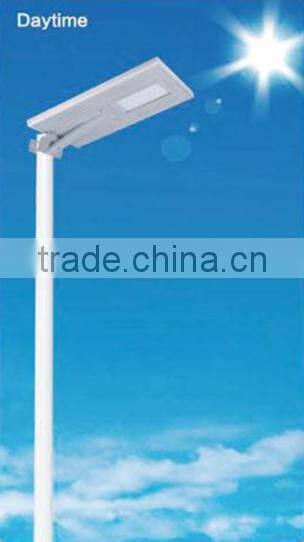

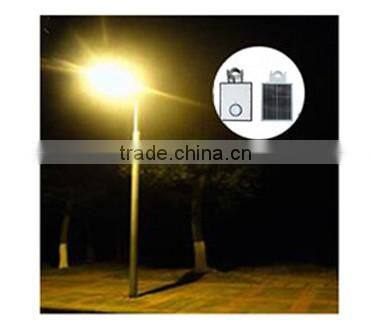

Aluminum alloy solar led street light control system

Auto off.


30% power lighting.


Full power lighting.

Why Choose Us

About us

1, We import solar cells from Germany, Italy, Korea etc. directly. For solar street light, we adopt Germany Sunpower high efficiency solar cells.

LED

2, We adopt the famous led brand Bridgelux led chips, the color temperature 5000-6000k cool while, it is much brighter and durable than original led.

Service

3, We provide 1 year warranty for the whole solar led street light, and in fact, it's have much longer lifespan than 3 years.

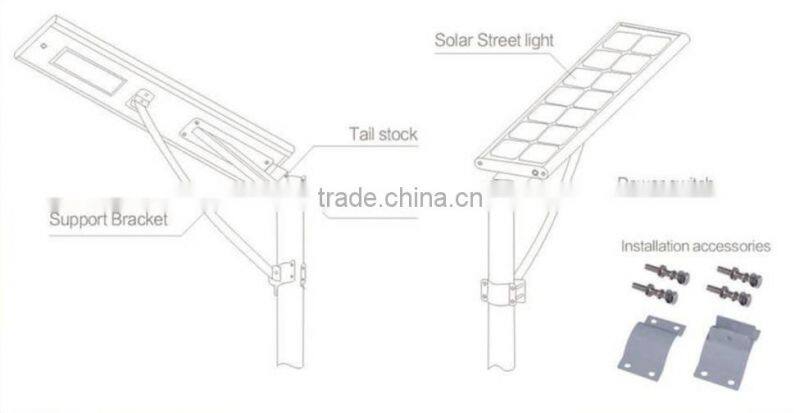

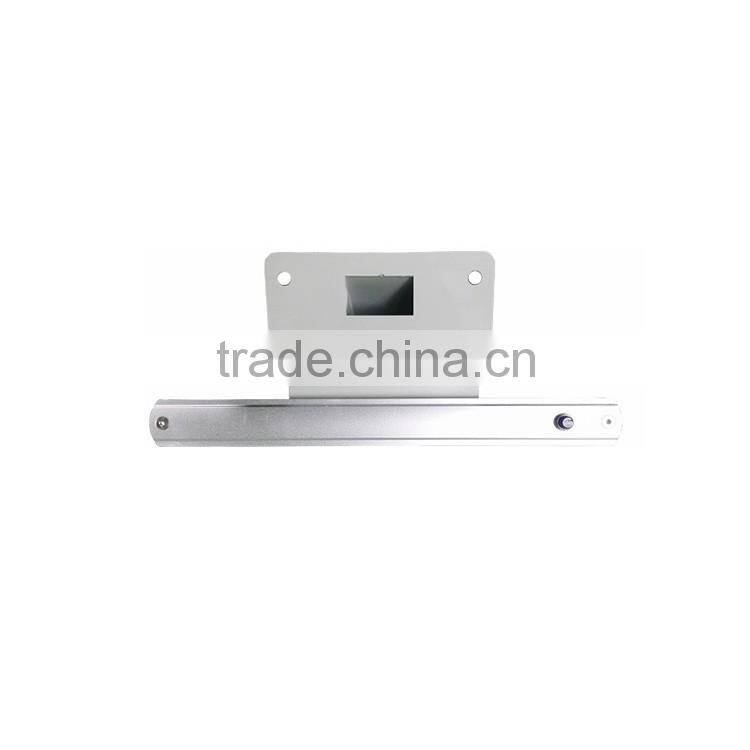

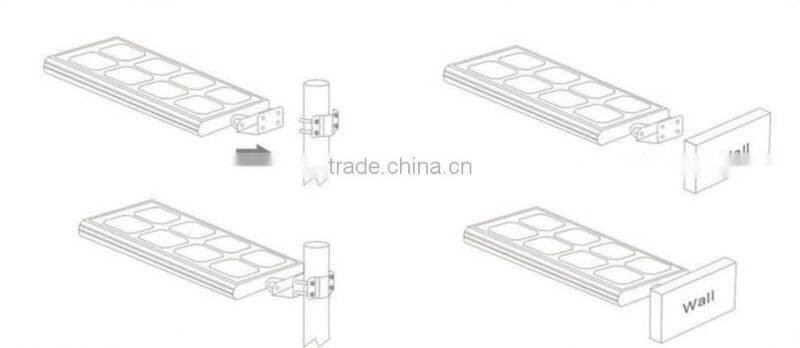

Installation

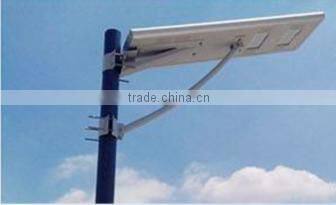

Installed on pole(25W ~ 60W).

Installed on wall(3W ~ 20W).

Product Packing

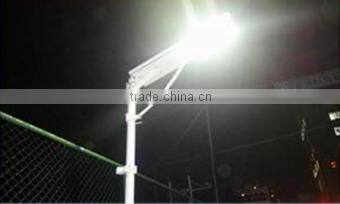

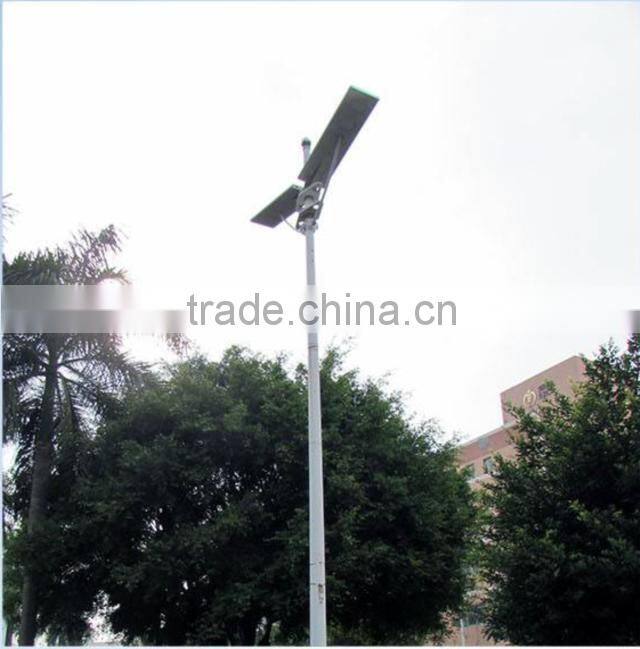

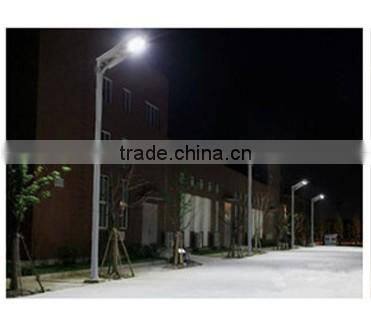

Aluminum integrated solar led street light application pictures.

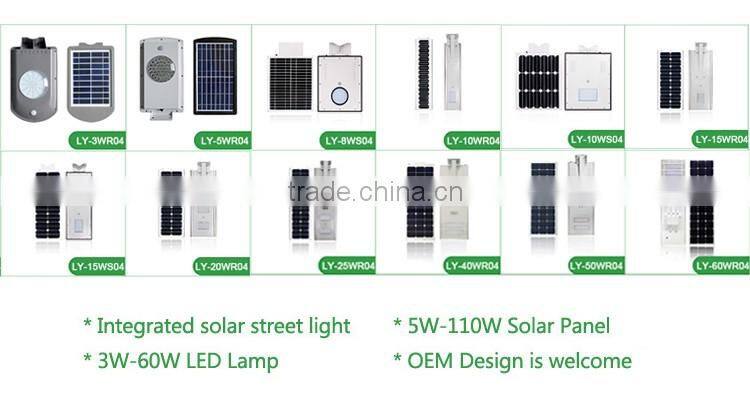

All models
