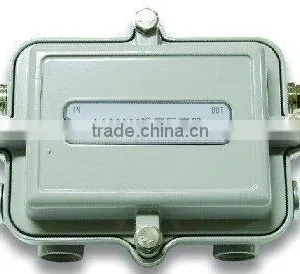

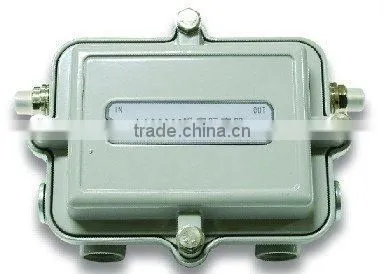

NIS2000 RFOG Technic Noise Switching

Specifications

NIS2000 RFOG noise switching
Adopts time-division technology(TDM) as same as CMTS
Reduce return accumulated noise
Burst mode

 Summarize

   NIS2000 noise isolator adapts to advanced HFC network high-speed data services, effectively control over the return noise convergence,improve the network reliability. Adopt the wild-type metal shielding housing, can be added on the node, bi-directional amplifier’s ports, or the floor, directly fed from the uplink port to work. It adopts time-division control technology(TDM) as same as CMTS,use “burst” mode to “on” or “off” simultaneously with CM return signal, so that allowing only one NIS2000 port to communicate with CMTS head-end at any given time, greatly improved the intrusive noise.



Features

·Support the common HFC set-top box, CM and head-end equipment

·Transparent return channel (protocol and modulation in any manner)

·Convenient power supply(directly feed AC60V from the uplink port,also can feed downlink)

·Reduce the noise convergence

·Compatible with DAVIC, DOCSIS standard



Diagram



Specifications

NO.	Item	Condition	Unit	Description	Remark
Downlink
1	Bandwidth	Default	MHz	87~1000	customized
2	Flatness		dB	±0.75
3	Insertion Loss	At the worst condition	dB	1.5
4	RF Return Loss	At the worst condition	dB	-16
Return Channel
5	Bandwidth	At the worst condition	MHz	25~65	customized
6	Flatness	At the worst condition	dB	±0.75
7	Insertion Loss	At the worst condition	dB	3.5
8	RF Retuen Loss	At the worst condition	dB	-16
9	Operating Mode			Burst Mode
10	Switching Threshold	Default	dBuV	65	customized
Power and Environmental
11	Operating Temperature			- 40~+60
12	Operating Humidity	Non-condensing		5%~95%
13	Voltage		V	AC 60
14	Power Consumption	Max	W	0.1
15	Surge Protection		KV	6
