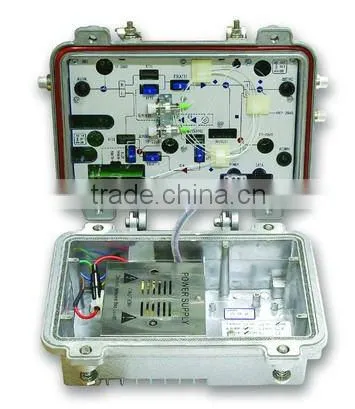

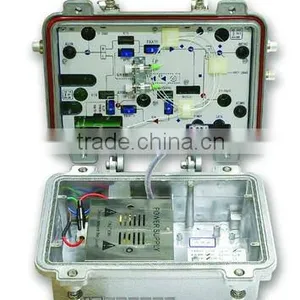

Help CenterTON6800H II High Outputs Optical Node
Related Products
Specifications
2 high level outletsLED display
112dBuV output at single port
FP,DFB,CWDM,RFoG return lasers are available
SNMP transponder
Feature
- Structural design flexibly, application widely: forward optical receiver, reverse optical transmitter or reverse RFoG;
- Perfect surge suppression circuitry, improved the anti-lightning strike and the prevention of lightning surge shocks;
- Input stage adopt imported low-noise GaAs amplifier, output stage adopt imported CATV high-performance, high reliability amplify module,greatly improved the C/N and non-linear distortion characteristics while significantly reducing the power consumption;
- Rigorous reliability test,MTBF >100,000 hours;
- Forward optic AGC function, input power at the range -6dBm~+16dBm,the output level change within ±1dB;
- RF output level fixed-adjustable, slope adjustable;1~2 output ports optional,split/tap optional;
- Reserve national standard network management interface Class II transponder,easy for field upgrade directly.
Summarize
TON6800HII optical receiver can be used for CATV network, digital network and telecommunication network. It especially suitable for the FTTx network which the fiber extended to the building, the output ports covered subscribers.
TON6800H II input receive optical power range is +1dBm~-6dBm,each RF output level is up to 108dBuV for dual outlets;when the receive optical power is -6dBm,C/N>46dB.
~220V or ~60V power supply optional,the high-performance conversion circuit enable to turn them into +24V,+5V DC power to supply the optical receiver internal device.

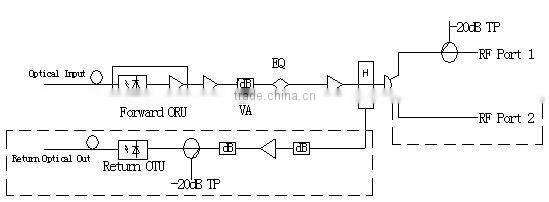

Diagram
Specifications
|
Item |
Unit |
Forward |
Return |
|
Optic |
Optical wavelength |
nm |
1200~1600 |
1310±20 |
|
Optical input power |
dBm |
-6~+1 |
— |
||
Optical output power |
dBm |
— |
≥0 |
||
Optical return loss |
dB |
≥40 |
— |
||
Input power indicate |
dBm |
1:1 |
OP test point:1V/mW |
||
Return laser type |
|
— |
DFB/FP option |
||
Optical connector |
|
FC/APC or SC/APC |
|||
RF |
Bandwidth |
MHz |
87(54)~860(750) |
5~65(42) |
|
|
Standard output level (Input power@-6~+1dBm) |
dBuV |
≥108 |
— |
||
Link flatness |
dB |
±1.5 |
|||
RF output ports number |
pcs |
1~2 |
— |
||
RF test point |
dB |
-20±1.0 |
|||
Impedence |
ohm |
75 |
|||
Return loss |
dB |
≥16(87~860MHz) |
≥16 |
||
Link |
C/N |
dB |
≥51.0 |
— |
|
CTB |
dBc |
≥65.0 |
— |
||
CSO |
dBc |
≥61.0 |
— |
||
NPR Dynamic Range |
dB |
— |
15@NPR≥30 |
||
|
General |
Dimension |
mm |
250×210×130 |
||
Voltage |
Vac |
220 or 60 |
|||
Power Consumption |
VA |
<18 |
|||
Operating Temperature |
°C |
-25~+55 |
|||
Storage Temperature |
°C |
-25~+65 |
|||
Weight |
Kg |
3.2 |
|||
