Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > TON6800K 1G AGC Optical Node

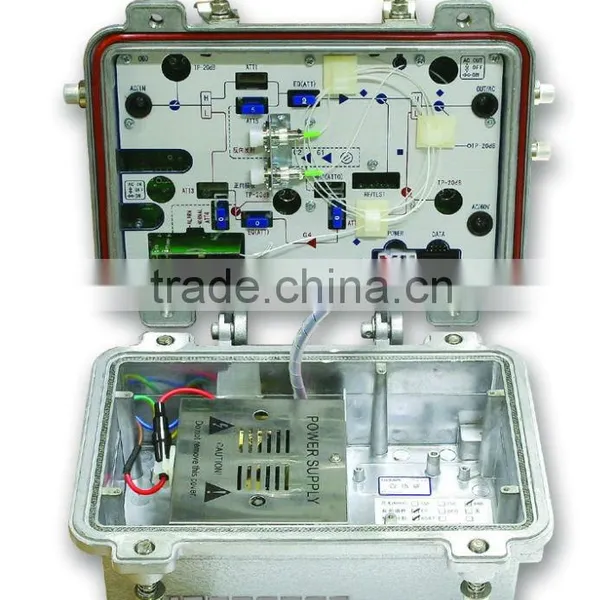

TON6800K 1G AGC Optical Node

Name: TON6800K 1G AGC Optical Node
Brand: Lootom
SKU: 112122229
Availability: InStock

TON6800K 1G AGC Optical Node thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Lootom

Model Number:

TON6800K

Contact Supplier Request Quote Chat Now

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Lootom

Model Number TON6800K

Specifications

>=108dBuV output for single output
Optic AGC unit
up to 1G bandwidth
RFPON,FP,DFB,CWDM return laser are optional

Features

· Flexible combination, wide application: one-way amplifier, one-way optical receiver, bi-directional optical node, bi-directional amplifier, select several ways on-site

· Downstream bandwidth is up to 1000MHz, with optical AGC function, when receives at +1~ -6dBm, single port RF output level will up to 108dBuV, level changes no more than ±0.5dB

· RF output level, slope fixed adjustable, all adopt attenuation inserts forms to adjust

· "Burst mode" component can be used (optional) (RFoG)

· Comply with national standard network management design, II transponder smoothly install and upgrade on-site

· Local RF test port and optical output power test port: received optical power digital control, easy to install and debug

· Complete surge suppression circuitry, improved resistance to the lighting strike and surge prevention capacity, further improved the reliability

Diagram

Specifications

Class	Item		Unit	Forward Path	Reverse Path(conventional type)
Parameter	Operating Wavelength		nm	1200~1600	1310+20
	Optical Input Power Range		dBm	-8.0~+2.0
	Optical Output Power		dBm		≥0dBm
	Optical AGC Control Range		dBm	-6~+1
	Optical Return Loss		dB	≥40
	Received Optical Power Digital Display		dBm	1:1	OP Test Port:1V/mW
	Reverse Laser Type				DFB/FP optional
	Fiber Connector Type			FC/APC or SC/APC
RF	Frequency Range		MHz	87(54)~860(1000)	5~65(42)
	Nominal Output Level		dBuV	≥108
	Flatness		dB	±1.5
	Amplifier Gain		dB	≥28	≥24
	RF Output Port		piece	1
	RF Level Test Port		dB	-20±1.0
	Nominal RF Input/ Output Impedance		Omh	75
	RF Input/ Output Return Loss		dB	≥16	≥16
	Link Index	C/N	dB	≥47.0(remark)
		CTB	dBc	≥65.0(remark)
		CSO	dBc	≥65.0(remark)
		NPR Dynamic Range	dB		15@NPR≥30dB
General	Dimension		mm	490×280×190
	Voltage		Vac	220 or 60
	Power Consumption		VA	<15
	Operating Temperature		°C	-25~+55
	Storage Temperature		°C	-25~+65
	Weight		Kg	2.8
Remark : Measured by standard laser transmitter, the circuit is formed with 10km fiber and optical attenuator, optical received power is -6dBm. Frequency ranges at 550MHz, according to Chinese standard configure 59 PLA-D television channels. 33 QAM64 digital channels are arranged at 550-860MHz bandwidth, and the level is lower 6dB than analogue carrier. RF output signal slope is 9dB (860MHz), RF output signal level is 106dBuV.
