TFT1550Ha1550nm Direct Modulation Optical Transmitter

TFT1550Ha1550nm Direct Modulation Optical Transmitter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Lootom
Model Number:
TFT1550Ha
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Lootom
Model Number TFT1550Ha

Specifications

Direct modulation optical transmitter
1 U 19inch housing
AGC function
Reserve network management function
Transmit 20km

Features

  • The transmitting modules of this machine adopt the imported DFB laser named SEI and so on.
  • The internal RF driving amplifier and controlling circuit of this machine can ensure the best C/N. The perfect and stable circuit of optic power output and controlling circuit of thermoelectric refrigeration device of laser module assure the user the best quality and stable working for a long time.
  • The internal micro-processor software has many functions such as laser monitoring, number display, trouble alarm and on-line management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.
  • The RS-232 standard connector makes it is possible to manage on line and monitor in another place.
  • The machine adopts 19standard shelf and it can work with the voltage from 110V to 254v

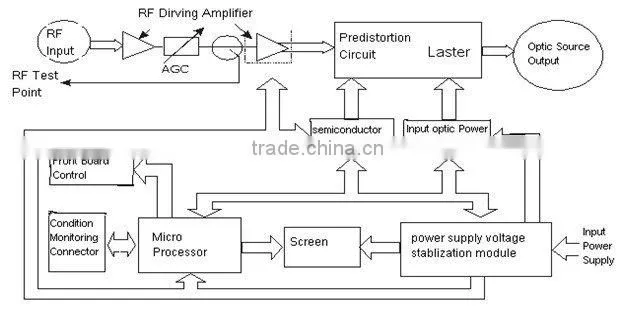

Diagram

TFT1550Ha1550nm Direct Modulation Optical Transmitter

Main Technical Parameters:

Type TOT1500N

04

06

10

Optic Power (mW)

2×4

2×6

2×10

Optic Power(dBm)

6.0

8.0

10.0

Optic Wavelength  (nm)

1550±10

Fiber Connector

FC/APCSC/APCSC/UPC (Selected by the Customer)

Working Bandwidth(MHz)

45~860

Channels

59

CNR      (dB)

51

CTB     (dBc)

≤-65

CSO     (dBc)

≤-60

RF Input Level(dBμV)



Not with pre-distortion

78±5

With pre-distortion

83±5

Band Unflatness

≤0.75

Power Loss(W)

≤30

Power Voltage(V)

220V(110~254)

Working Tem(°c)

0~45

Specification

19"×15"×1.75"
