Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Audio & Video Cable > TFA 1000 Headend RF Platform Amplifier Module

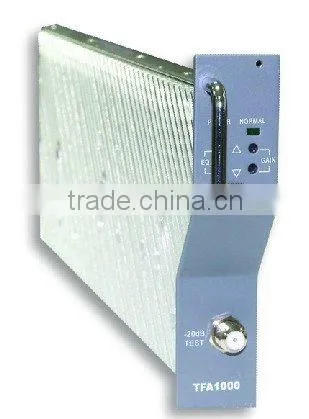

TFA 1000 Headend RF Platform Amplifier Module

Name: TFA 1000 Headend RF Platform Amplifier Module
Brand: Lootom
SKU: 112120987
Availability: InStock

TFA 1000 Headend RF Platform Amplifier Module thumbnail-1

TFA 1000 Headend RF Platform Amplifier Module photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Lootom

Model Number:

TFA1000

Place of Origin:

Jiangsu, China

Contact Supplier Request Quote Chat Now

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Lootom

Model Number TFA1000

Place of Origin Jiangsu, China

Specifications

Headend RF Platform Amplifier module
1.862MHz/1G bandwidth
2.3U structure
3.Output gain adjustable,0~10dB
4.15-27dBm gain

Summarize

TFA1000 headend RF amplifier is a high-performance, high-quality amplifier. It combines with TNE1000 optical platform rack, TPS1000 power to consist excellent performance forward RF transmission system. It amplifies the downlink RF signals. The amplifier module adopts radiator-style overall structure, high strength, excellent heat dissipation.

Features

Deploy GaAs amplify module at the output stage, excellent CTB, CSO performance while high level outputting
862MHz bandwidth, Display the working status by LCD, easy to operate
Module design, perfect shape and heat-dispassion performance
The gain is adjustable, easy to operate
Excellent heat dissipation to guarantee the long term working

Specifications

Item	Unit	Specification	Remark
Bandwidth	MHz	47~860/1000
Full Gain(min)	dB	18
Recommended Output Level	dBµV	98
RF Input Level	dBµV	80
Output Level Range	dB	0~ -10
Noise	dB	≤ 8	EQ is 0dBm
Slope	dB	0 ~ 15
Hum	dB	≥65
Input Return Loss	dB	≥16
Input Impedance	Ω	75
Flatness	dB	± 0.5
RF Test Point (± 1.0 dB)	dB	-20
CTB	dB	≥80	1
CSO	dB	≥80
XM	dB	≥75
Operating Temperature	° C	0~+50
Storage Temperature Range	° C	-25~ +65

Remark 1: 59 PAL-D analogue channels are loaded at 550MHz bandwidth, 33 QAM64 digital channels are loaded at 550-860MHz bandwidth, and the level is lower 6dB than analogue carrier.
